Mennekes Wall mounted inlets (IP44 / IP67)
Wall mounted inlets from Mennekes, rated 16–125 A at 110 V, 230 V, 400 V, 500 V, >50–500 V, protection IP44 / IP67, conforming to IEC 60309-2. 45 part numbers listed — supplied by Yash Enterprise, an authorized Mennekes distributor in Mumbai.
Key features
- Enclosure base with stamped recess for quick cutting out
- Cable entry also possible on the back side
All part numbers (45)
Ampere, poles, voltage and position for every variant in this range. Parts are supplied on request. We confirm availability and price within 24 hours.
- For hinged lids for retrofit see part no. 41482 and 41489.
- For a suitable watertight protective cover for 63 A see part no. 40434.
How the versions in this range differ
| Listed in the catalogue | Enclosure base with stamped recess for quick cutting out, cable entry also possible on the back side · IP4424 parts | For external fixing · IP445 parts | For internal or external fixing · IP442 parts | With hinged lid, for internal or external fixing · IP442 parts | Standard · IP6712 parts |
|---|---|---|---|---|---|
| For internal or external fixing | ● | ● | |||
| Cable entry also possible on the back side | ● | ||||
| Enclosure base with stamped recess for quick cutting out | ● | ||||
| For external fixing | ● | ||||
| With hinged lid | ● |
● = listed in the manufacturer catalogue for that version; a blank cell means it is not listed there — ask us if you need to confirm a feature. Rating and IP differences are shown in each heading and in the table below.
| Part no. | Ampere | Poles | Voltage | Position | Quote | |
|---|---|---|---|---|---|---|
| Enclosure base with stamped recess for quick cutting out, cable entry also possible on the back side · IP44 24 | ||||||
| 331 | 16 A | 3 | 110 V | 4h | |

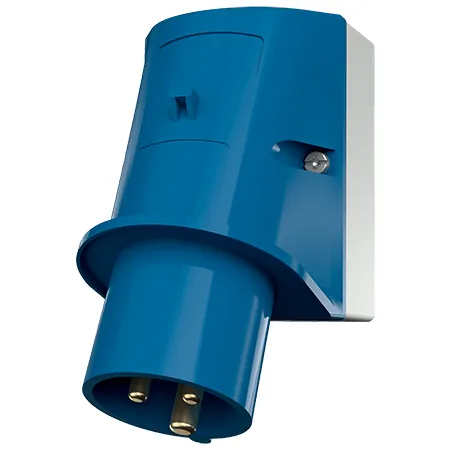

 | 332 | 16 A | 3 | 230 V | 6h | |

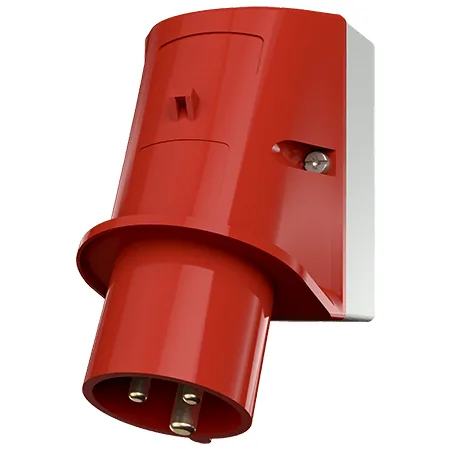

 | 333 | 16 A | 3 | 400 V | 9h | |

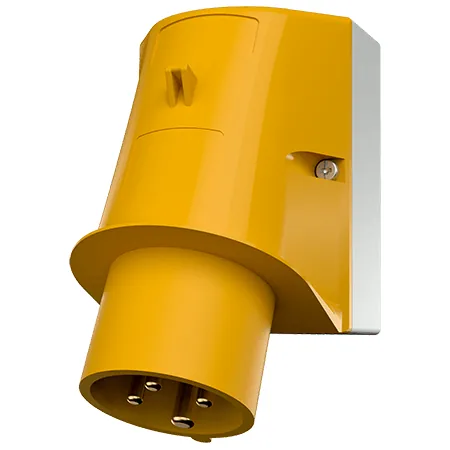

 | 334 | 16 A | 4 | 110 V | 4h | |
 | 335 | 16 A | 4 | 230 V | 9h | |
 | 336 | 16 A | 4 | 400 V | 6h | |
 | 337 | 16 A | 4 | 500 V | 7h | |
 | 921 | 16 A | 4 | >50–500 V · 100-300 Hz | 10h | |

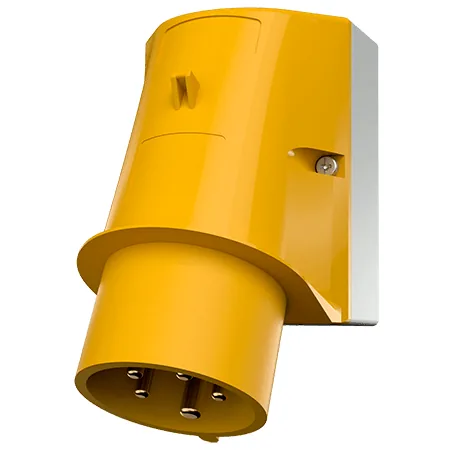

 | 340 | 16 A | 5 | 110 V | 4h | |
 | 341 | 16 A | 5 | 230 V | 9h | |
 | 342 | 16 A | 5 | 400 V | 6h | |

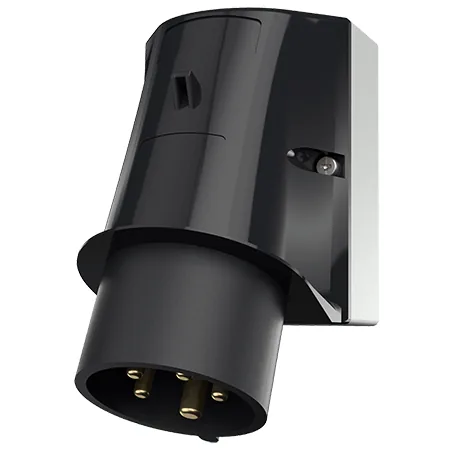

 | 2359 | 16 A | 5 | 500 V | 7h | |

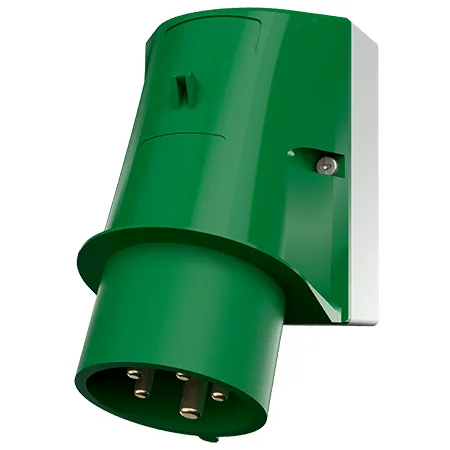

 | 2668 | 16 A | 5 | >50–500 V · 100-300 Hz | 10h | |
 | 2400 | 16 A | 5 | >50–500 V · 300-500 Hz | 2h | |

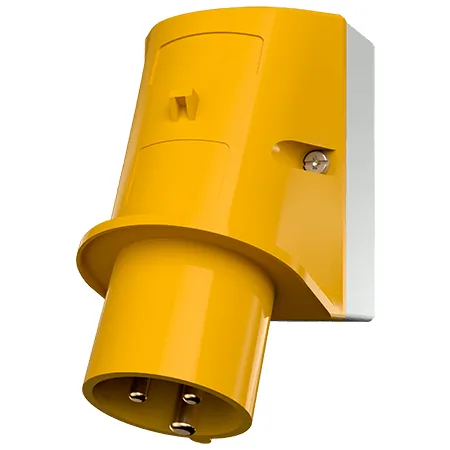

 | 343 | 32 A | 3 | 110 V | 4h | |
 | 344 | 32 A | 3 | 230 V | 6h | |
 | 345 | 32 A | 3 | 400 V | 9h | |
 | 347 | 32 A | 4 | 230 V | 9h | |

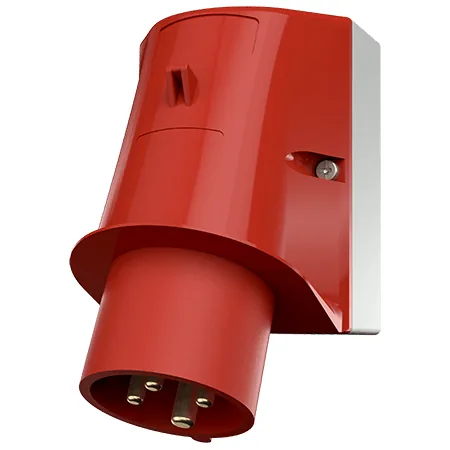

 | 348 | 32 A | 4 | 400 V | 6h | |

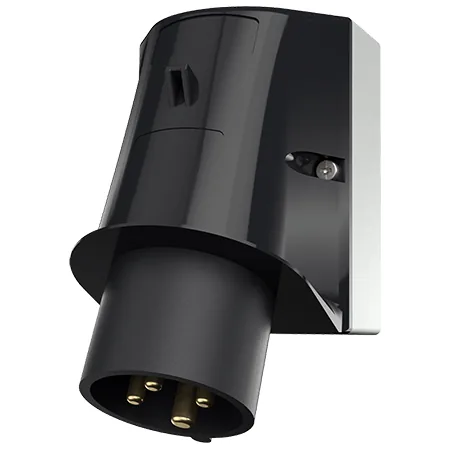

 | 349 | 32 A | 4 | 500 V | 7h | |
 | 352 | 32 A | 5 | 110 V | 4h | |
 | 353 | 32 A | 5 | 230 V | 9h | |

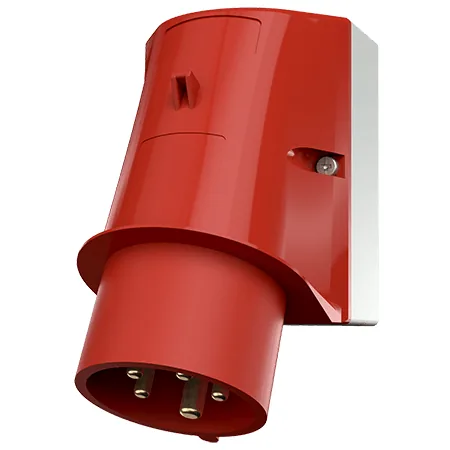

 | 354 | 32 A | 5 | 400 V | 6h | |
 | 2386 | 32 A | 5 | 500 V | 7h | |
| For external fixing · IP44 5 | ||||||
 | 800 | 16 A | 4 | 400 V | 6h | |
 | 801 | 16 A | 5 | 400 V | 6h | |

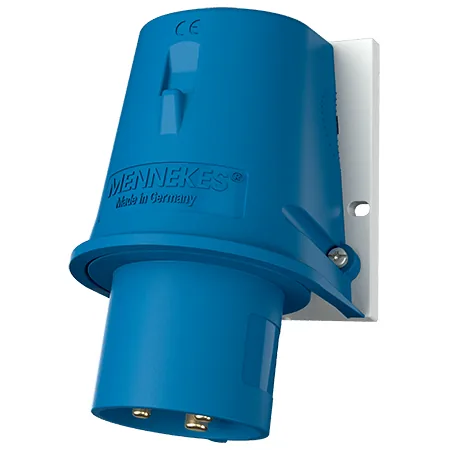

 | 802 | 32 A | 3 | 230 V | 6h | |

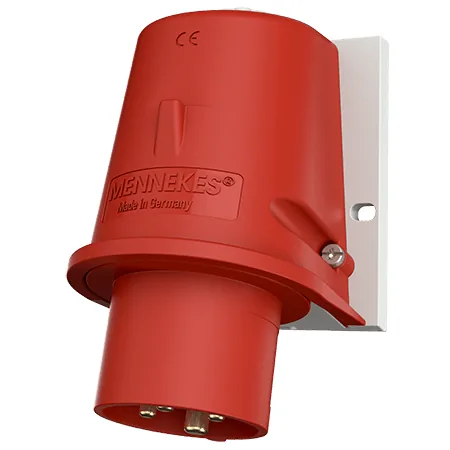

 | 803 | 32 A | 4 | 400 V | 6h | |

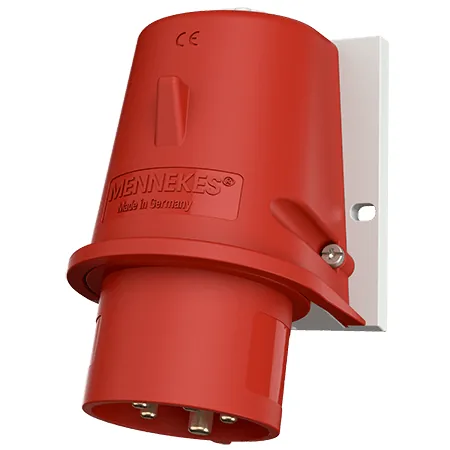

 | 804 | 32 A | 5 | 400 V | 6h | |
| For internal or external fixing · IP44 2 | ||||||

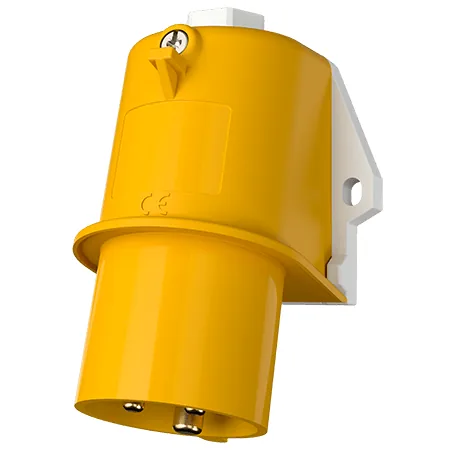

 | 843 | 16 A | 3 | 110 V | 4h | |

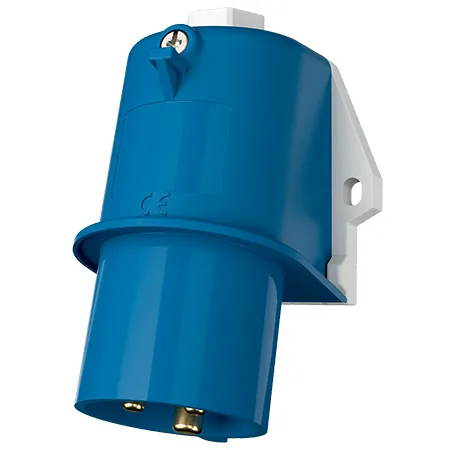

 | 844 | 16 A | 3 | 230 V | 6h | |
| With hinged lid, for internal or external fixing · IP44 2 | ||||||

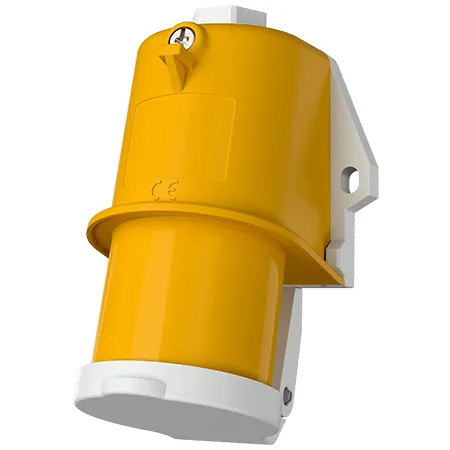

 | 846 | 16 A | 3 | 110 V | 4h | |

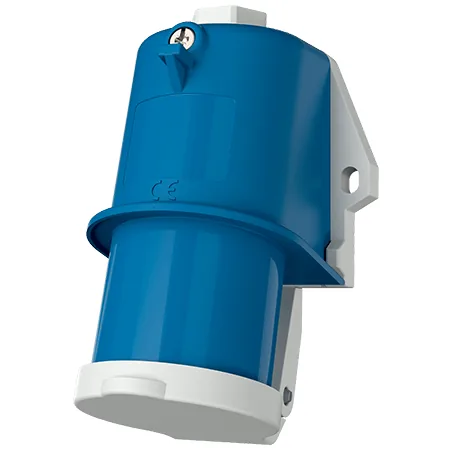

 | 847 | 16 A | 3 | 230 V | 6h | |
| Standard · IP67 12 | ||||||

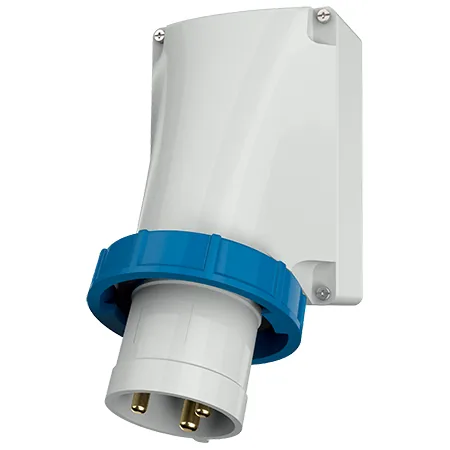

 | 1107 | 63 A | 3 | 230 V | 6h | |

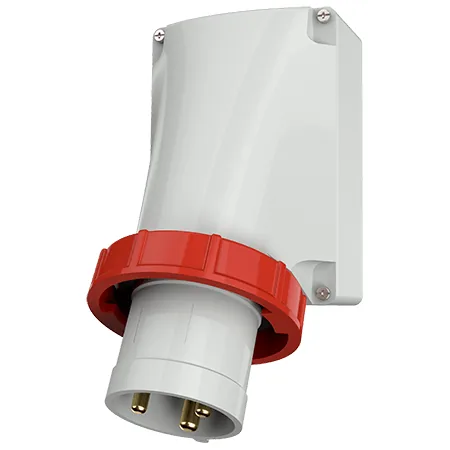

 | 1217 | 63 A | 3 | 400 V | 9h | |
 | 356 | 63 A | 4 | 230 V | 9h | |

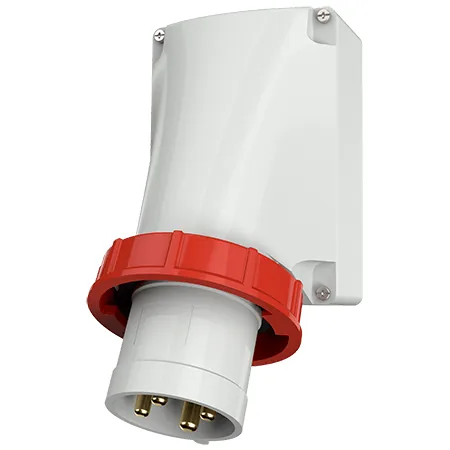

 | 357 | 63 A | 4 | 400 V | 6h | |
 | 358 | 63 A | 4 | 500 V | 7h | |
 | 360 | 63 A | 5 | 230 V | 9h | |

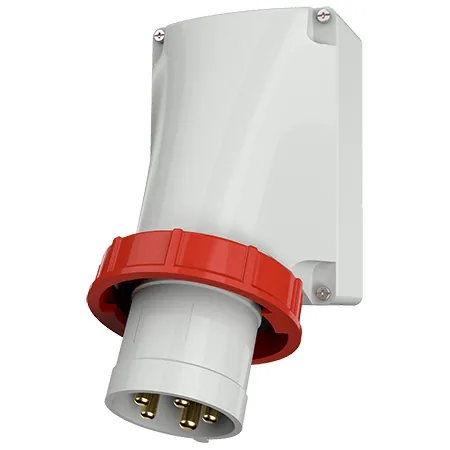

 | 361 | 63 A | 5 | 400 V | 6h | |

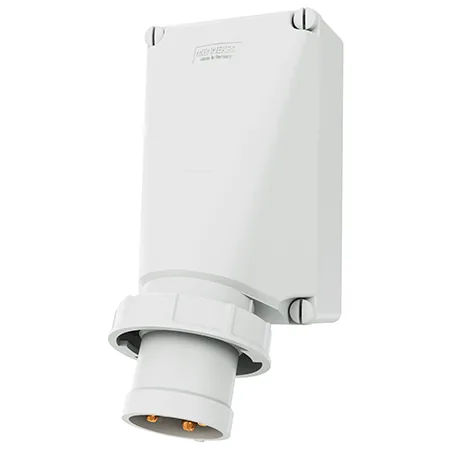

 | 363 | 125 A | 4 | 230 V | 9h | |
 | 364 | 125 A | 4 | 400 V | 6h | |
 | 365 | 125 A | 4 | 500 V | 7h | |
 | 367 | 125 A | 5 | 230 V | 9h | |

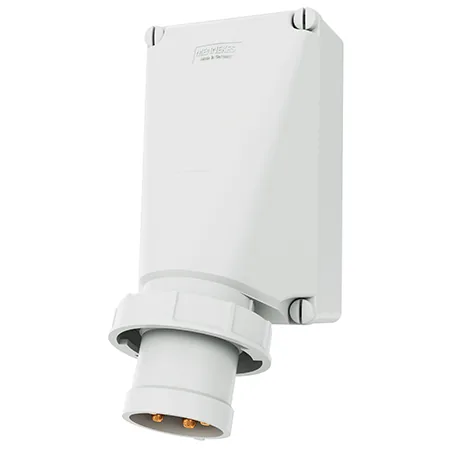

 | 368 | 125 A | 5 | 400 V | 6h | |
Not sure which part you need? Send us the equipment and rating on WhatsApp and we will recommend the exact part.
No part numbers match those filters.

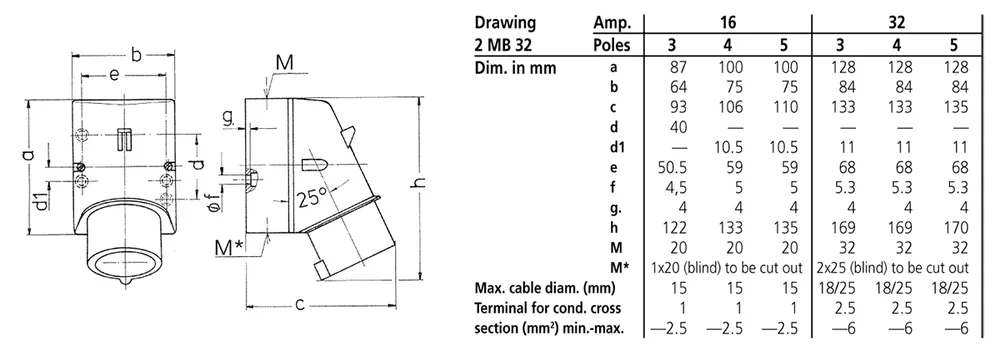

Dimensions
Common questions
What do the position and IP rating mean for Mennekes wall mounted inlets?
Position (the 'h' value) is the clock position of the keyway and earthing contact — a plug and receptacle only mate when their positions match, so quote the position along with the part number. IP44 / IP67 is the enclosure protection class (IEC 60529): the first digit covers solid objects and dust, the second covers water.
How do I order a Mennekes part from this range?
Pick the part number from the table (ampere, poles, voltage and position), then request a quotation. There is no minimum order — single pieces and project quantities are quoted the same way, and we confirm availability and price within 24 hours.
Are these genuine Mennekes products?
Yes. Yash Enterprise is an authorized Mennekes distributor; every part is sourced through the principal brand, with the manufacturer's standard warranty passed through.
