Mennekes Connectors — PowerTOP Plus (IP44 / IP67)
Connectors — PowerTOP Plus from Mennekes, rated 63–125 A at 230 V, 400 V, protection IP44 / IP67, conforming to IEC 60309-2. 3 part numbers listed — supplied by Yash Enterprise, an authorized Mennekes distributor in Mumbai.
Key features
- X-CONTACT
- Cable gland with sealing
- Strain relief and protection against kinking
- Screw terminals with frame terminals
- Highly heat resistant contact carrier
All part numbers (3)
Ampere, poles, voltage and position for every variant in this range. Parts are supplied on request. We confirm availability and price within 24 hours.
How the versions in this range differ
| Listed in the catalogue | Connector PowerTOP Plus, X-CONTACT, frame terminals · IP441 parts | Connector PowerTOP Plus, X-CONTACT, frame terminals · IP672 parts |
|---|---|---|
| Ambient temperature −25 °C to +40 °C | ● | |
| Conductor cross-section 25–50 mm2 | ● | |
| Frame terminals | ● |
● = listed in the manufacturer catalogue for that version; a blank cell means it is not listed there — ask us if you need to confirm a feature. Rating and IP differences are shown in each heading and in the table below.
| Part no. | Ampere | Poles | Voltage | Position | Quote | ||
|---|---|---|---|---|---|---|---|
| Connector PowerTOP Plus, X-CONTACT, frame terminals · IP44 1 | |||||||
| 3275 | 63 A | 4 | 400 V | 6h | ||
| Connector PowerTOP Plus, X-CONTACT, frame terminals · IP67 2 | |||||||

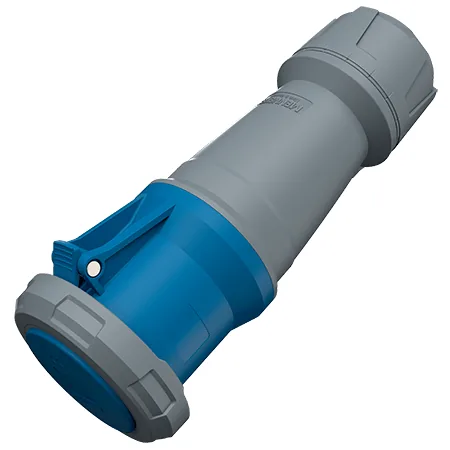

 | 3457 | 125 A | 3 | 230 V | 6h | ||

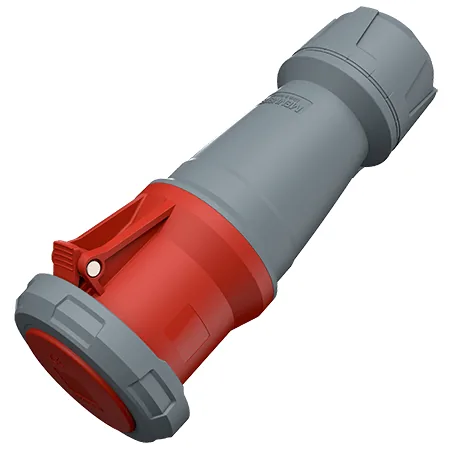

 | 3469 | 125 A | 4 | 400 V | 6h | ||
Not sure which part you need? Send us the equipment and rating on WhatsApp and we will recommend the exact part.
No part numbers match those filters.

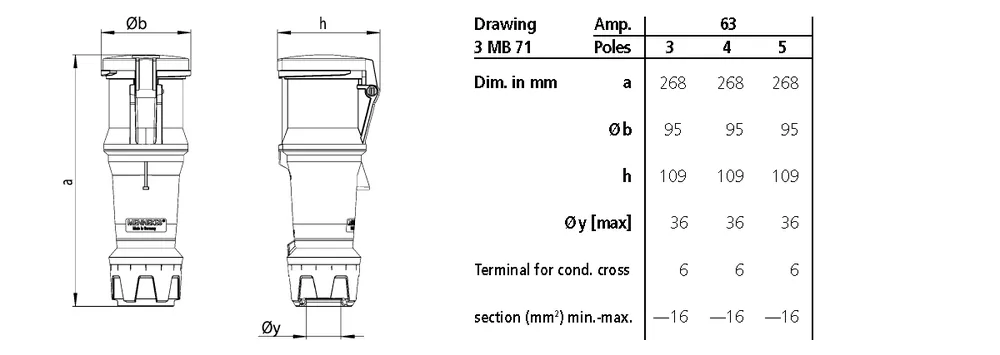

Dimensions
Common questions
What do the position and IP rating mean for Mennekes connectors — PowerTOP Plus?
Position (the 'h' value) is the clock position of the keyway and earthing contact — a plug and receptacle only mate when their positions match, so quote the position along with the part number. IP44 / IP67 is the enclosure protection class (IEC 60529): the first digit covers solid objects and dust, the second covers water.
How do I order a Mennekes part from this range?
Pick the part number from the table (ampere, poles, voltage and position), then request a quotation. There is no minimum order — single pieces and project quantities are quoted the same way, and we confirm availability and price within 24 hours.
Are these genuine Mennekes products?
Yes. Yash Enterprise is an authorized Mennekes distributor; every part is sourced through the principal brand, with the manufacturer's standard warranty passed through.
Related guides: IP ratings explained · Matching plugs and sockets · X-CONTACT explained · Choosing terminal technology
