Mennekes Connectors — PowerTOP Xtra (IP54 / IP67 / IP69)
Connectors — PowerTOP Xtra from Mennekes, rated 16–63 A at 110 V, 230 V, 400 V, 500 V, >50–500 V, protection IP54 / IP67 / IP69, conforming to IEC 60309-2. 96 part numbers listed — supplied by Yash Enterprise, an authorized Mennekes distributor in Mumbai.
Key features
- X-CONTACT
- Ergonomic enclosure design with nubbed grip zones
- Screw connection technology ErgoCONTACT
- Highly heat resistant contact carrier
- Nickel plated contacts
- Rubberised cable gland with sealing
- Rubberised bayonet ring
- Sealed against dust
All part numbers (96)
Ampere, poles, voltage and position for every variant in this range. Parts are supplied on request. We confirm availability and price within 24 hours.
How the versions in this range differ
| Listed in the catalogue | Connector PowerTOP Xtra R with ErgoCONTACT · IP5430 parts | Connector PowerTOP Xtra R with ErgoCONTACT · IP67 / IP6925 parts | Connector PowerTOP Xtra S with SafeCONTACT · IP543 parts | Connector PowerTOP Xtra with ErgoCONTACT · IP5420 parts | Connector PowerTOP Xtra with ErgoCONTACT · IP67 / IP6911 parts | Connector PowerTOP Xtra · IP547 parts |
|---|---|---|---|---|---|---|
| Ergonomic enclosure design with nubbed grip zones | ● | ● | ● | ● | ● | |
| Screw connection technology ErgoCONTACT | ● | ● | ● | ● | ||
| Highly heat resistant contact carrier | ● | ● | ● | |||
| Rubberised cable gland with sealing | ● | ● | ● | |||
| Nickel plated contacts | ● | ● | ||||
| Rubberised bayonet ring | ● | ● | ||||
| Sealed against dust | ● | ● | ||||
| Strain relief and protection against kinking | ● | ● | ||||
| Temporary submersion and high-pressure cleaning | ● | ● | ||||
| Cable gland and sealing | ● |
● = listed in the manufacturer catalogue for that version; a blank cell means it is not listed there — ask us if you need to confirm a feature. Rating and IP differences are shown in each heading and in the table below.
| Part no. | Ampere | Poles | Voltage | Position | Quote | |
|---|---|---|---|---|---|---|
| Connector PowerTOP Xtra R with ErgoCONTACT · IP54 30 | ||||||
| 14550available from 01.06.2024 | 16 A | 3 | 110 V | 4h | ||
 | 14551available from 01.06.2024 | 16 A | 3 | 230 V | 6h | |
| 14553available from 01.06.2024 | 16 A | 3 | 500 V | 7h | ||
| 14554available from 01.06.2024 | 16 A | 3 | >50–500 V · 100-300 Hz | 10h | ||
| 14555available from 01.06.2024 | 16 A | 3 | >50–500 V · 300-500 Hz | 2h | ||
| 14556available from 01.06.2024 | 16 A | 4 | 110 V | 4h | ||
| 14557available from 01.06.2024 | 16 A | 4 | 230 V | 9h | ||
 | 14558available from 01.06.2024 | 16 A | 4 | 400 V | 6h | |
| 14559available from 01.06.2024 | 16 A | 4 | 500 V | 7h | ||
| 14560available from 01.06.2024 | 16 A | 4 | >50–500 V · 300-500 Hz | 2h | ||
| 14561 | 16 A | 5 | 110 V | 4h | ||
| 14562 | 16 A | 5 | 230 V | 9h | ||
 | 14563 | 16 A | 5 | 400 V | 6h | |
| 14565 | 16 A | 5 | >50–500 V · 100-300 Hz | 10h | ||
| 14567 | 16 A | 5 | >50–500 V · 300-500 Hz | 2h | ||
| 14572available from 01.06.2024 | 32 A | 3 | 110 V | 4h | ||

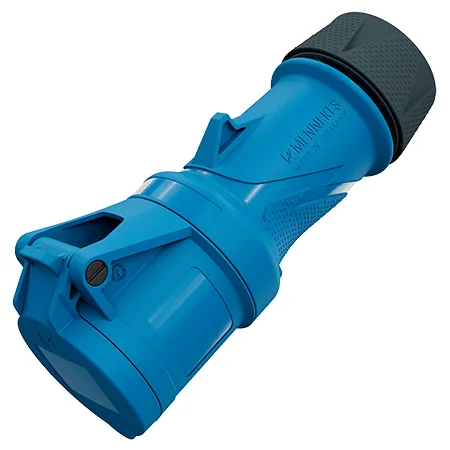

 | 14573available from 01.06.2024 | 32 A | 3 | 230 V | 6h | |
| 14574available from 01.06.2024 | 32 A | 3 | 400 V | 9h | ||
| 14575available from 01.06.2024 | 32 A | 3 | >50–500 V · 100-300 Hz | 10h | ||
| 14576available from 01.06.2024 | 32 A | 3 | >50–500 V · 300-500 Hz | 2h | ||
| 14577available from 01.06.2024 | 32 A | 4 | 110 V | 4h | ||
| 14578available from 01.06.2024 | 32 A | 4 | 230 V | 9h | ||
 | 14579available from 01.06.2024 | 32 A | 4 | 400 V | 6h | |
| 14580available from 01.06.2024 | 32 A | 4 | 500 V | 7h | ||
| 14581available from 01.06.2024 | 32 A | 4 | >50–500 V · 300-500 Hz | 2h | ||
| 14582 | 32 A | 5 | 110 V | 4h | ||

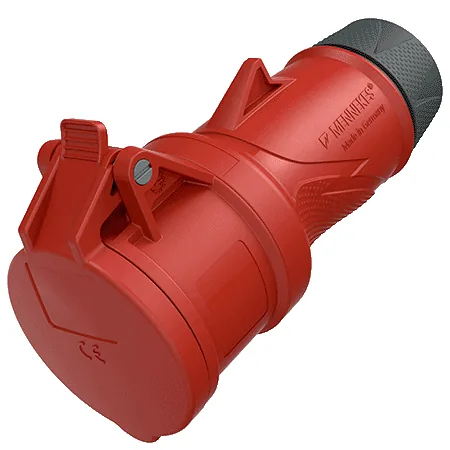

 | 14584 | 32 A | 5 | 400 V | 6h | |
| 14585 | 32 A | 5 | 500 V | 7h | ||
| 14586 | 32 A | 5 | >50–500 V · 100-300 Hz | 10h | ||
| 14587 | 32 A | 5 | >50–500 V · 300-500 Hz | 2h | ||
| Connector PowerTOP Xtra R with ErgoCONTACT · IP67 / IP69 25 | ||||||

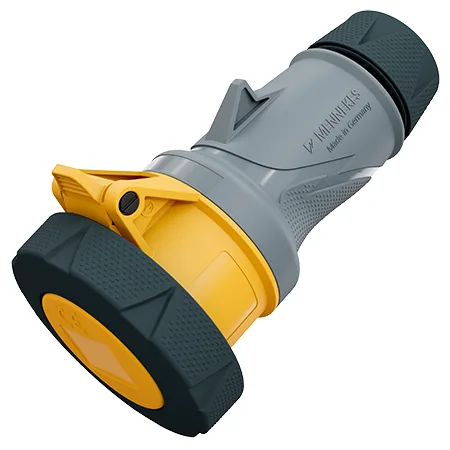

 | 14630available from 01.08.2024 | 16 A | 3 | 110 V | 4h | |
 | 14631available from 01.08.2024 | 16 A | 3 | 230 V | 6h | |
 | 14632available from 01.08.2024 | 16 A | 3 | 400 V | 9h | |
 | 14635available from 01.11.2024 | 16 A | 4 | 110 V | 4h | |
 | 14636available from 01.11.2024 | 16 A | 4 | 230 V | 9h | |
 | 14637available from 01.11.2024 | 16 A | 4 | 400 V | 6h | |
 | 14638available from 01.11.2024 | 16 A | 4 | 500 V | 7h | |
 | 14639available from 01.11.2024 | 16 A | 4 | >50–500 V · 100-300 Hz | 10h | |

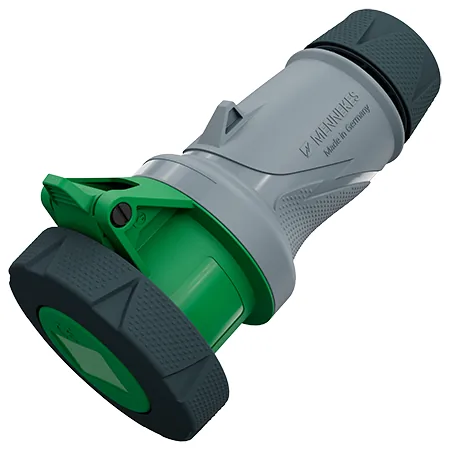

 | 14640available from 01.11.2024 | 16 A | 4 | >50–500 V · 300-500 Hz | 2h | |
 | 14641available from 01.08.2024 | 16 A | 5 | 110 V | 4h | |
 | 14642available from 01.08.2024 | 16 A | 5 | 230 V | 9h | |
 | 14643available from 01.08.2024 | 16 A | 5 | 400 V | 6h | |
 | 14644available from 01.08.2024 | 16 A | 5 | 500 V | 7h | |
 | 14649available from 01.11.2024 | 32 A | 3 | 110 V | 4h | |
 | 14650available from 01.11.2024 | 32 A | 3 | 230 V | 6h | |
 | 14651available from 01.11.2024 | 32 A | 3 | 400 V | 9h | |
 | 14652available from 01.11.2024 | 32 A | 4 | 110 V | 4h | |

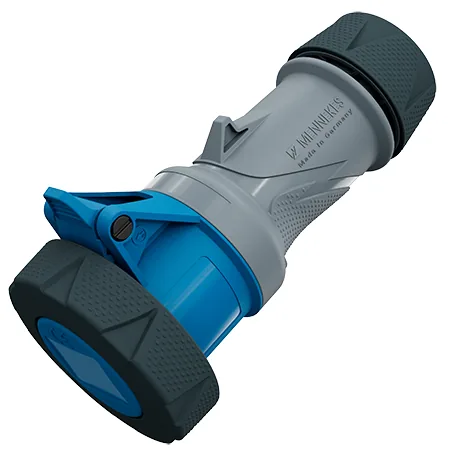

 | 14653available from 01.11.2024 | 32 A | 4 | 230 V | 9h | |

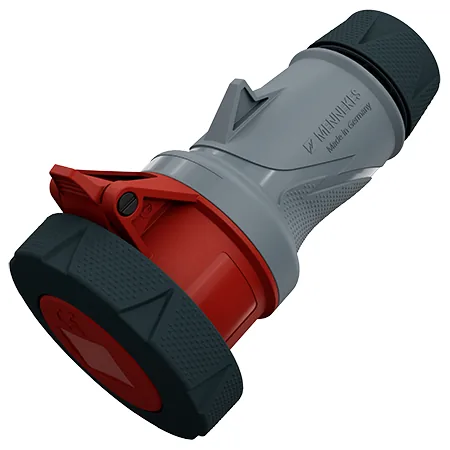

 | 14654available from 01.11.2024 | 32 A | 4 | 400 V | 6h | |

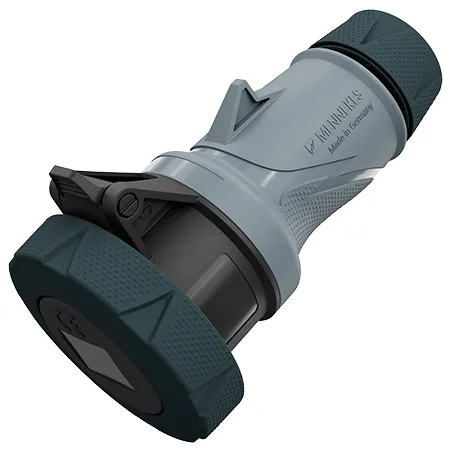

 | 14655available from 01.11.2024 | 32 A | 4 | 500 V | 7h | |
 | 14656available from 01.11.2024 | 32 A | 4 | >50–500 V · 100-300 Hz | 10h | |
 | 14657available from 01.11.2024 | 32 A | 4 | >50–500 V · 300-500 Hz | 2h | |
 | 14658available from 01.08.2024 | 32 A | 5 | 110 V | 4h | |
 | 14659available from 01.08.2024 | 32 A | 5 | 230 V | 9h | |
 | 14660available from 01.08.2024 | 32 A | 5 | 400 V | 6h | |
| Connector PowerTOP Xtra S with SafeCONTACT · IP54 3 | ||||||
| 14521 | 16 A | 3 | 230 V | 6h | ||
| 14522 | 16 A | 5 | 400 V | 6h | ||
| 14523 | 32 A | 5 | 400 V | 6h | ||
| Connector PowerTOP Xtra with ErgoCONTACT · IP54 20 | ||||||
| 14501available from 01.06.2024 | 16 A | 3 | 110 V | 4h | |

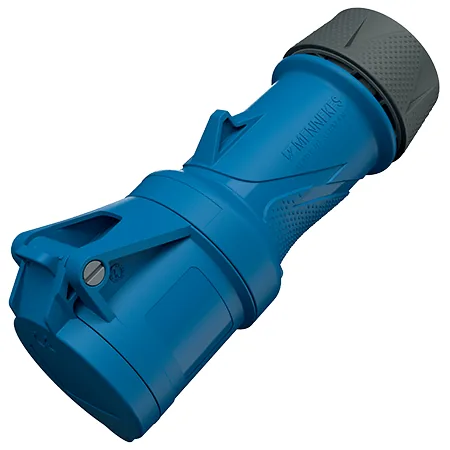

 | 14502 | 16 A | 3 | 230 V | 6h | |
| 14503available from 01.06.2024 | 16 A | 3 | 400 V | 9h | ||
| 14504available from 01.06.2024 | 16 A | 4 | 110 V | 4h | ||
| 14505available from 01.06.2024 | 16 A | 4 | 230 V | 9h | ||
 | 14506 | 16 A | 4 | 400 V | 6h | |
| 14507available from 01.06.2024 | 16 A | 4 | 500 V | 7h | ||
| 14508available from 01.06.2024 | 16 A | 4 | >50–500 V · 100-300 Hz | 10h | ||
| 14509 | 16 A | 5 | 230 V | 9h | ||
 | 14510 | 16 A | 5 | 400 V | 6h | |
| 14511 | 16 A | 5 | 500 V | 7h | ||

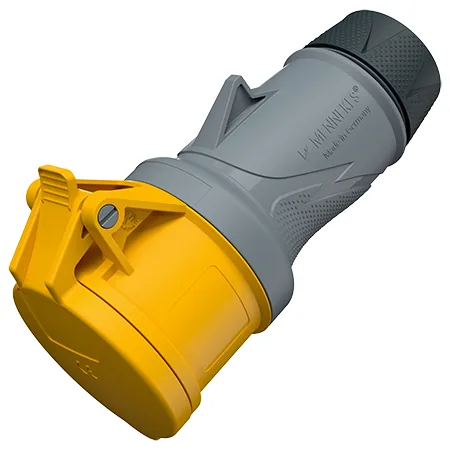

 | 14512available from 01.06.2024 | 32 A | 3 | 110 V | 4h | |
 | 14513 | 32 A | 3 | 230 V | 6h | |
| 14514available from 01.06.2024 | 32 A | 3 | 400 V | 9h | ||
| 14515available from 01.06.2024 | 32 A | 4 | 230 V | 9h | ||
 | 14516 | 32 A | 4 | 400 V | 6h | |
| 14517available from 01.06.2024 | 32 A | 4 | 500 V | 7h | ||
| 14518available from 01.06.2024 | 32 A | 4 | >50–500 V · 100-300 Hz | 10h | ||
| 14519 | 32 A | 5 | 230 V | 9h | ||
 | 14520 | 32 A | 5 | 400 V | 6h | |
| Connector PowerTOP Xtra with ErgoCONTACT · IP67 / IP69 11 | ||||||
 | 14619available from 01.08.2024 | 16 A | 3 | 110 V | 4h | |
 | 14620available from 01.08.2024 | 16 A | 3 | 230 V | 6h | |
 | 14621available from 01.11.2024 | 16 A | 4 | 230 V | 9h | |

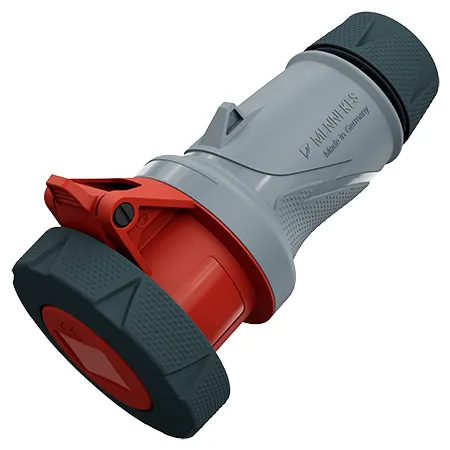

 | 14622available from 01.11.2024 | 16 A | 4 | 400 V | 6h | |
 | 14623available from 01.11.2024 | 16 A | 4 | 500 V | 7h | |
 | 14624available from 01.08.2024 | 16 A | 5 | 400 V | 6h | |

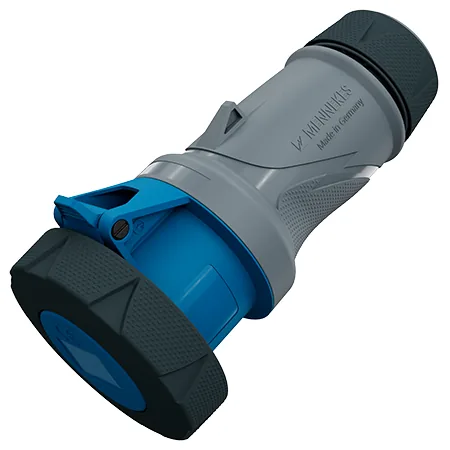

 | 14625available from 01.11.2024 | 32 A | 3 | 230 V | 6h | |
 | 14626available from 01.11.2024 | 32 A | 4 | 230 V | 9h | |
 | 14627available from 01.11.2024 | 32 A | 4 | 400 V | 6h | |
 | 14628available from 01.11.2024 | 32 A | 4 | 500 V | 7h | |

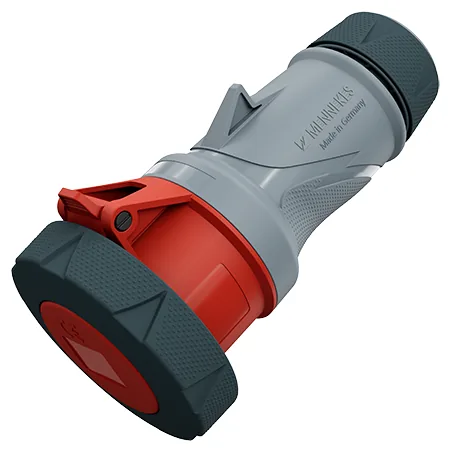

 | 14629available from 01.08.2024 | 32 A | 5 | 400 V | 6h | |
| Connector PowerTOP Xtra · IP54 7 | ||||||

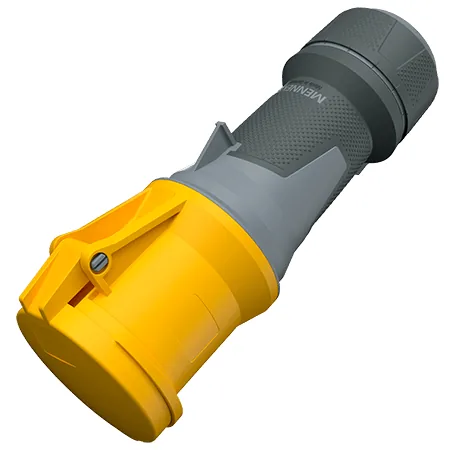

 | 14101 | 63 A | 3 | 110 V | 4h | |
 | 14102 | 63 A | 3 | 230 V | 6h | |
 | 14105 | 63 A | 4 | 230 V | 9h | |
 | 14106 | 63 A | 4 | 400 V | 6h | |

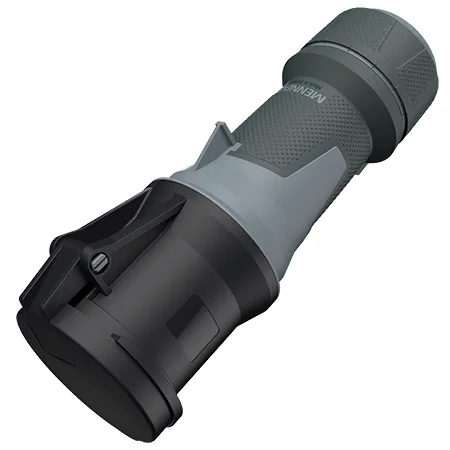

 | 14107 | 63 A | 4 | 500 V | 7h | |

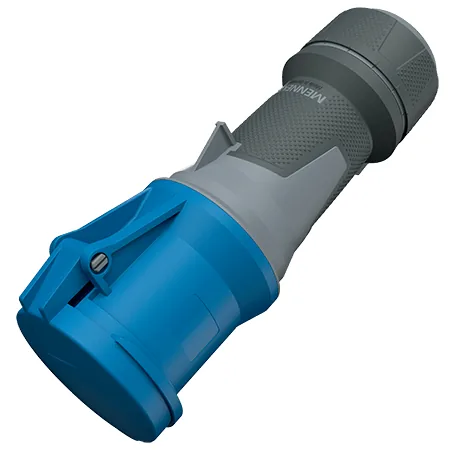

 | 14111 | 63 A | 5 | 230 V | 9h | |
 | 14112 | 63 A | 5 | 400 V | 6h | |
Not sure which part you need? Send us the equipment and rating on WhatsApp and we will recommend the exact part.
No part numbers match those filters.

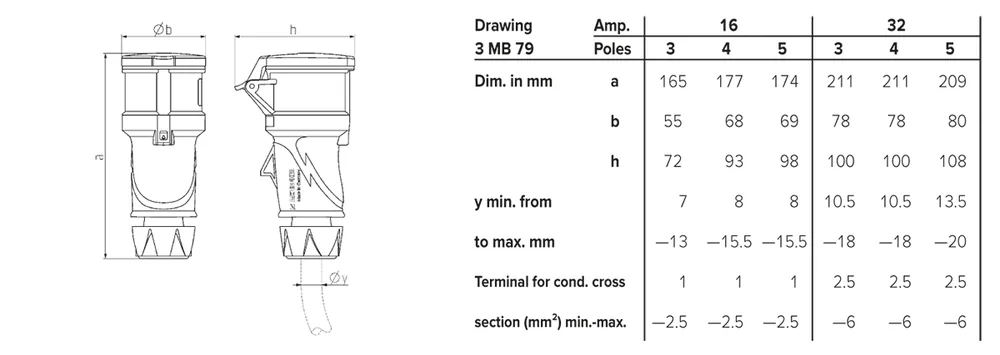

Dimensions
Common questions
What do the position and IP rating mean for Mennekes connectors — PowerTOP Xtra?
Position (the 'h' value) is the clock position of the keyway and earthing contact — a plug and receptacle only mate when their positions match, so quote the position along with the part number. IP54 / IP67 / IP69 is the enclosure protection class (IEC 60529): the first digit covers solid objects and dust, the second covers water.
How do I order a Mennekes part from this range?
Pick the part number from the table (ampere, poles, voltage and position), then request a quotation. There is no minimum order — single pieces and project quantities are quoted the same way, and we confirm availability and price within 24 hours.
Are these genuine Mennekes products?
Yes. Yash Enterprise is an authorized Mennekes distributor; every part is sourced through the principal brand, with the manufacturer's standard warranty passed through.
