Mennekes Panel mounted inlets (IP44 / IP67)
Panel mounted inlets from Mennekes, rated 16–125 A at 110 V, 230 V, 400 V, 500 V, protection IP44 / IP67, conforming to IEC 60309-2. 64 part numbers listed — supplied by Yash Enterprise, an authorized Mennekes distributor in Mumbai.
Key features
- Nickel plated contacts
All part numbers (64)
Ampere, poles, voltage and position for every variant in this range. Parts are supplied on request. We confirm availability and price within 24 hours.
- A retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking.
How the versions in this range differ
| Listed in the catalogue | Nickel plated contacts · IP4410 parts | Nickel plated contacts · IP6712 parts | Screw terminals · IP448 parts | Standard · IP443 parts | With hinged lid · IP4415 parts | Highly heat resistant contact carrier, nickel plated contacts · IP445 parts | Highly heat resistant contact carrier, nickel plated contacts · IP6711 parts |
|---|---|---|---|---|---|---|---|
| Nickel plated contacts | ● | ● | ● | ● | |||
| Highly heat resistant contact carrier | ● | ● | |||||
| Screw terminals | ● | ||||||
| With hinged lid | ● |
● = listed in the manufacturer catalogue for that version; a blank cell means it is not listed there — ask us if you need to confirm a feature. Rating and IP differences are shown in each heading and in the table below.
| Part no. | Ampere | Poles | Voltage | Position | Quote | |
|---|---|---|---|---|---|---|
| Nickel plated contacts · IP44 10 | ||||||
 | 812 | 16 A | 3 | 230 V | 6h | |

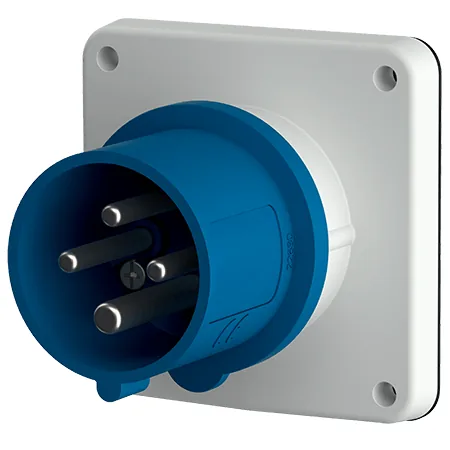

 | 837 | 16 A | 4 | 230 V | 9h | |
 | 813 | 16 A | 4 | 400 V | 6h | |

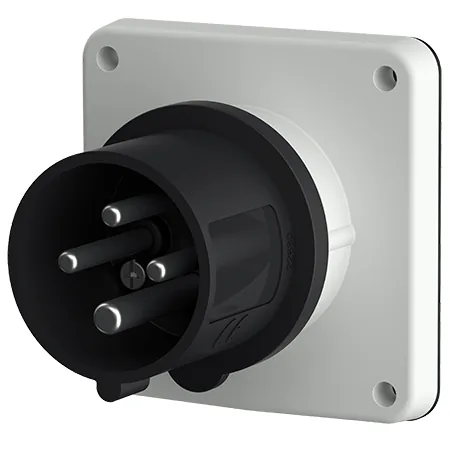

 | 814 | 16 A | 4 | 500 V | 7h | |

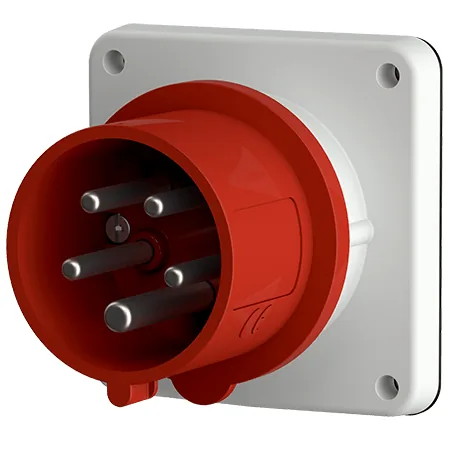

 | 815 | 16 A | 5 | 400 V | 6h | |

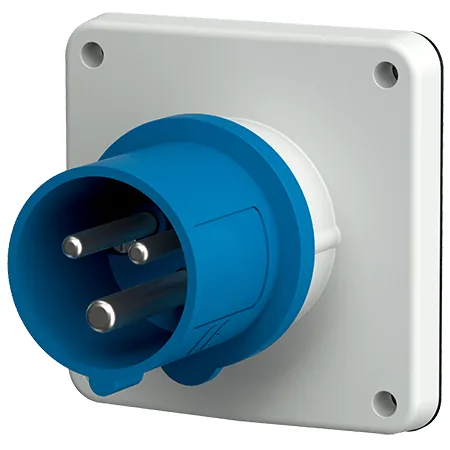

 | 817 | 32 A | 3 | 230 V | 6h | |
 | 838 | 32 A | 4 | 230 V | 9h | |
 | 819 | 32 A | 4 | 400 V | 6h | |
 | 820 | 32 A | 4 | 500 V | 7h | |
 | 821 | 32 A | 5 | 400 V | 6h | |
| Nickel plated contacts · IP67 12 | ||||||
| 825 | 16 A | 3 | 110 V | 4h | |
 | 826 | 16 A | 3 | 230 V | 6h | |
 | 839 | 16 A | 4 | 230 V | 9h | |
 | 827 | 16 A | 4 | 400 V | 6h | |

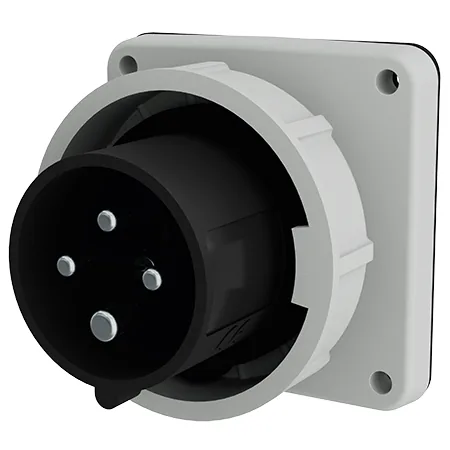

 | 828 | 16 A | 4 | 500 V | 7h | |
 | 829 | 16 A | 5 | 400 V | 6h | |

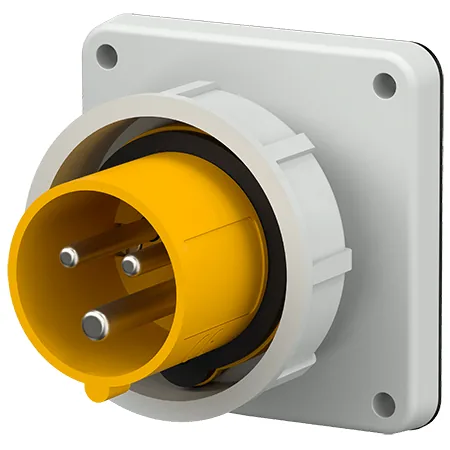

 | 830 | 32 A | 3 | 110 V | 4h | |

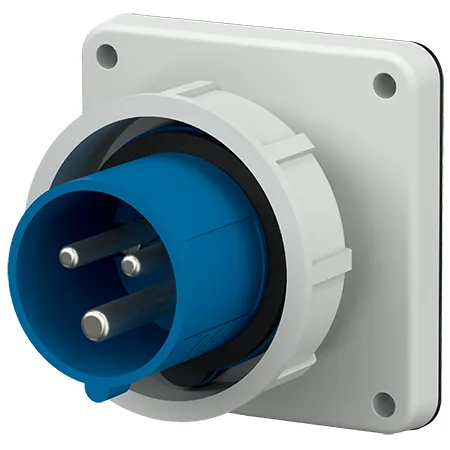

 | 831 | 32 A | 3 | 230 V | 6h | |

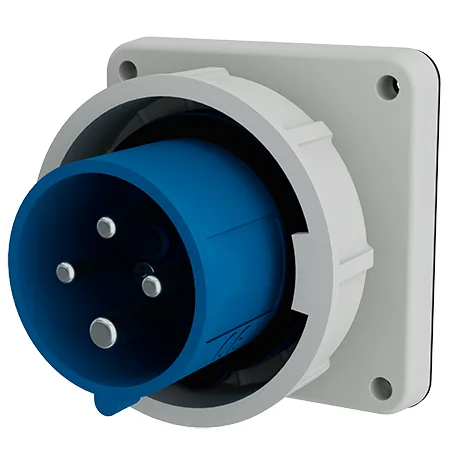

 | 840 | 32 A | 4 | 230 V | 9h | |

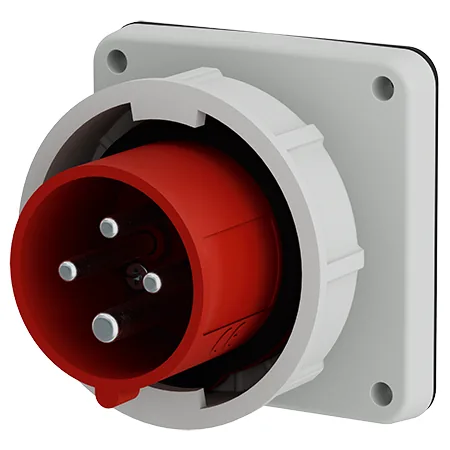

 | 832 | 32 A | 4 | 400 V | 6h | |
 | 833 | 32 A | 4 | 500 V | 7h | |

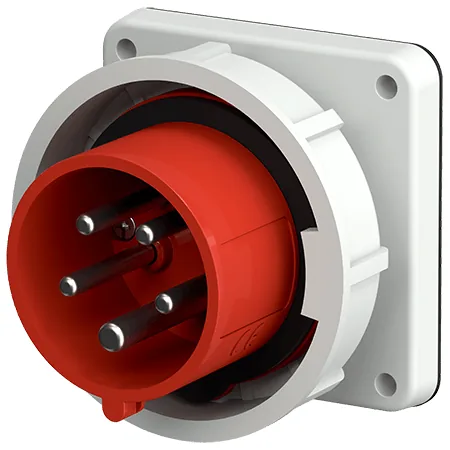

 | 834 | 32 A | 5 | 400 V | 6h | |
| Screw terminals · IP44 8 | ||||||

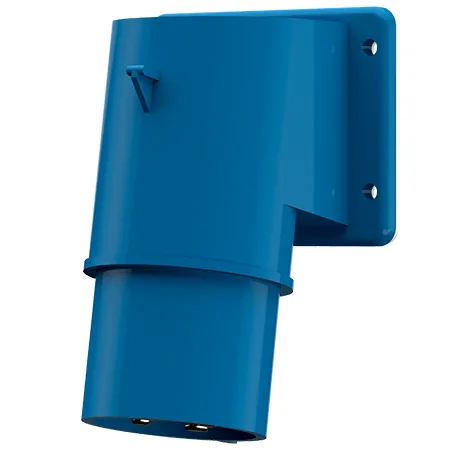

 | 372 | 16 A | 4 | 230 V | 9h | |

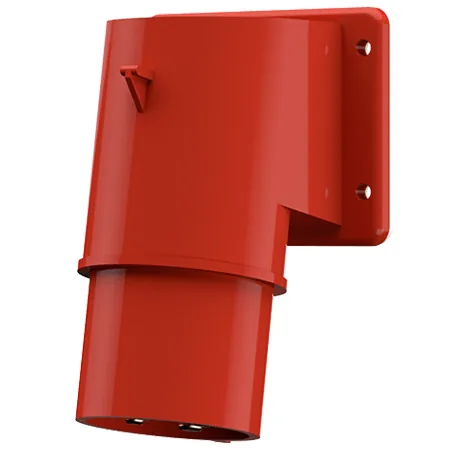

 | 373 | 16 A | 4 | 400 V | 6h | |

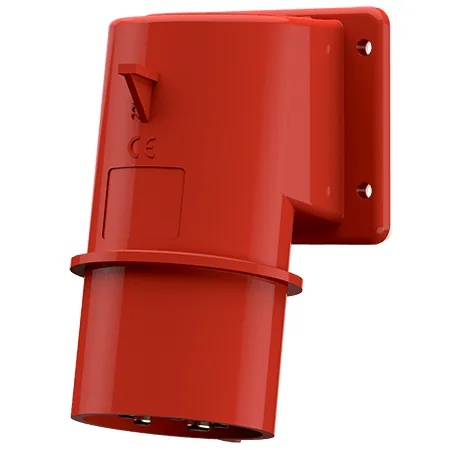

 | 379 | 16 A | 5 | 400 V | 6h | |

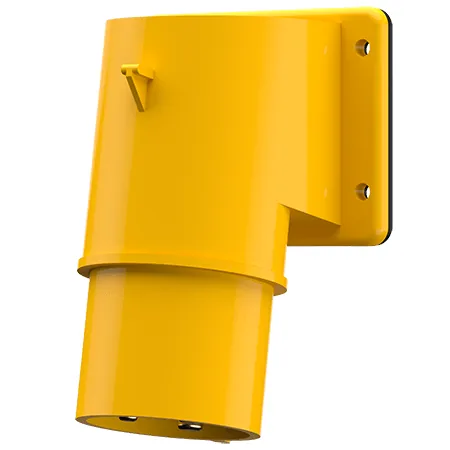

 | 380 | 32 A | 3 | 110 V | 4h | |

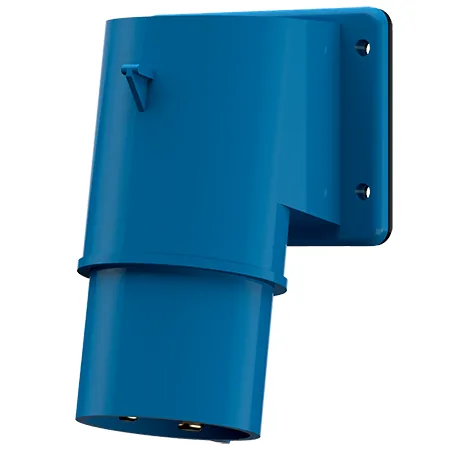

 | 381 | 32 A | 3 | 230 V | 6h | |
 | 384 | 32 A | 4 | 230 V | 9h | |

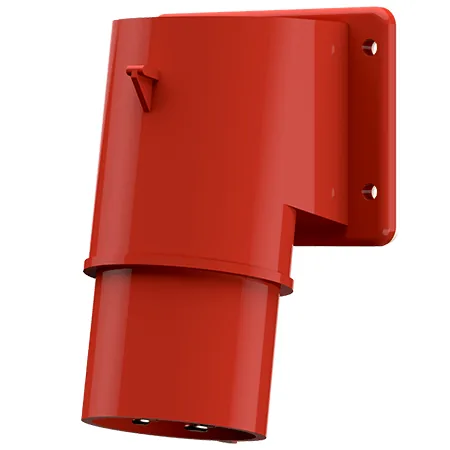

 | 385 | 32 A | 4 | 400 V | 6h | |
 | 391 | 32 A | 5 | 400 V | 6h | |
| Standard · IP44 3 | ||||||

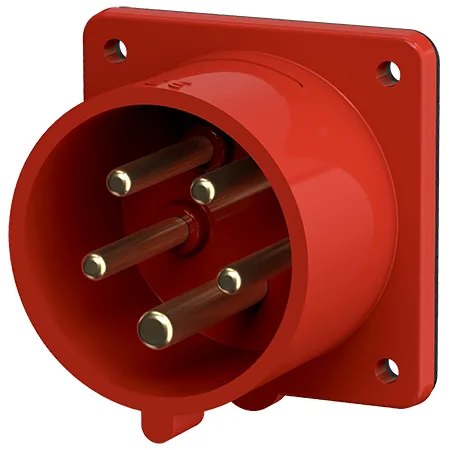

 | 1408 | 16 A | 5 | 400 V | 6h | |
 | 853 | 16 A | 5 | 400 V | 6h | |
 | 1409 | 32 A | 5 | 400 V | 6h | |
| With hinged lid · IP44 15 | ||||||

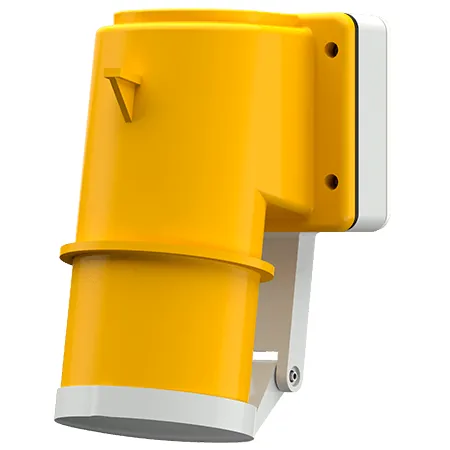

 | 392 | 16 A | 4 | 110 V | 4h | |
 | 393 | 16 A | 4 | 230 V | 9h | |
 | 394 | 16 A | 4 | 400 V | 6h | |
 | 395 | 16 A | 4 | 500 V | 7h | |

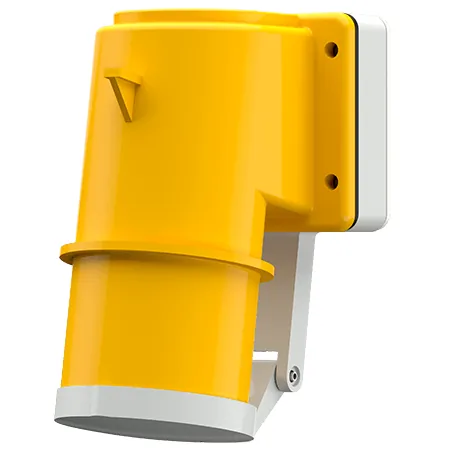

 | 398 | 16 A | 5 | 110 V | 4h | |

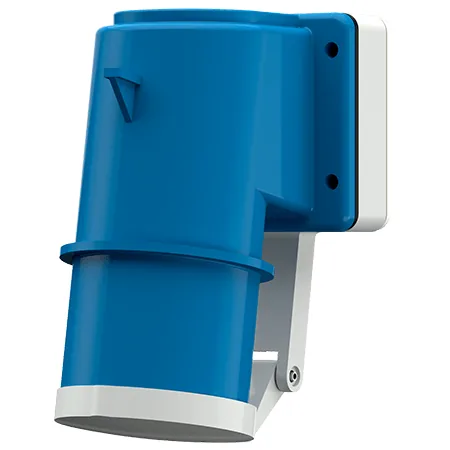

 | 399 | 16 A | 5 | 230 V | 9h | |

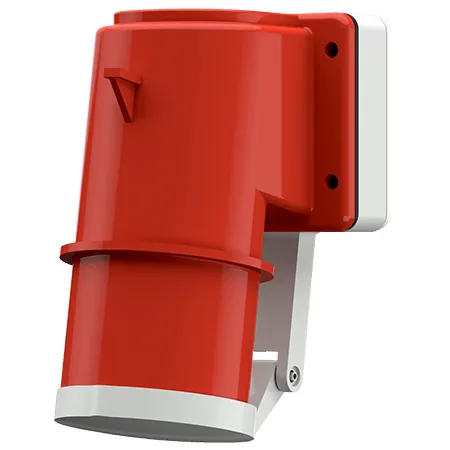

 | 400 | 16 A | 5 | 400 V | 6h | |
 | 402 | 32 A | 3 | 230 V | 6h | |
 | 403 | 32 A | 3 | 400 V | 9h | |
 | 405 | 32 A | 4 | 230 V | 9h | |
 | 406 | 32 A | 4 | 400 V | 6h | |

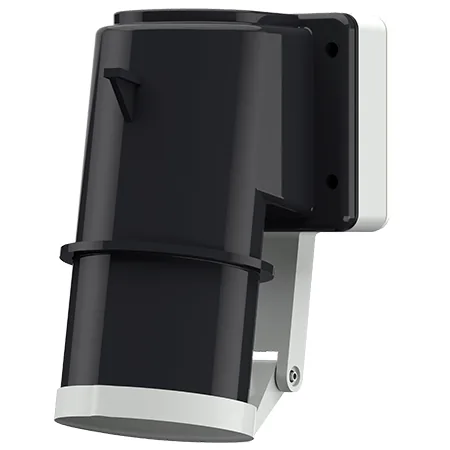

 | 407 | 32 A | 4 | 500 V | 7h | |
 | 410 | 32 A | 5 | 110 V | 4h | |
 | 411 | 32 A | 5 | 230 V | 9h | |
 | 412 | 32 A | 5 | 400 V | 6h | |
| Highly heat resistant contact carrier, nickel plated contacts · IP44 5 | ||||||

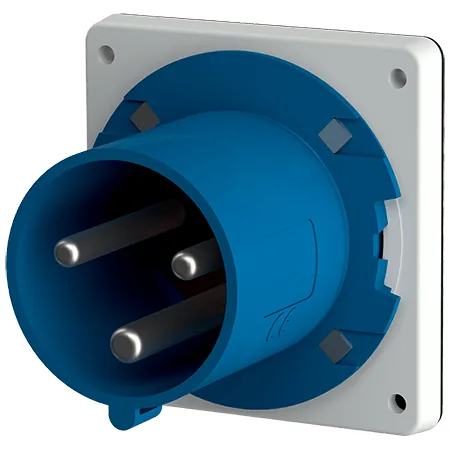

 | 1981 | 63 A | 3 | 230 V | 6h | |

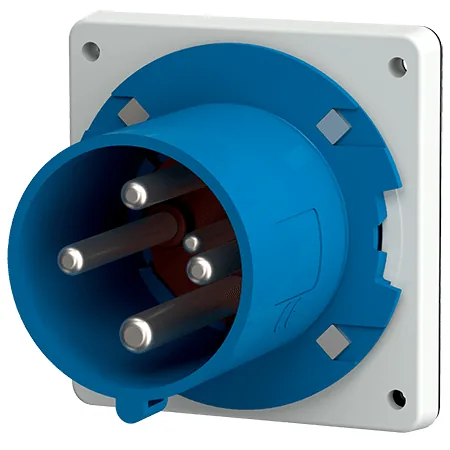

 | 1984 | 63 A | 4 | 230 V | 9h | |

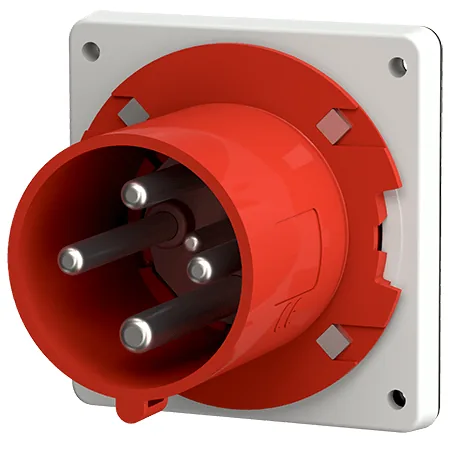

 | 1982 | 63 A | 4 | 400 V | 6h | |

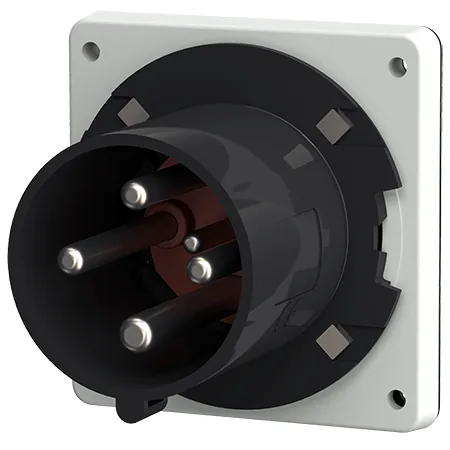

 | 824 | 63 A | 4 | 500 V | 7h | |

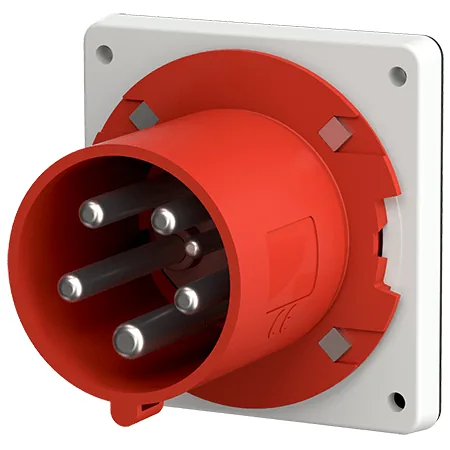

 | 1688 | 63 A | 5 | 400 V | 6h | |
| Highly heat resistant contact carrier, nickel plated contacts · IP67 11 | ||||||

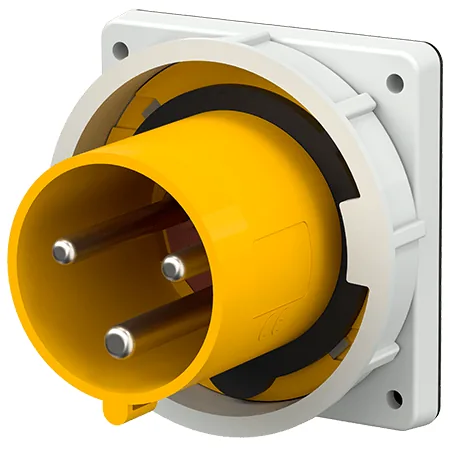

 | 835 | 63 A | 3 | 110 V | 4h | |
 | 836 | 63 A | 3 | 230 V | 6h | |
 | 3704 | 63 A | 4 | 230 V | 9h | |
 | 3656 | 63 A | 4 | 400 V | 6h | |

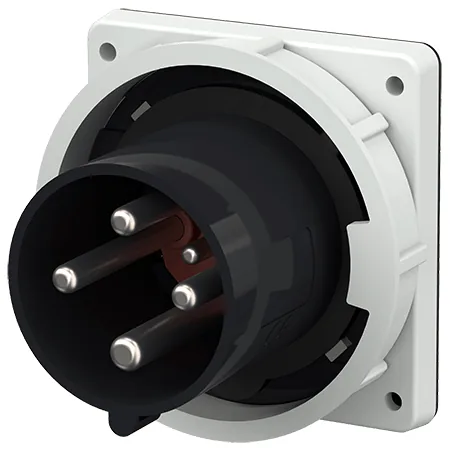

 | 3657 | 63 A | 4 | 500 V | 7h | |

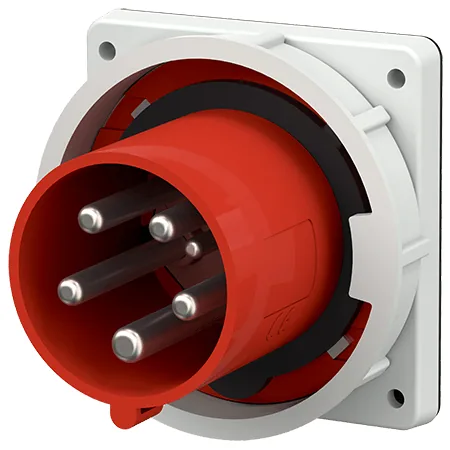

 | 3658 | 63 A | 5 | 400 V | 6h | |

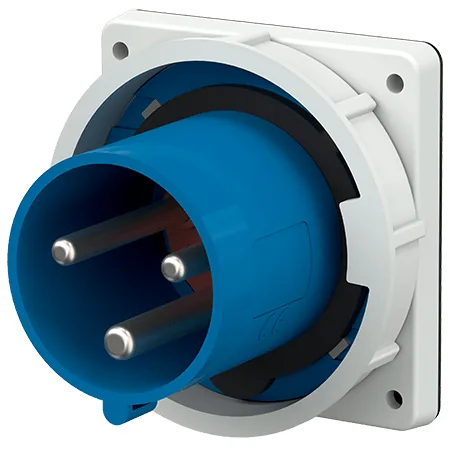

 | 3665 | 125 A | 3 | 230 V | 6h | |
 | 3413 | 125 A | 4 | 230 V | 9h | |

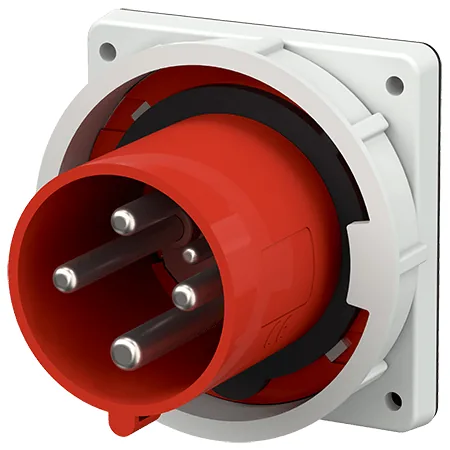

 | 3583 | 125 A | 4 | 400 V | 6h | |
 | 3600 | 125 A | 4 | 500 V | 7h | |
 | 1983 | 125 A | 5 | 400 V | 6h | |
Not sure which part you need? Send us the equipment and rating on WhatsApp and we will recommend the exact part.
No part numbers match those filters.

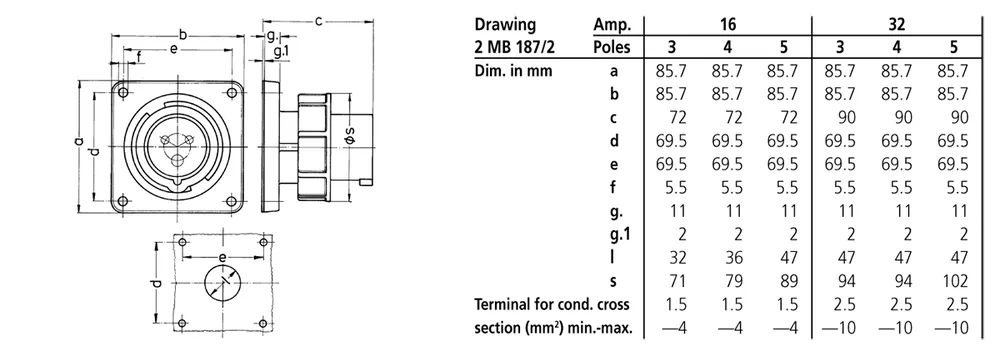

Dimensions
Common questions
What do the position and IP rating mean for Mennekes panel mounted inlets?
Position (the 'h' value) is the clock position of the keyway and earthing contact — a plug and receptacle only mate when their positions match, so quote the position along with the part number. IP44 / IP67 is the enclosure protection class (IEC 60529): the first digit covers solid objects and dust, the second covers water.
How do I order a Mennekes part from this range?
Pick the part number from the table (ampere, poles, voltage and position), then request a quotation. There is no minimum order — single pieces and project quantities are quoted the same way, and we confirm availability and price within 24 hours.
Are these genuine Mennekes products?
Yes. Yash Enterprise is an authorized Mennekes distributor; every part is sourced through the principal brand, with the manufacturer's standard warranty passed through.
Related guides: IP ratings explained · Matching plugs and sockets
