Mennekes Phase inverter plugs (IP44 / IP67)
Phase inverter plugs from Mennekes, rated 16–32 A at 230 V, 400 V, protection IP44 / IP67, conforming to IEC 60309-2. 16 part numbers listed — supplied by Yash Enterprise, an authorized Mennekes distributor in Mumbai.
Key features
- Cable gland and sealing
- Strain relief and protection against kinking
- Single part body
All part numbers (16)
Ampere, poles, voltage and position for every variant in this range. Parts are supplied on request. We confirm availability and price within 24 hours.
How the versions in this range differ
| Listed in the catalogue | Phase inverter plug AM-TOP · IP447 parts | Phase inverter plug AM-TOP · IP677 parts | Phase inverter plug ProTOP · IP442 parts |
|---|---|---|---|
| Single part body | ● | ● | |
| Enclosure with thread lock and safety slide | ● |
● = listed in the manufacturer catalogue for that version; a blank cell means it is not listed there — ask us if you need to confirm a feature. Rating and IP differences are shown in each heading and in the table below.
| Part no. | Ampere | Poles | Voltage | Position | Quote | |
|---|---|---|---|---|---|---|
| Phase inverter plug AM-TOP · IP44 7 | ||||||
 | 338 | 16 A | 4 | 230 V | 9h | |
 | 339 | 16 A | 4 | 400 V | 6h | |

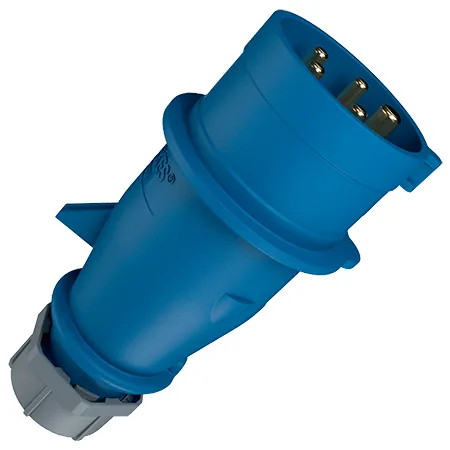

 | 318 | 16 A | 5 | 230 V | 9h | |

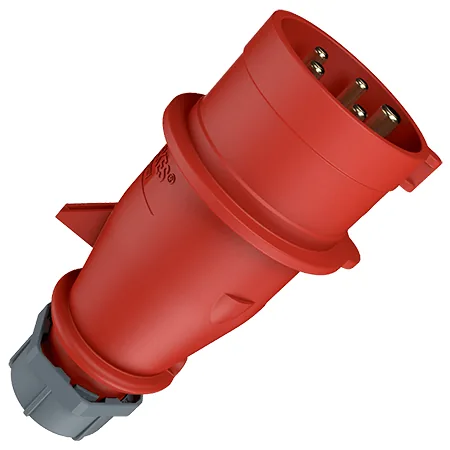

 | 319 | 16 A | 5 | 400 V | 6h | |

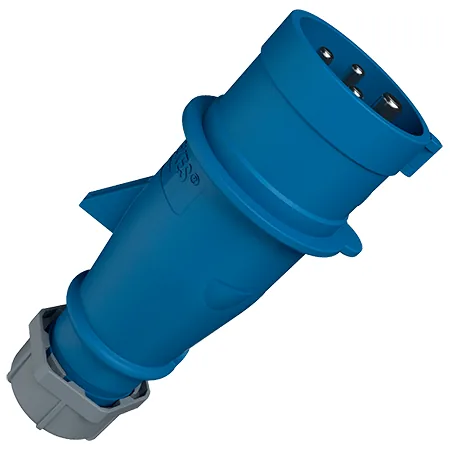

 | 396 | 32 A | 4 | 230 V | 9h | |
 | 397 | 32 A | 4 | 400 V | 6h | |
 | 322 | 32 A | 5 | 400 V | 6h | |
| Phase inverter plug AM-TOP · IP67 7 | ||||||
| 3338 | 16 A | 4 | 230 V | 9h | |

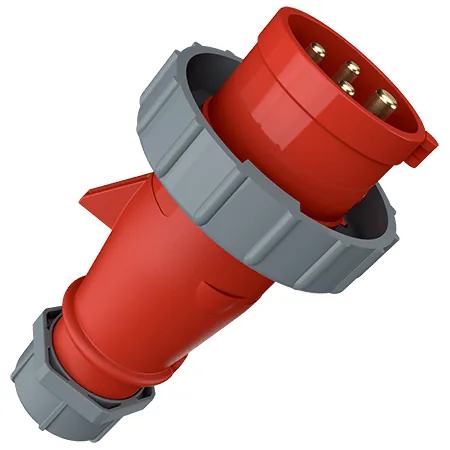

 | 3339 | 16 A | 4 | 400 V | 6h | |
 | 325 | 16 A | 5 | 400 V | 6h | |

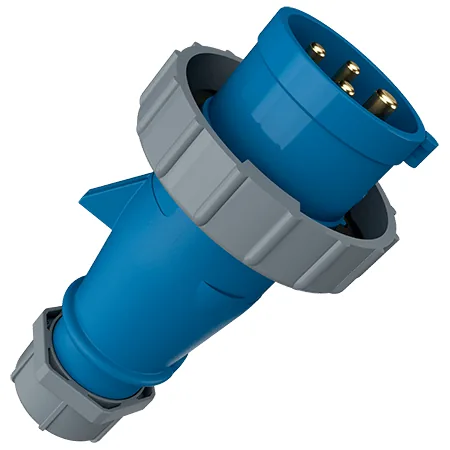

 | 3340 | 32 A | 4 | 230 V | 9h | |
 | 3341 | 32 A | 4 | 400 V | 6h | |

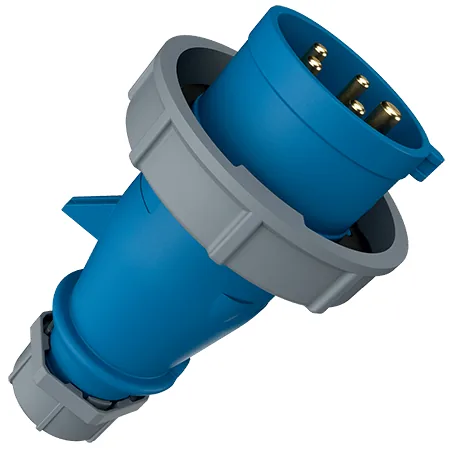

 | 327 | 32 A | 5 | 230 V | 9h | |

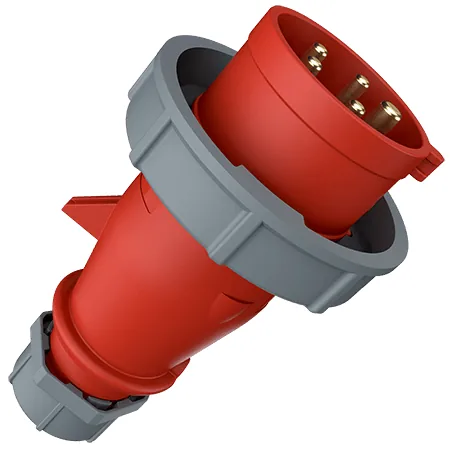

 | 328 | 32 A | 5 | 400 V | 6h | |
| Phase inverter plug ProTOP · IP44 2 | ||||||
 | 3319A | 16 A | 5 | 400 V | 6h | |

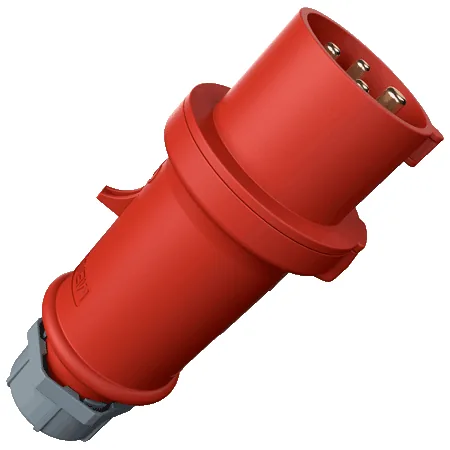

 | 3322 | 32 A | 5 | 400 V | 6h | |
Not sure which part you need? Send us the equipment and rating on WhatsApp and we will recommend the exact part.
No part numbers match those filters.

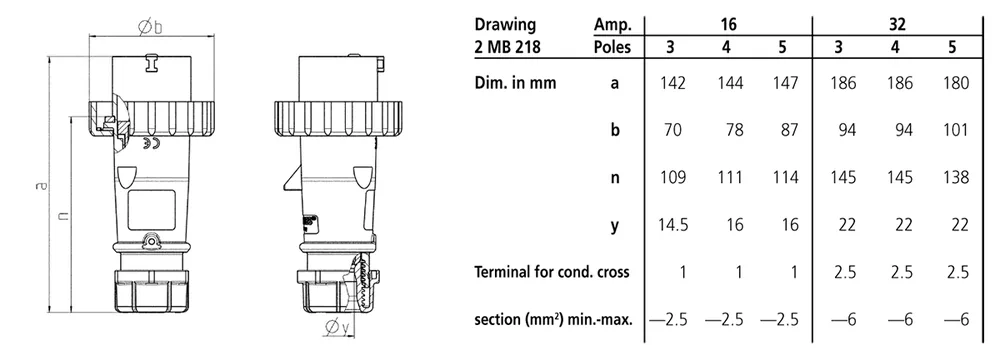

Dimensions
Common questions
What do the position and IP rating mean for Mennekes phase inverter plugs?
Position (the 'h' value) is the clock position of the keyway and earthing contact — a plug and receptacle only mate when their positions match, so quote the position along with the part number. IP44 / IP67 is the enclosure protection class (IEC 60529): the first digit covers solid objects and dust, the second covers water.
How do I order a Mennekes part from this range?
Pick the part number from the table (ampere, poles, voltage and position), then request a quotation. There is no minimum order — single pieces and project quantities are quoted the same way, and we confirm availability and price within 24 hours.
Are these genuine Mennekes products?
Yes. Yash Enterprise is an authorized Mennekes distributor; every part is sourced through the principal brand, with the manufacturer's standard warranty passed through.
Related guides: IP ratings explained · Matching plugs and sockets
