Mennekes Phase inverter inlets (IP44)
Phase inverter inlets from Mennekes, rated 16–32 A at 230 V, 400 V, protection IP44, conforming to IEC 60309-2. 18 part numbers listed — supplied by Yash Enterprise, an authorized Mennekes distributor in Mumbai.
Key features
- With hinged lid
All part numbers (18)
Ampere, poles, voltage and position for every variant in this range. Parts are supplied on request. We confirm availability and price within 24 hours.
- A retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking.
How the versions in this range differ
| Listed in the catalogue | Panel mounted phase inverter inlet · IP445 parts | Panel mounted phase inverter inlet, with hinged lid · IP446 parts | Wall mounted phase inverter inlet · IP445 parts | Wall mounted phase inverter inlet, external fixing · IP442 parts |
|---|---|---|---|---|
| External fixing | ● | |||
| With hinged lid | ● |
● = listed in the manufacturer catalogue for that version; a blank cell means it is not listed there — ask us if you need to confirm a feature. Rating and IP differences are shown in each heading and in the table below.
| Part no. | Ampere | Poles | Voltage | Position | Quote | |
|---|---|---|---|---|---|---|
| Panel mounted phase inverter inlet · IP44 5 | ||||||
 | 329 | 16 A | 5 | 400 V | 6h | |

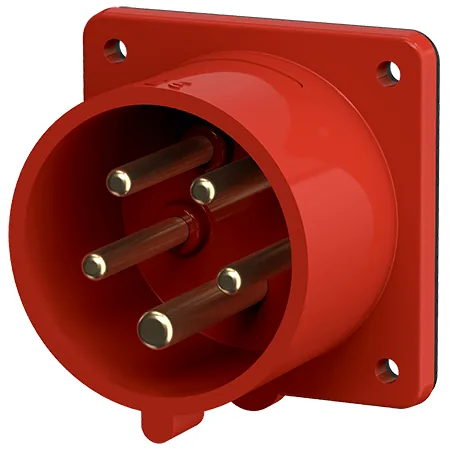

 | 854 | 16 A | 5 | 400 V | 6h | |

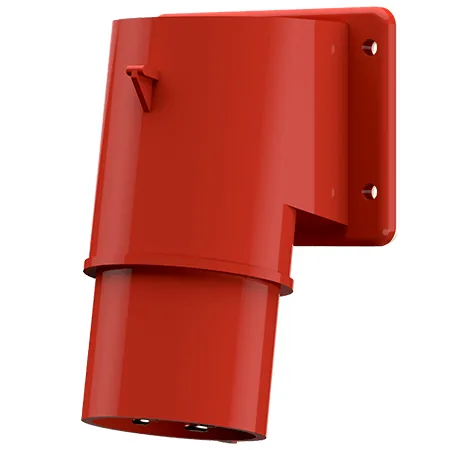

 | 3368 | 32 A | 4 | 400 V | 6h | |

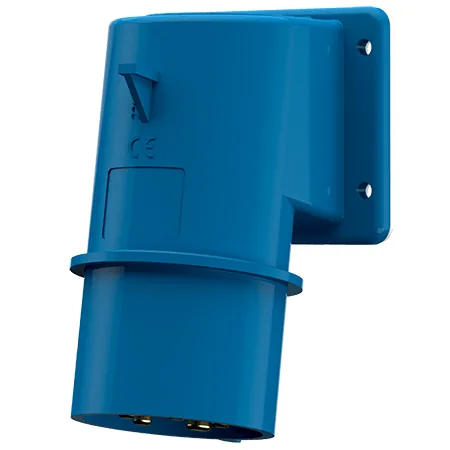

 | 913 | 32 A | 5 | 230 V | 9h | |

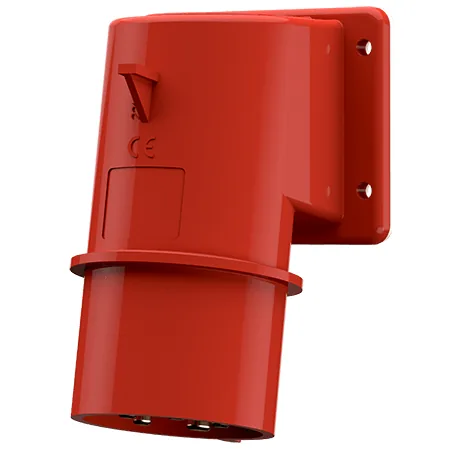

 | 330 | 32 A | 5 | 400 V | 6h | |
| Panel mounted phase inverter inlet, with hinged lid · IP44 6 | ||||||
| 3348 | 16 A | 4 | 230 V | 9h | |

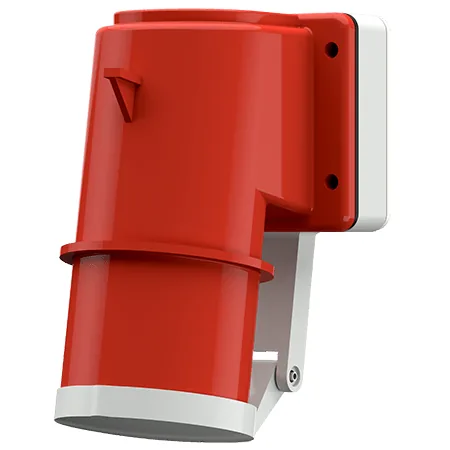

 | 3350 | 16 A | 4 | 400 V | 6h | |
 | 20970 | 16 A | 5 | 400 V | 6h | |
 | 3356 | 32 A | 4 | 400 V | 6h | |

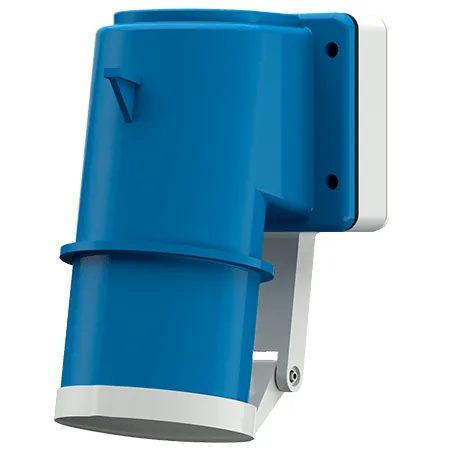

 | 3717 | 32 A | 5 | 230 V | 9h | |
 | 21241 | 32 A | 5 | 400 V | 6h | |
| Wall mounted phase inverter inlet · IP44 5 | ||||||

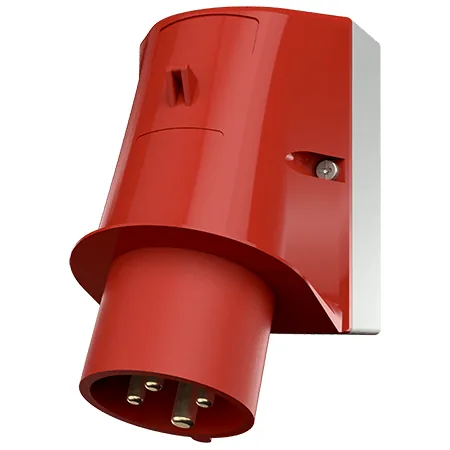

 | 3343 | 16 A | 4 | 400 V | 6h | |
 | 2511 | 16 A | 5 | 400 V | 6h | |

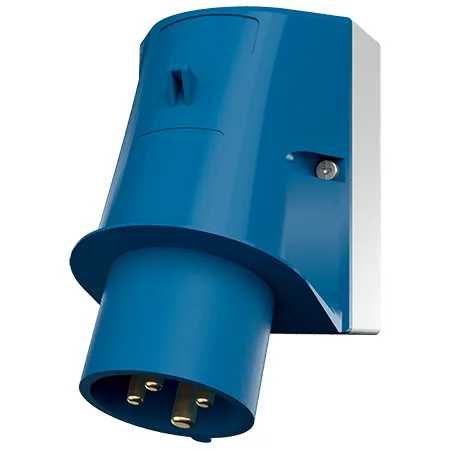

 | 3345 | 32 A | 4 | 230 V | 9h | |
 | 3346 | 32 A | 4 | 400 V | 6h | |

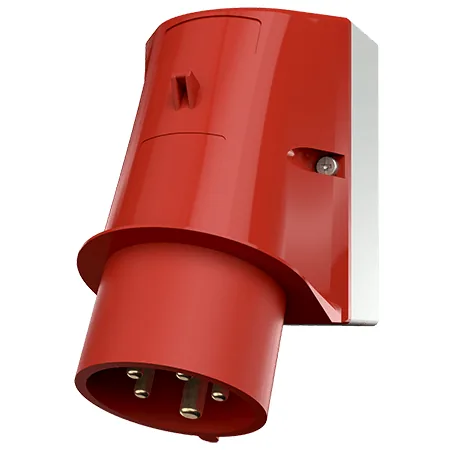

 | 2478 | 32 A | 5 | 400 V | 6h | |
| Wall mounted phase inverter inlet, external fixing · IP44 2 | ||||||

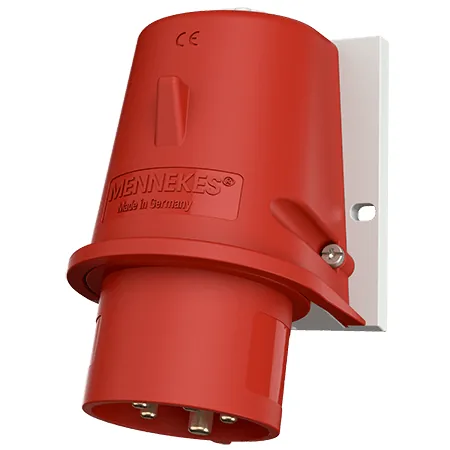

 | 3517 | 16 A | 5 | 400 V | 6h | |
 | 3523 | 32 A | 5 | 400 V | 6h | |
Not sure which part you need? Send us the equipment and rating on WhatsApp and we will recommend the exact part.
No part numbers match those filters.

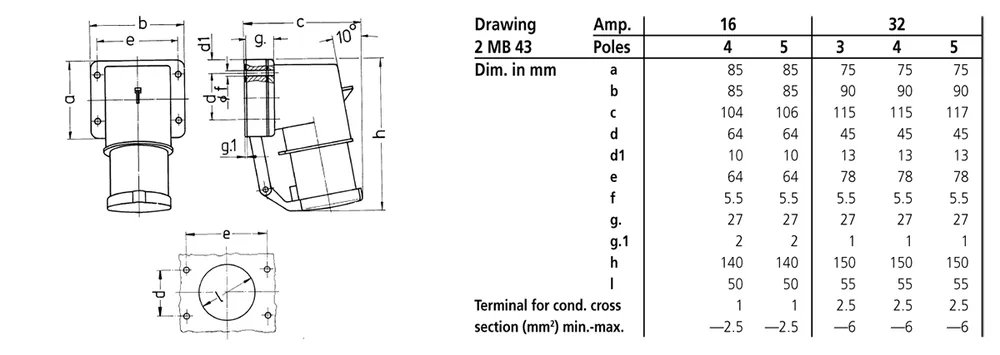

Dimensions
Common questions
What do the position and IP rating mean for Mennekes phase inverter inlets?
Position (the 'h' value) is the clock position of the keyway and earthing contact — a plug and receptacle only mate when their positions match, so quote the position along with the part number. IP44 is the enclosure protection class (IEC 60529): the first digit covers solid objects and dust, the second covers water.
How do I order a Mennekes part from this range?
Pick the part number from the table (ampere, poles, voltage and position), then request a quotation. There is no minimum order — single pieces and project quantities are quoted the same way, and we confirm availability and price within 24 hours.
Are these genuine Mennekes products?
Yes. Yash Enterprise is an authorized Mennekes distributor; every part is sourced through the principal brand, with the manufacturer's standard warranty passed through.
