Mennekes Panel mounted receptacles — X-CONTACT (IP44 / IP67)
Panel mounted receptacles — X-CONTACT from Mennekes, rated 16–125 A at 110 V, 230 V, 400 V, 500 V, protection IP44 / IP67, conforming to IEC 60309-2. 46 part numbers listed — supplied by Yash Enterprise, an authorized Mennekes distributor in Mumbai.
Key features
- X-CONTACT
- Straight
All part numbers (46)
Ampere, poles, voltage and position for every variant in this range. Parts are supplied on request. We confirm availability and price within 24 hours.
How the versions in this range differ
| Listed in the catalogue | X-CONTACT, standard flange dimensions · IP443 parts | X-CONTACT, flange 63 A: 107 x 100 mm · IP6716 parts | X-CONTACT, flange 63 A: 110 x 106 mm · IP6715 parts | X-CONTACT, highly heat resistant contact carrier · IP446 parts | X-CONTACT, straight · IP446 parts |
|---|---|---|---|---|---|
| Straight | ● | ● | |||
| Highly heat resistant contact carrier | ● | ||||
| Uniform fixing hole spacing | ● | ||||
| Flange / dimensions | standard flange dimensions; 15° inclination for 16 A and 32 A; 20° inclination for 63 A | flange 63 A: 107 x 100 mm; 130 x 130 mm | flange 63 A: 110 x 106 mm; inclination 20°; 114 x 110 mm; inclination 15° | 20° inclination | — |
● = listed in the manufacturer catalogue for that version; a blank cell means it is not listed there — ask us if you need to confirm a feature. Rating and IP differences are shown in each heading and in the table below.
| Part no. | Ampere | Poles | Voltage | Position | Quote | |
|---|---|---|---|---|---|---|
| X-CONTACT, standard flange dimensions · IP44 3 | ||||||
| 20146A | 16 A | 5 | 400 V | 6h | |

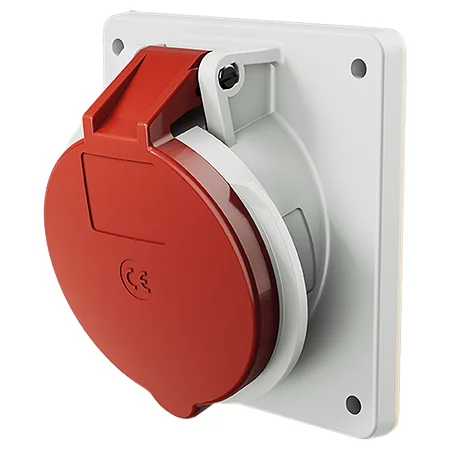

 | 20147A | 32 A | 5 | 400 V | 6h | |

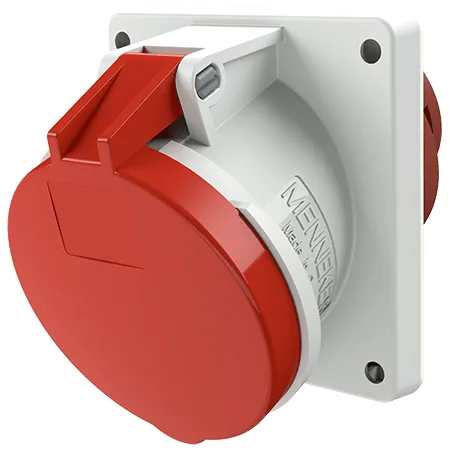

 | 21160A | 63 A | 5 | 400 V | 6h | |
| X-CONTACT, flange 63 A: 107 x 100 mm · IP67 16 | ||||||

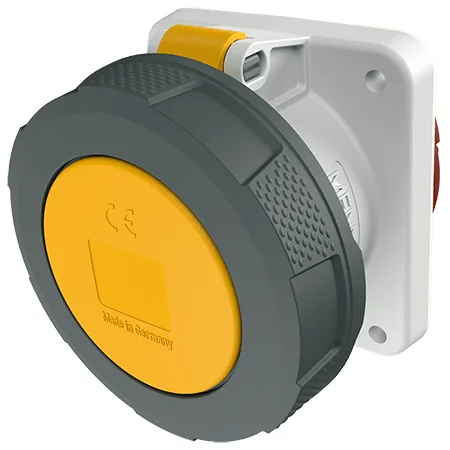

 | 1263A | 63 A | 3 | 110 V | 4h | |
 | 1264A | 63 A | 3 | 230 V | 6h | |
 | 1265A | 63 A | 3 | 400 V | 9h | |
 | 1123A | 63 A | 4 | 230 V | 9h | |
 | 1124A | 63 A | 4 | 400 V | 6h | |

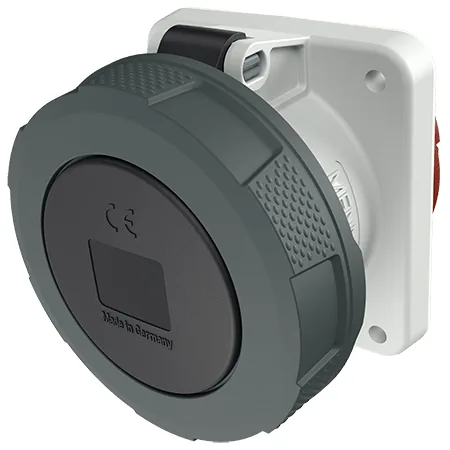

 | 1125A | 63 A | 4 | 500 V | 7h | |

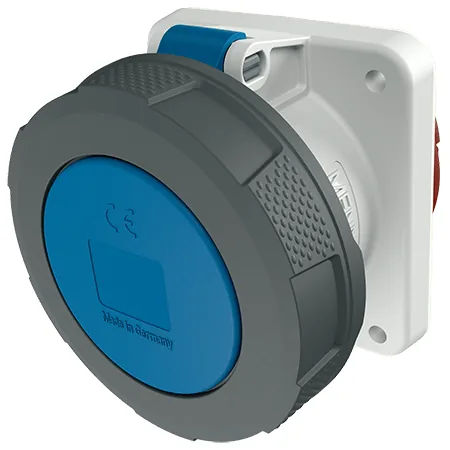

 | 1127A | 63 A | 5 | 230 V | 9h | |
 | 1128A | 63 A | 5 | 400 V | 6h | |

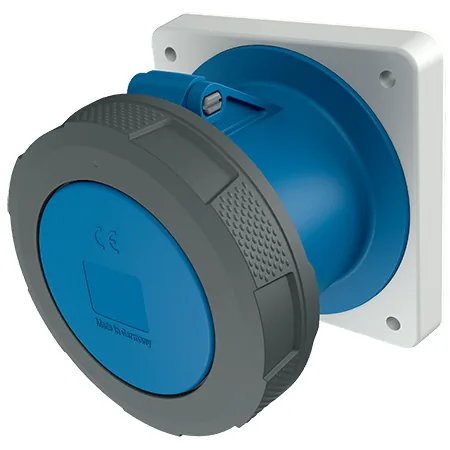

 | 3380 | 125 A | 3 | 230 V | 6h | |

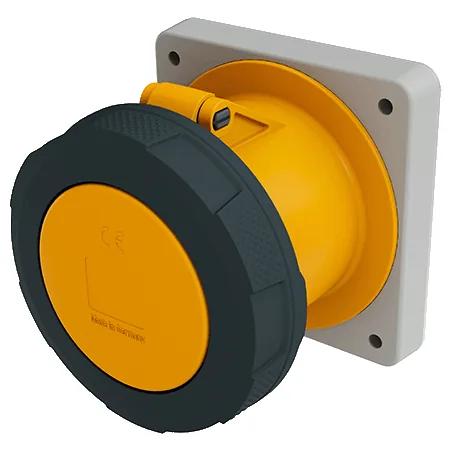

 | 1455 | 125 A | 4 | 110 V | 4h | |
 | 1456 | 125 A | 4 | 230 V | 9h | |
 | 1457 | 125 A | 4 | 400 V | 6h | |
 | 1458 | 125 A | 4 | 500 V | 7h | |
 | 1460 | 125 A | 5 | 230 V | 9h | |

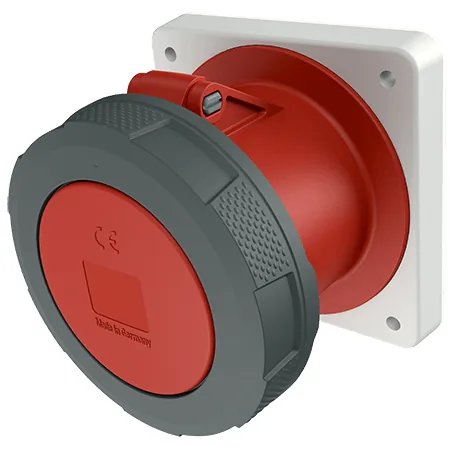

 | 1461 | 125 A | 5 | 400 V | 6h | |

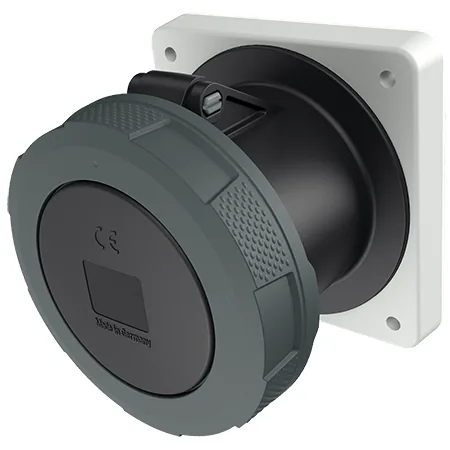

 | 3283 | 125 A | 5 | 500 V | 7h | |
| X-CONTACT, flange 63 A: 110 x 106 mm · IP67 15 | ||||||

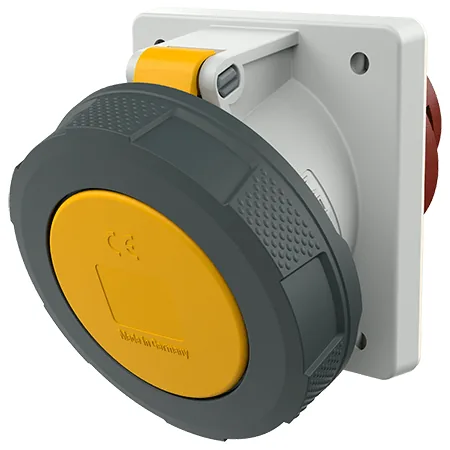

 | 2179A | 63 A | 3 | 110 V | 4h | |
 | 2180A | 63 A | 3 | 230 V | 6h | |

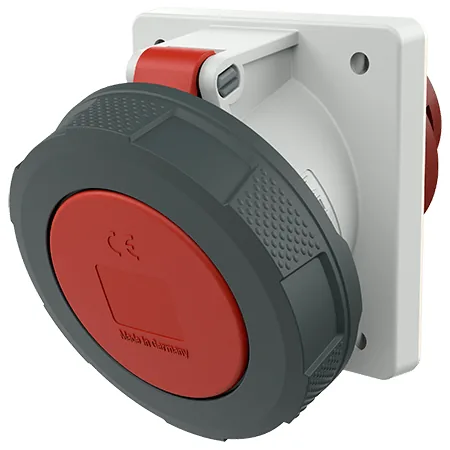

 | 2181A | 63 A | 3 | 400 V | 9h | |
 | 204A | 63 A | 4 | 230 V | 9h | |
 | 205A | 63 A | 4 | 400 V | 6h | |
 | 206A | 63 A | 4 | 500 V | 7h | |
 | 208A | 63 A | 5 | 230 V | 9h | |
 | 209A | 63 A | 5 | 400 V | 6h | |
 | 3507 | 63 A | 5 | 500 V | 7h | |
 | 3575 | 125 A | 3 | 230 V | 6h | |

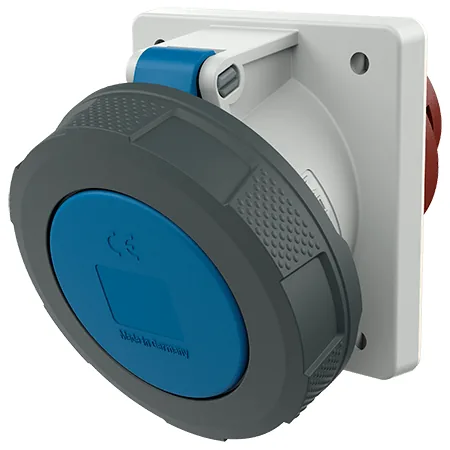

 | 211A | 125 A | 4 | 230 V | 9h | |
 | 212A | 125 A | 4 | 400 V | 6h | |
 | 213A | 125 A | 4 | 500 V | 7h | |
 | 215A | 125 A | 5 | 230 V | 9h | |

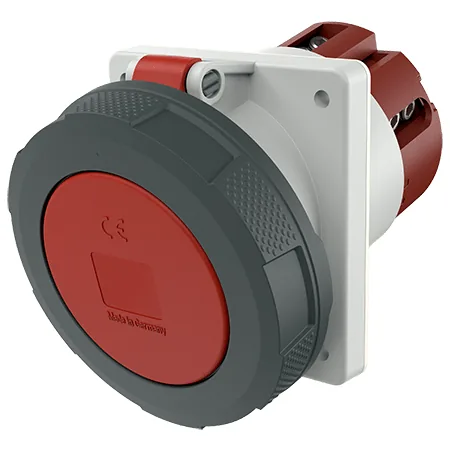

 | 216A | 125 A | 5 | 400 V | 6h | |
| X-CONTACT, highly heat resistant contact carrier · IP44 6 | ||||||
 | 1147A | 63 A | 3 | 230 V | 6h | |
 | 1150A | 63 A | 4 | 230 V | 9h | |

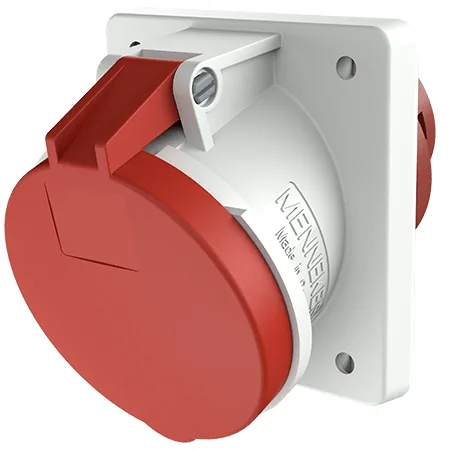

 | 1151A | 63 A | 4 | 400 V | 6h | |

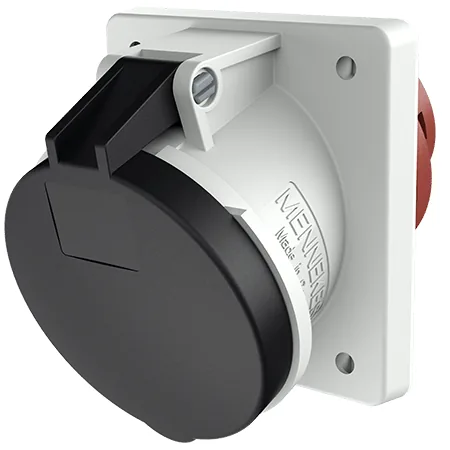

 | 1152A | 63 A | 4 | 500 V | 7h | |
 | 1154A | 63 A | 5 | 230 V | 9h | |
 | 1155A | 63 A | 5 | 400 V | 6h | |
| X-CONTACT, straight · IP44 6 | ||||||

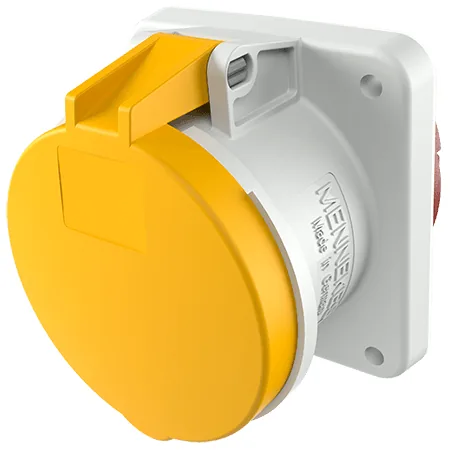

 | 1260A | 63 A | 3 | 110 V | 4h | |
 | 1261A | 63 A | 3 | 230 V | 6h | |

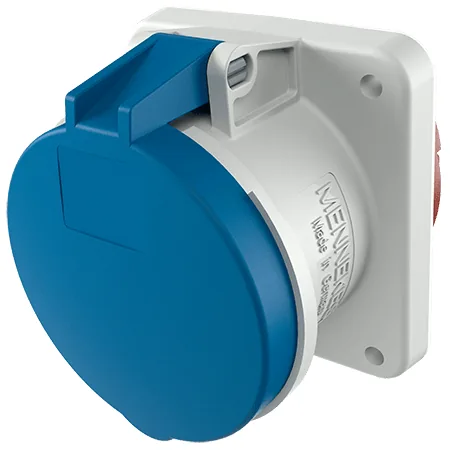

 | 1247A | 63 A | 4 | 230 V | 9h | |

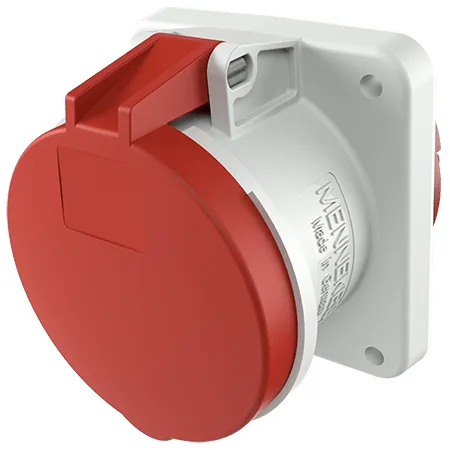

 | 1248A | 63 A | 4 | 400 V | 6h | |

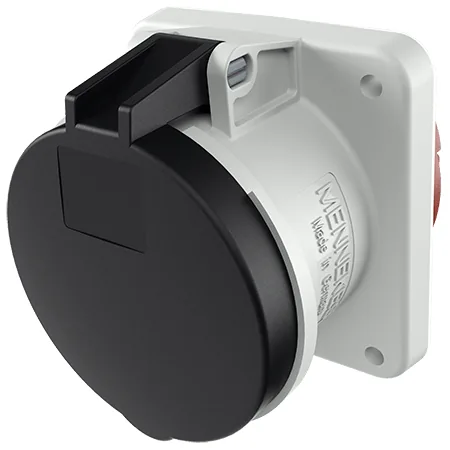

 | 1249A | 63 A | 4 | 500 V | 7h | |
 | 1252A | 63 A | 5 | 400 V | 6h | |
Not sure which part you need? Send us the equipment and rating on WhatsApp and we will recommend the exact part.
No part numbers match those filters.

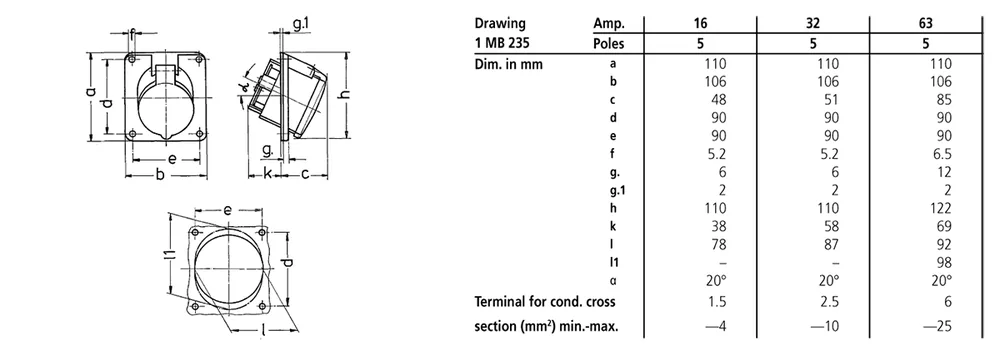

Dimensions
Common questions
What do the position and IP rating mean for Mennekes panel mounted receptacles — X-CONTACT?
Position (the 'h' value) is the clock position of the keyway and earthing contact — a plug and receptacle only mate when their positions match, so quote the position along with the part number. IP44 / IP67 is the enclosure protection class (IEC 60529): the first digit covers solid objects and dust, the second covers water.
How do I order a Mennekes part from this range?
Pick the part number from the table (ampere, poles, voltage and position), then request a quotation. There is no minimum order — single pieces and project quantities are quoted the same way, and we confirm availability and price within 24 hours.
Are these genuine Mennekes products?
Yes. Yash Enterprise is an authorized Mennekes distributor; every part is sourced through the principal brand, with the manufacturer's standard warranty passed through.
