Mennekes Panel mounted receptacles — Standard (IP44 / IP67)
Panel mounted receptacles — Standard from Mennekes, rated 16–32 A at 110 V, 230 V, 400 V, 500 V, >50–500 V, protection IP44 / IP67, conforming to IEC 60309-2. 104 part numbers listed — supplied by Yash Enterprise, an authorized Mennekes distributor in Mumbai.
Key features
- 16 A
- 4 + 5 p
- Straight
All part numbers (104)
Ampere, poles, voltage and position for every variant in this range. Parts are supplied on request. We confirm availability and price within 24 hours.
How the versions in this range differ
| Listed in the catalogue | Flange 16 A, 3 p: 73.5 x 64 mm · IP4429 parts | Flange 16 A, 3 p: 73.5 x 64 mm · IP6718 parts | Flange 16 A: 75 x 75 mm, 85 x 75 mm · IP6718 parts | Small flange dimensions, inclination 20° · IP442 parts | Standard flange dimensions, inclination 20° · IP679 parts | Straight · IP4428 parts |
|---|---|---|---|---|---|---|
| 16 A | ● | ● | ||||
| 4 + 5 p | ● | ● | ||||
| Straight | ● | ● | ||||
| 32 A receptacles optional fitted with auxiliary contact | ● | |||||
| Optional fitted with auxiliary contact | ● | |||||
| Receptacles optional fitted with auxiliary contact | ● | |||||
| Flange / dimensions | flange 16 A; 3 p: 73.5 x 64 mm; 100 x 92 mm; inclination 20° | flange 16 A; 3 p: 73.5 x 64 mm; 100 x 92 mm; inclination 20° | flange 16 A: 75 x 75 mm; 85 x 75 mm | small flange dimensions; inclination 20° | standard flange dimensions; inclination 20° | — |
● = listed in the manufacturer catalogue for that version; a blank cell means it is not listed there — ask us if you need to confirm a feature. Rating and IP differences are shown in each heading and in the table below.
| Part no. | Ampere | Poles | Voltage | Position | Quote | |
|---|---|---|---|---|---|---|
| Flange 16 A, 3 p: 73.5 x 64 mm · IP44 29 | ||||||

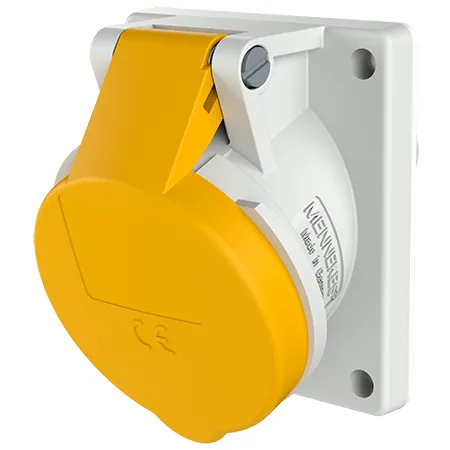

 | 1462 | 16 A | 3 | 110 V | 4h | |

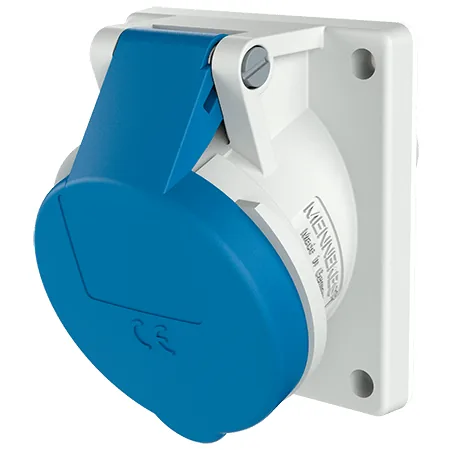

 | 1463 | 16 A | 3 | 230 V | 6h | |
 | 1464 | 16 A | 3 | 400 V | 9h | |

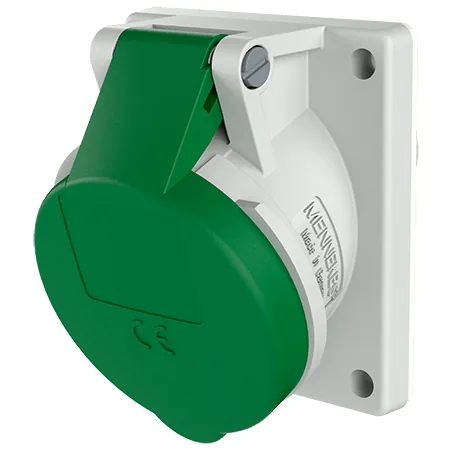

 | 3186 | 16 A | 3 | >50–500 V · 100-300 Hz | 10h | |
 | 3187 | 16 A | 3 | >50–500 V · 300-500 Hz | 2h | |
 | 1466 | 16 A | 4 | 230 V | 9h | |

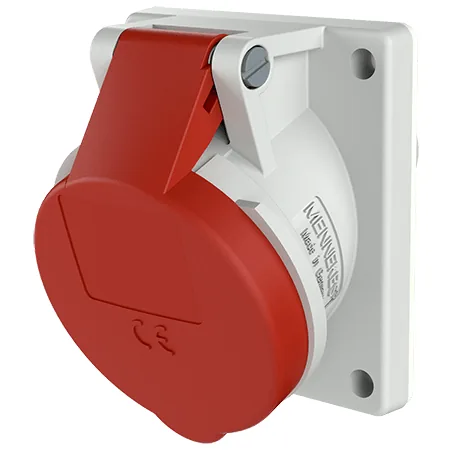

 | 1467 | 16 A | 4 | 400 V | 6h | |
 | 1468 | 16 A | 4 | 500 V | 7h | |
 | 1469 | 16 A | 4 | >50–500 V · 100-300 Hz | 10h | |
 | 1471 | 16 A | 5 | 110 V | 4h | |
 | 1472 | 16 A | 5 | 230 V | 9h | |
 | 1473 | 16 A | 5 | 400 V | 6h | |
 | 3188 | 16 A | 5 | 500 V | 7h | |
 | 3189 | 16 A | 5 | >50–500 V · 100-300 Hz | 10h | |
 | 3190 | 16 A | 5 | >50–500 V · 300-500 Hz | 2h | |

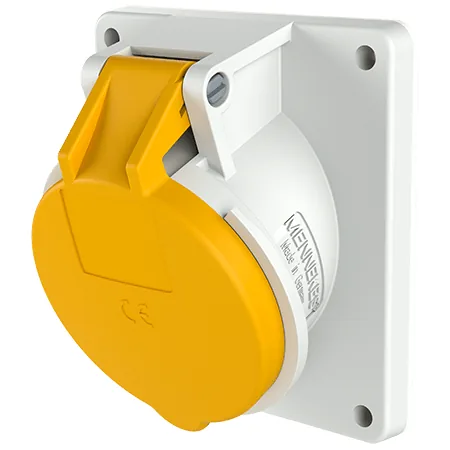

 | 1491 | 32 A | 3 | 110 V | 4h | |
 | 1492 | 32 A | 3 | 230 V | 6h | |
 | 1493 | 32 A | 3 | 400 V | 9h | |
 | 3202 | 32 A | 3 | >50–500 V · 300-500 Hz | 2h | |
 | 1494 | 32 A | 4 | 110 V | 4h | |
 | 1495 | 32 A | 4 | 230 V | 9h | |
 | 1496 | 32 A | 4 | 400 V | 6h | |
 | 1497 | 32 A | 4 | 500 V | 7h | |
 | 1486 | 32 A | 4 | >50–500 V · 100-300 Hz | 10h | |

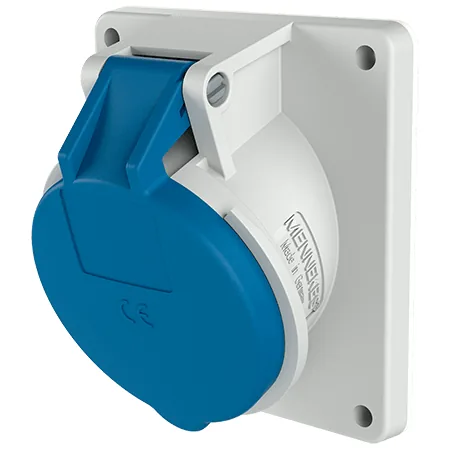

 | 1499 | 32 A | 5 | 230 V | 9h | |
 | 1500 | 32 A | 5 | 400 V | 6h | |

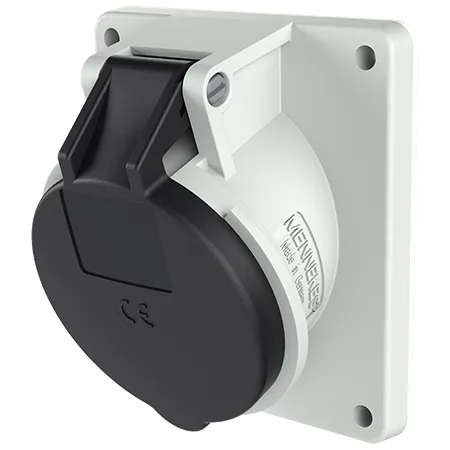

 | 3191 | 32 A | 5 | 500 V | 7h | |
 | 3192 | 32 A | 5 | >50–500 V · 100-300 Hz | 10h | |
 | 3193 | 32 A | 5 | >50–500 V · 300-500 Hz | 2h | |
| Flange 16 A, 3 p: 73.5 x 64 mm · IP67 18 | ||||||

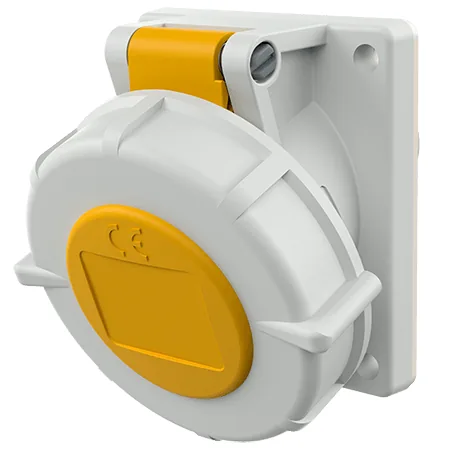

 | 1474 | 16 A | 3 | 110 V | 4h | |
 | 1475 | 16 A | 3 | 230 V | 6h | |

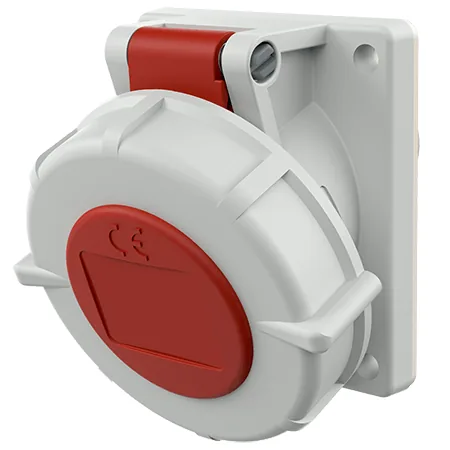

 | 1476 | 16 A | 3 | 400 V | 9h | |
 | 1477 | 16 A | 4 | 110 V | 4h | |
 | 1478 | 16 A | 4 | 230 V | 9h | |
 | 1479 | 16 A | 4 | 400 V | 6h | |

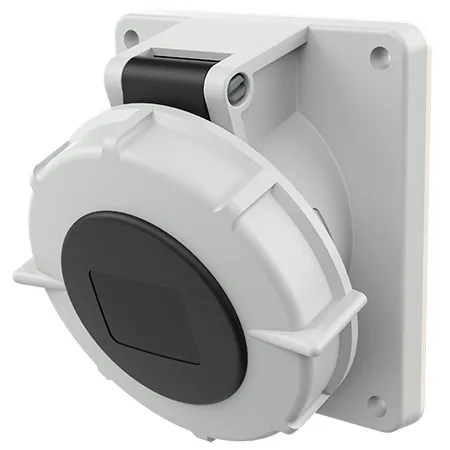

 | 1480 | 16 A | 4 | 500 V | 7h | |
 | 1484 | 16 A | 5 | 230 V | 9h | |
 | 1485 | 16 A | 5 | 400 V | 6h | |

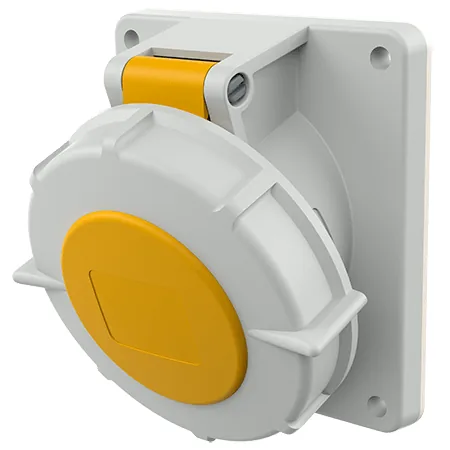

 | 1501 | 32 A | 3 | 110 V | 4h | |
 | 1502 | 32 A | 3 | 230 V | 6h | |
 | 1503 | 32 A | 3 | 400 V | 9h | |
 | 1504 | 32 A | 4 | 110 V | 4h | |
 | 1505 | 32 A | 4 | 230 V | 9h | |
 | 1506 | 32 A | 4 | 400 V | 6h | |
 | 1507 | 32 A | 4 | 500 V | 7h | |
 | 1490 | 32 A | 5 | 230 V | 9h | |
 | 1551 | 32 A | 5 | 400 V | 6h | |
| Flange 16 A: 75 x 75 mm, 85 x 75 mm · IP67 18 | ||||||
 | 217A | 16 A | 3 | 110 V | 4h | |
 | 218A | 16 A | 3 | 230 V | 6h | |
 | 219A | 16 A | 3 | 400 V | 9h | |
 | 221A | 16 A | 4 | 230 V | 9h | |

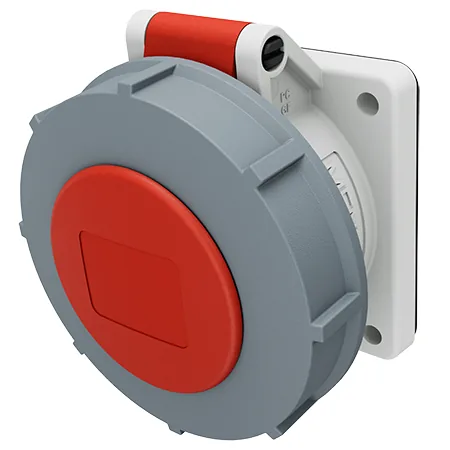

 | 222A | 16 A | 4 | 400 V | 6h | |
 | 223A | 16 A | 4 | 500 V | 7h | |
 | 227A | 16 A | 5 | 230 V | 9h | |

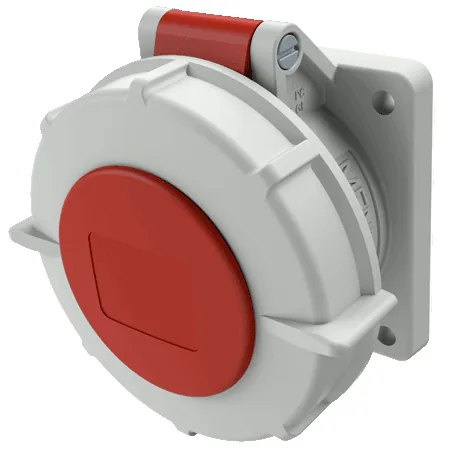

 | 228A | 16 A | 5 | 400 V | 6h | |
 | 229A | 32 A | 3 | 110 V | 4h | |
 | 230A | 32 A | 3 | 230 V | 6h | |
 | 231A | 32 A | 3 | 400 V | 9h | |

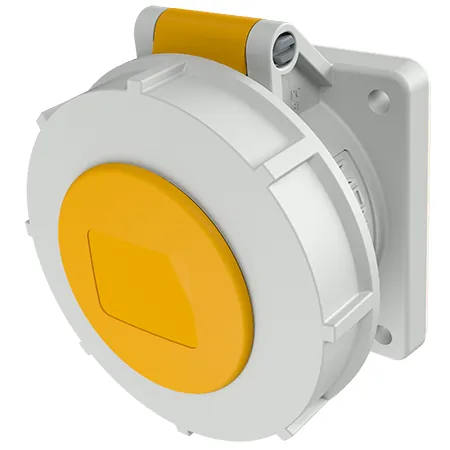

 | 232A | 32 A | 4 | 110 V | 4h | |

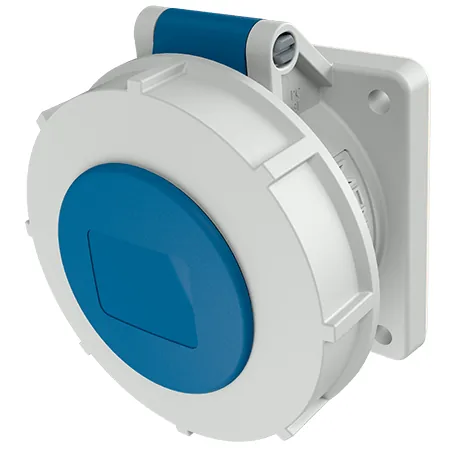

 | 233A | 32 A | 4 | 230 V | 9h | |
 | 234A | 32 A | 4 | 400 V | 6h | |
 | 235A | 32 A | 4 | 500 V | 7h | |
 | 238A | 32 A | 5 | 110 V | 4h | |
 | 239A | 32 A | 5 | 230 V | 9h | |

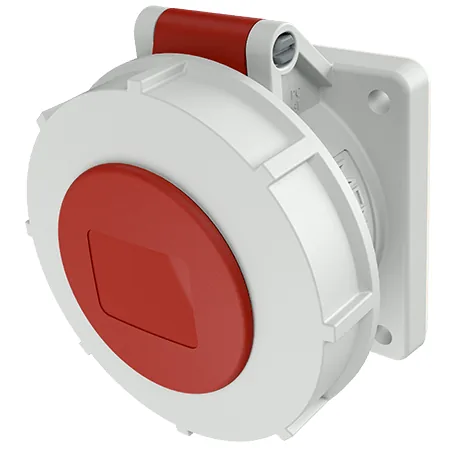

 | 240A | 32 A | 5 | 400 V | 6h | |
| Small flange dimensions, inclination 20° · IP44 2 | ||||||

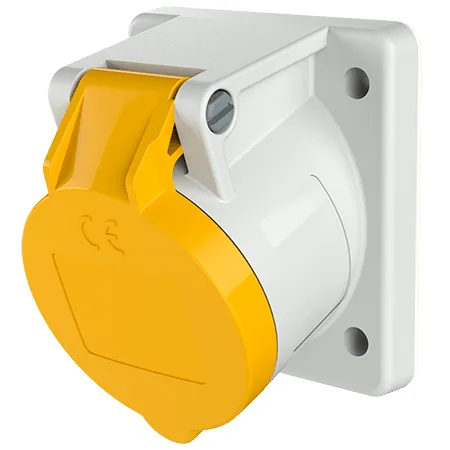

 | 858 | 16 A | 3 | 110 V | 4h | |

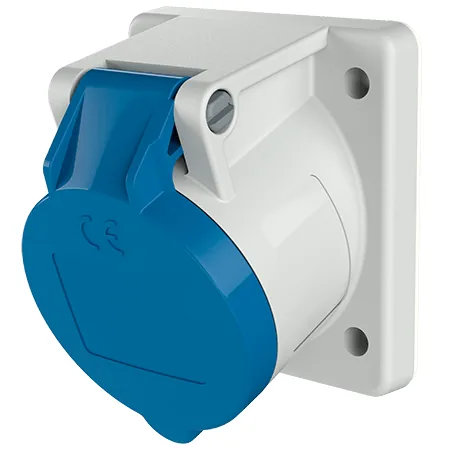

 | 857 | 16 A | 3 | 230 V | 6h | |
| Standard flange dimensions, inclination 20° · IP67 9 | ||||||
 | 903 | 16 A | 3 | 110 V | 4h | |

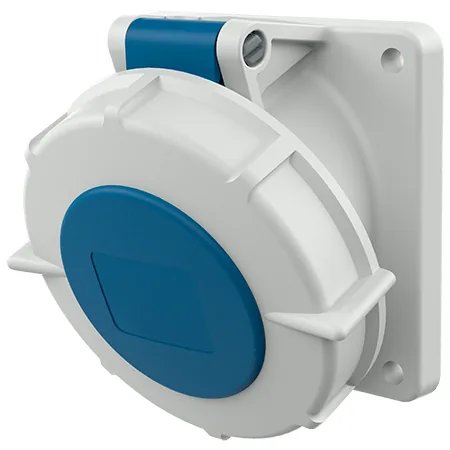

 | 905 | 16 A | 3 | 230 V | 6h | |
 | 1081 | 16 A | 4 | 400 V | 6h | |
 | 1103 | 16 A | 5 | 400 V | 6h | |

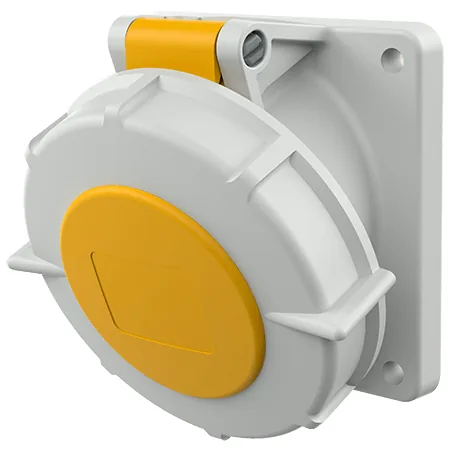

 | 3197 | 32 A | 3 | 110 V | 4h | |
 | 3200 | 32 A | 3 | 230 V | 6h | |
 | 3254 | 32 A | 4 | 400 V | 6h | |
 | 3256 | 32 A | 4 | 500 V | 7h | |

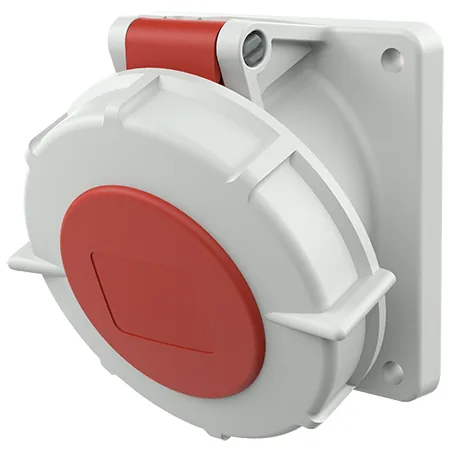

 | 3524 | 32 A | 5 | 400 V | 6h | |
| Straight · IP44 28 | ||||||
 | 1365 | 16 A | 3 | 110 V | 4h | |
 | 1366 | 16 A | 3 | 230 V | 6h | |
 | 1367 | 16 A | 3 | 400 V | 9h | |
| 3055 | 16 A | 3 | >50–500 V · 300-500 Hz | 2h | |
 | 1388 | 16 A | 4 | 110 V | 4h | |
 | 1389 | 16 A | 4 | 230 V | 9h | |
 | 1390 | 16 A | 4 | 400 V | 6h | |
 | 1391 | 16 A | 4 | 500 V | 7h | |
 | 1392 | 16 A | 4 | >50–500 V · 100-300 Hz | 10h | |
 | 1393 | 16 A | 4 | >50–500 V · 300-500 Hz | 2h | |
 | 1384 | 16 A | 5 | 110 V | 4h | |
 | 1386 | 16 A | 5 | 230 V | 9h | |
 | 1385 | 16 A | 5 | 400 V | 6h | |
 | 3057 | 16 A | 5 | 500 V | 7h | |

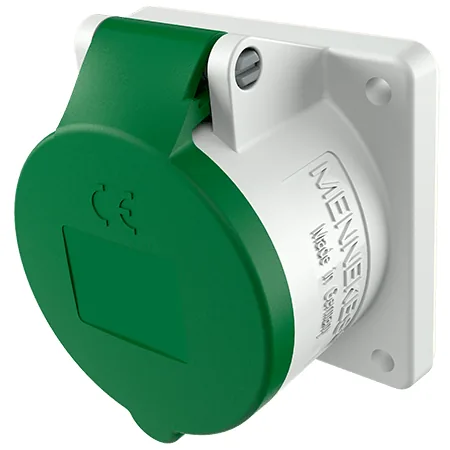

 | 3059 | 16 A | 5 | >50–500 V · 100-300 Hz | 10h | |
 | 3060 | 16 A | 5 | >50–500 V · 300-500 Hz | 2h | |

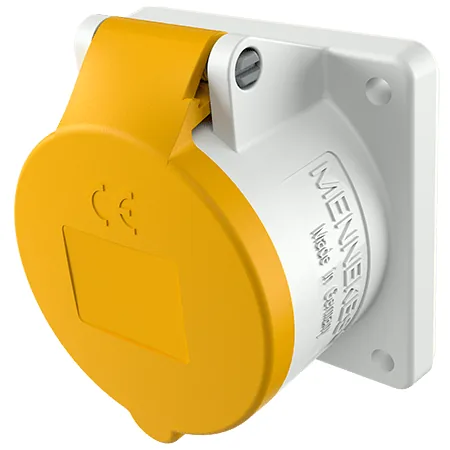

 | 1394 | 32 A | 3 | 110 V | 4h | |
 | 1395 | 32 A | 3 | 230 V | 6h | |

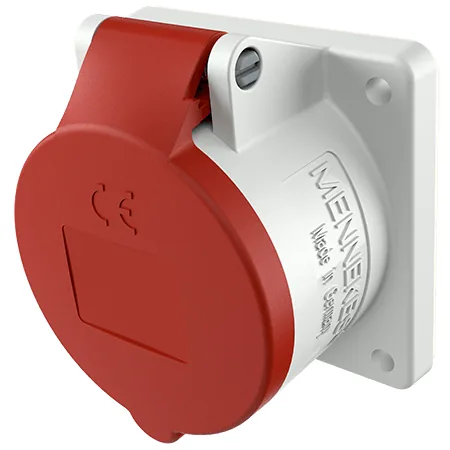

 | 1396 | 32 A | 3 | 400 V | 9h | |
 | 1397 | 32 A | 4 | 110 V | 4h | |
 | 1398 | 32 A | 4 | 230 V | 9h | |
 | 1399 | 32 A | 4 | 400 V | 6h | |
 | 1400 | 32 A | 4 | 500 V | 7h | |
 | 1401 | 32 A | 4 | >50–500 V · 100-300 Hz | 10h | |
 | 3454 | 32 A | 5 | 230 V | 9h | |
 | 3451 | 32 A | 5 | 400 V | 6h | |
 | 3452 | 32 A | 5 | 500 V | 7h | |
 | 3447 | 32 A | 5 | >50–500 V · 300-500 Hz | 2h | |
Not sure which part you need? Send us the equipment and rating on WhatsApp and we will recommend the exact part.
No part numbers match those filters.

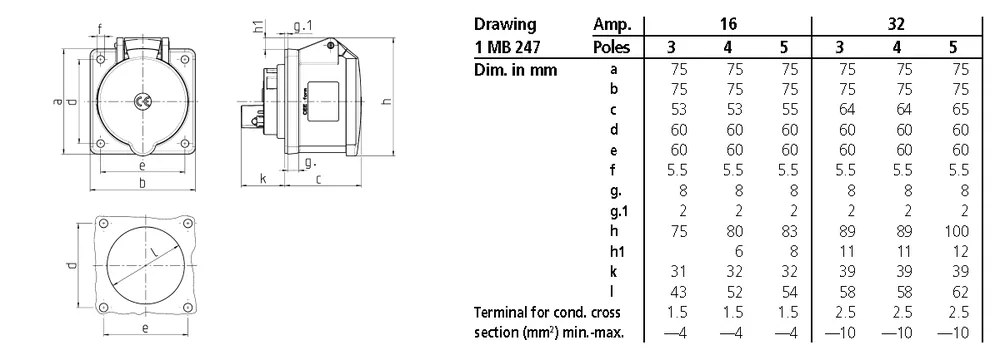

Dimensions
Common questions
What do the position and IP rating mean for Mennekes panel mounted receptacles — Standard?
Position (the 'h' value) is the clock position of the keyway and earthing contact — a plug and receptacle only mate when their positions match, so quote the position along with the part number. IP44 / IP67 is the enclosure protection class (IEC 60529): the first digit covers solid objects and dust, the second covers water.
How do I order a Mennekes part from this range?
Pick the part number from the table (ampere, poles, voltage and position), then request a quotation. There is no minimum order — single pieces and project quantities are quoted the same way, and we confirm availability and price within 24 hours.
Are these genuine Mennekes products?
Yes. Yash Enterprise is an authorized Mennekes distributor; every part is sourced through the principal brand, with the manufacturer's standard warranty passed through.
