Elmeasure Load managers (IP51)
Load managers from Elmeasure, protection IP51. 15 part numbers listed — supplied by Yash Enterprise, an authorized Elmeasure distributor in Mumbai.
Key features
- True RMS, accuracy class 1.0 (IEC 61036 / CBIP 88
- 0.5 optional)
- Simultaneous sampling of volts and amps
- Energy resettable at 999999 kVAh × multiplication factor
- OLD register stores the previously cleared energy value
- IP51 (IP54 front optional)
- Operating temperature −10 °C to +55 °C
All part numbers (15)
Ampere, poles, voltage and position for every variant in this range. Parts are supplied on request. We confirm availability and price within 24 hours.
How the versions in this range differ
| Listed in the catalogue | Little Genius Plus · IP5111 parts | Micro Genius Plus · IP514 parts |
|---|---|---|
| 3-row LED display, 6 digits each | ● | |
| 3-row LED display, quick and easy navigation | ● | |
| 80–300 V AC/DC auxiliary supply | ● | |
| DIN-rail version of the LG+ 5110 | ● | |
| Displays basic (VLL, VLN, A, F), power (W, PF, VA) and energy (Wh, LH, OLD Wh, OLD LH) | ● | |
| Displays more than 25 parameters: basic (VLL, VLN, A, F), power (W, PF, VA), energy (Wh, Hi Amps, OLD Wh, OLD LH, ON time) | ● | |
| Displays the programmed parameter name and value | ● | |
| Displays Wh or VAh (programmable), OLD and user-selectable parameters from basic (VLL, VLN, A, Hz) or W, VA or PF (any 2) | ● | |
| Energy programmable to Wh or VAh | ● | |
| Factory configured Wh | ● | |
| Flange / dimensions | — | Micro Genius Plus version of the LG+ 5110 (96 × 48 mm bezel) |
● = listed in the manufacturer catalogue for that version; a blank cell means it is not listed there — ask us if you need to confirm a feature. Rating and IP differences are shown in each heading and in the table below.
| Part no. | Description | Quote | |
|---|---|---|---|
| Little Genius Plus · IP51 11 | |||
| LG+ 1100 | LG+ 1100 digital multifunction load manager | |
| LG+ 1119 | LG+ 1119 digital multifunction load manager | |
| LG+ 1119L/D | LG+ 1119L/D digital multifunction load manager, LCD / DIN-rail | |

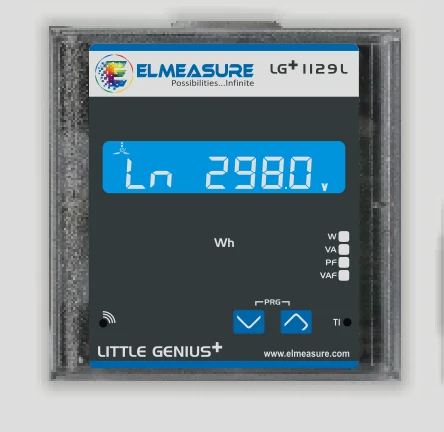

 | LG+ 1129 | LG+ 1129 digital multifunction load manager | |
| LG+ 1129L/D | LG+ 1129L/D digital multifunction load manager, LCD / DIN-rail | |
 | LG+ 3100 | LG+ 3100 digital multifunction load manager | |

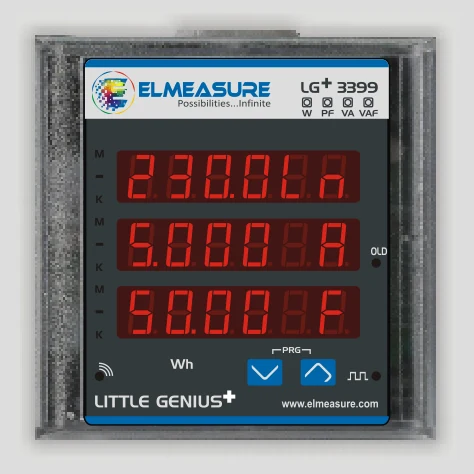

| LG+ 3399 | LG+ 3399 digital multifunction load manager | |
 | LG+ 5110 | LG+ 5110 digital multifunction load manager | |
| LG+ 5110D | LG+ 5110D digital multifunction load manager, DIN-rail | |

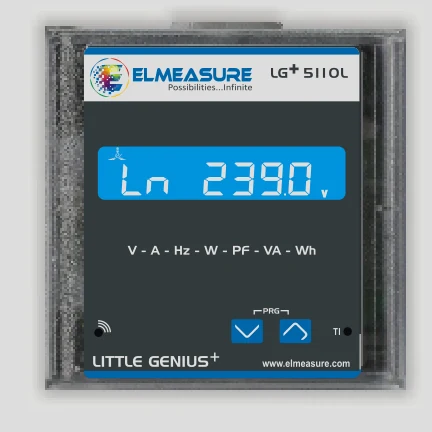

| LG+ 5110L | LG+ 5110L digital multifunction load manager, LCD | |

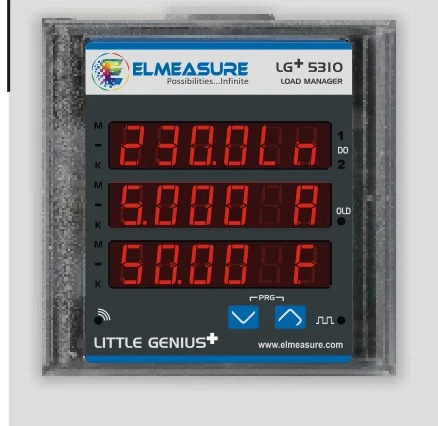

 | LG+ 5310 | LG+ 5310 digital multifunction load manager | |
| Micro Genius Plus · IP51 4 | |||
| uG+ 1100 | µG+ 1100 (Micro Genius Plus) digital multifunction load manager | |

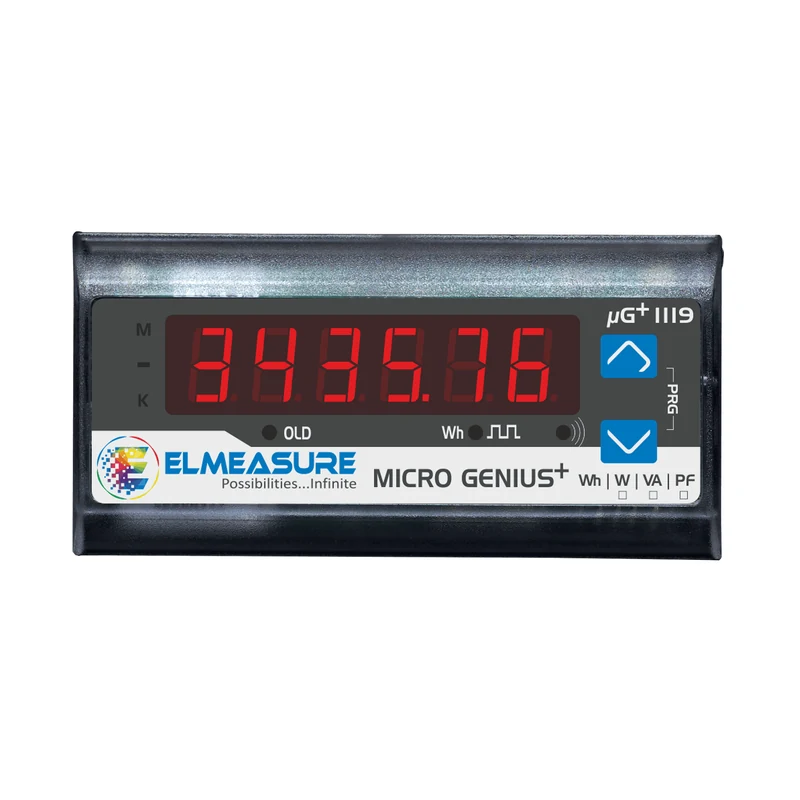

 | uG+ 1119 | µG+ 1119 (Micro Genius Plus) digital multifunction load manager | |
| uG+ 1129 | µG+ 1129 (Micro Genius Plus) digital multifunction load manager | |
 | uG+ 5110 | µG+ 5110 (Micro Genius Plus) digital multifunction load manager | |
Not sure which part you need? Send us the equipment and rating on WhatsApp and we will recommend the exact part.
No part numbers match those filters.
Common questions
What does the IP51 rating mean?
IP51 is the enclosure protection class (IEC 60529): the first digit covers solid objects and dust, the second covers water.
How do I order Elmeasure load managers?
Pick the part from the list, then request a quotation. There is no minimum order — single pieces and project quantities are quoted the same way, and we confirm availability and price within 24 hours.
Are these genuine Elmeasure products?
Yes. Yash Enterprise is an authorized Elmeasure distributor; every part is sourced through the principal brand, with the manufacturer's standard warranty passed through.
