Elmeasure iACCL — Three phase (IP20)
IACCL — Three phase from Elmeasure, rated 32–125 A at 240 V, 415 V, protection IP20, conforming to IEC 60947-6-1. 13 part numbers listed — supplied by Yash Enterprise, an authorized Elmeasure distributor in Mumbai.
Key features
- Microcontroller based automatic source changeover with neutral isolation
- Intelligent re-connection once a trip occurs (over voltage or over load)
- Intelligent tripping: inverse curve (higher the overload, the faster the trip)
- Conforms to IEC 60947-6-1
- IP20 and double insulation (IEC 61010-1), accuracy class 1.0
- Operating temperature −10 °C to +55 °C
- 1-row LED display
- DG: V, A, PF, W, VA, Wh
All part numbers (13)
Ampere, poles, voltage and position for every variant in this range. Parts are supplied on request. We confirm availability and price within 24 hours.
How the versions in this range differ
| Listed in the catalogue | iACCL A300 automatic changeover with current limiter · IP203 parts | iACCL M300 automatic changeover with current limiter · IP206 parts | iACCL M300L automatic changeover with current limiter · IP203 parts | iACCL M330 automatic changeover with current limiter · IP201 parts |
|---|---|---|---|---|
| 1-row LED display | ● | ● | ● | |
| DG maximum current limit 32 A | ● | ● | ● | |
| DG maximum current limit 63 A | ● | ● | ● | |
| DG: V, A, PF, W, VA, Wh | ● | ● | ● | |
| DG transfer time 1–30 s, cycle time 6–150 s, 5 to 10 cycles | ● | ● | ||
| Energy monitoring on DG (Wh/VAh) | ● | ● | ||
| Metering EB: V, A, F | ● | ● | ||
| Under voltage 165–210 V AC, over voltage 240–270 V AC | ● | ● | ||
| Cycle time 7–30 s, 3 cycles (fixed) | ● | |||
| DG current limiting only (EB and voltage settings not available) | ● |
● = listed in the manufacturer catalogue for that version; a blank cell means it is not listed there — ask us if you need to confirm a feature. Rating and IP differences are shown in each heading and in the table below.
| Part no. | Ampere | Voltage | Quote | |||
|---|---|---|---|---|---|---|
| iACCL A300 automatic changeover with current limiter · IP20 3 | ||||||
| iACCL A300 32A | 32 A | 415 V · 50 Hz | |||
| iACCL A300 40A | 40 A | 415 V · 50 Hz | |||
| iACCL A300 63A | 63 A | 415 V · 50 Hz | |||

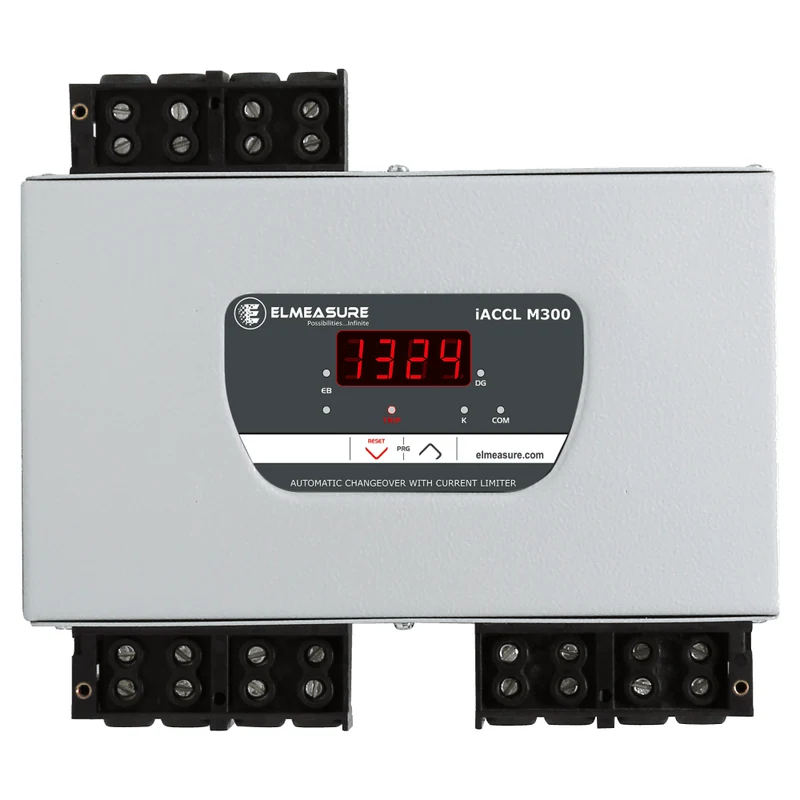

| iACCL M300 automatic changeover with current limiter · IP20 6 | ||||||
| iACCL M300 32A | 32 A | 415 V · 50 Hz | |||
| iACCL M300 40A | 40 A | 415 V · 50 Hz | |||
| iACCL M300 63A | 63 A | 415 V · 50 Hz | |||
 | iACCL M300 80A | 80 A | 415 V · 50 Hz | |||
| iACCL M300 100A | 100 A | 415 V · 50 Hz | |||
| iACCL M300 125A | 125 A | 415 V · 50 Hz | |||

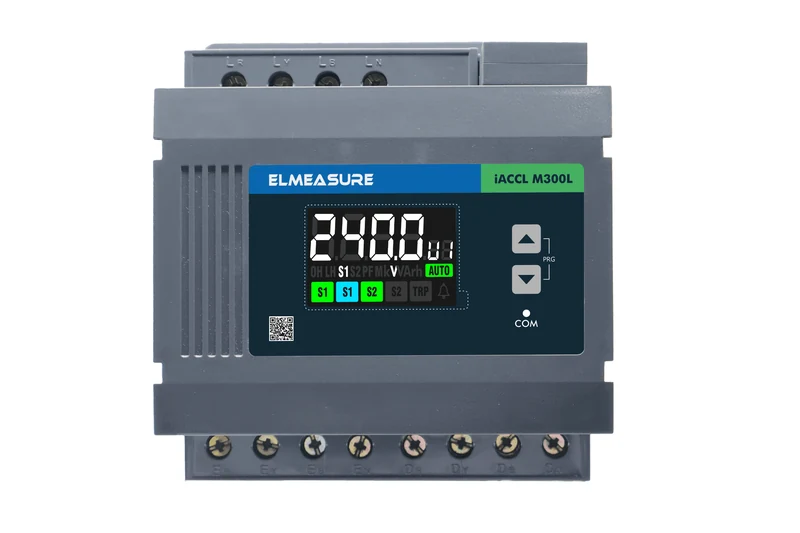

| iACCL M300L automatic changeover with current limiter · IP20 3 | ||||||
 | iACCL M300L 32A | 32 A | 415 V · 50 Hz | |||
| iACCL M300L 40A | 40 A | 415 V · 50 Hz | |||
| iACCL M300L 63A | 63 A | 415 V · 50 Hz | |||

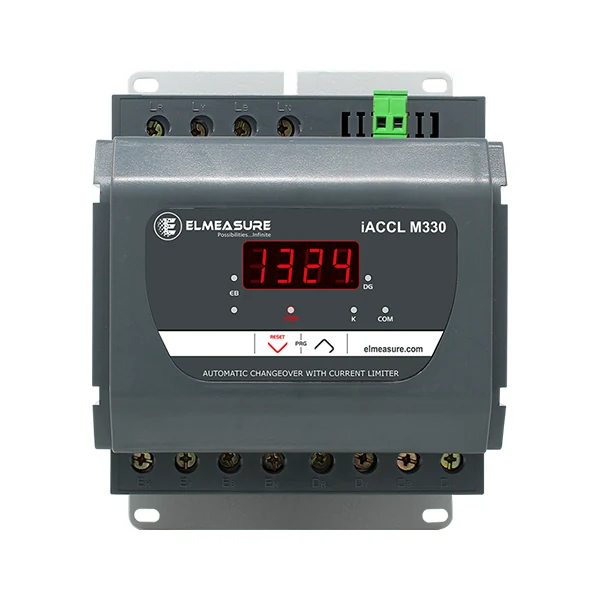

| iACCL M330 automatic changeover with current limiter · IP20 1 | ||||||
 | iACCL M330 40A | 40 A | 240 V · 50 Hz | |||
Not sure which part you need? Send us the equipment and rating on WhatsApp and we will recommend the exact part.
No part numbers match those filters.
Common questions
What does the IP20 rating mean?
IP20 is the enclosure protection class (IEC 60529): the first digit covers solid objects and dust, the second covers water.
How do I order Elmeasure iACCL?
Pick the part from the list, then request a quotation. There is no minimum order — single pieces and project quantities are quoted the same way, and we confirm availability and price within 24 hours.
Are these genuine Elmeasure products?
Yes. Yash Enterprise is an authorized Elmeasure distributor; every part is sourced through the principal brand, with the manufacturer's standard warranty passed through.
