Elmeasure iACCL — Single phase (IP20)
IACCL — Single phase from Elmeasure, rated 32 A at 240 V, protection IP20, conforming to IEC 60947-6-1. 4 part numbers listed — supplied by Yash Enterprise, an authorized Elmeasure distributor in Mumbai.
Key features
- DG maximum current limit 32 A
- EB/DG input source interchangeability
- Utilisation category AC1
- IP20 and double insulation (IEC 61010-1), accuracy class 1.0
- Wire gauge 11 AWG, torque 1 N·m
- Conforms to IEC 60947-6-1
- Overcurrent trip on DG
- Field configuration through CFG 400 configurator
All part numbers (4)
Ampere, poles, voltage and position for every variant in this range. Parts are supplied on request. We confirm availability and price within 24 hours.
How the versions in this range differ
| Listed in the catalogue | iACCL 400 automatic changeover with current limiter · IP201 parts | iACCL 400C automatic changeover with current limiter · IP201 parts | iACCL A400 automatic changeover with current limiter · IP201 parts | iACCL M400 automatic changeover with current limiter · IP201 parts |
|---|---|---|---|---|
| DIN rail mounting | ● | ● | ● | |
| Field configuration through CFG 400 configurator | ● | ● | ||
| Overcurrent trip on DG | ● | ● | ||
| 3-digit LED display | ● | |||
| 4-digit LED display | ● | |||
| Contactor based with off-load switching | ● | |||
| DG current metering | ● | |||
| DG metering: current, voltage, Wh/VAh | ● | |||
| DG transfer time 1–30 s, cycle time 6–150 s, 5 to 10 cycles | ● | |||
| DG transfer time 2–30 s, cycle time 7–30 s, 4 cycles | ● |
● = listed in the manufacturer catalogue for that version; a blank cell means it is not listed there — ask us if you need to confirm a feature. Rating and IP differences are shown in each heading and in the table below.
| Part no. | Voltage | Quote | |||
|---|---|---|---|---|---|
| iACCL 400 automatic changeover with current limiter · IP20 1 | |||||
| iACCL 400 | 240 V · 50 Hz | |||
| iACCL 400C automatic changeover with current limiter · IP20 1 | |||||
| iACCL 400C | 240 V · 50 Hz | |||
| iACCL A400 automatic changeover with current limiter · IP20 1 | |||||
| iACCL A400 | 240 V · 50 Hz | |||

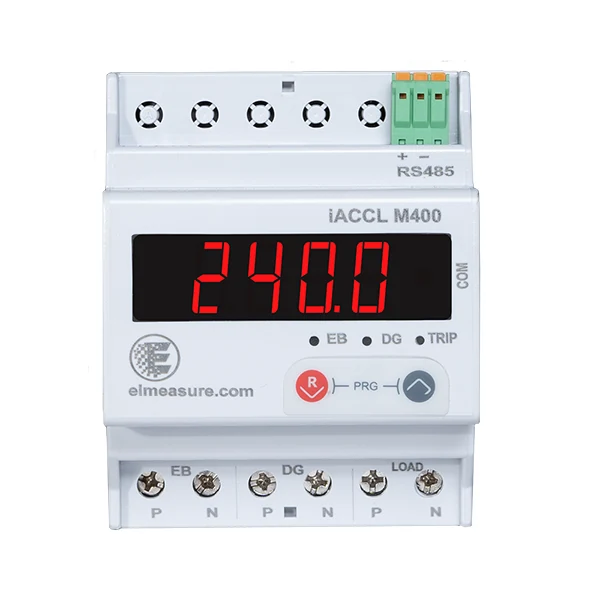

| iACCL M400 automatic changeover with current limiter · IP20 1 | |||||
 | iACCL M400 | 240 V · 50 Hz | |||
Not sure which part you need? Send us the equipment and rating on WhatsApp and we will recommend the exact part.
No part numbers match those filters.
Common questions
What does the IP20 rating mean?
IP20 is the enclosure protection class (IEC 60529): the first digit covers solid objects and dust, the second covers water.
How do I order Elmeasure iACCL?
Pick the part from the list, then request a quotation. There is no minimum order — single pieces and project quantities are quoted the same way, and we confirm availability and price within 24 hours.
Are these genuine Elmeasure products?
Yes. Yash Enterprise is an authorized Elmeasure distributor; every part is sourced through the principal brand, with the manufacturer's standard warranty passed through.
