Elmeasure Busbar temperature monitoring (IP20)
Busbar temperature monitoring from Elmeasure, protection IP20. 2 part numbers listed — supplied by Yash Enterprise, an authorized Elmeasure distributor in Mumbai.
All part numbers (2)
Ampere, poles, voltage and position for every variant in this range. Parts are supplied on request. We confirm availability and price within 24 hours.
How the versions in this range differ
| Listed in the catalogue | TM 2700 wireless busbar temperature monitoring · IP201 parts | Wireless busbar temperature sensor for TM series (strap-on1 parts |
|---|---|---|
| 1 digital relay output (AC 220 V, 5 A, NO/NC) | ● | |
| Accuracy ±1 °C (0–75 °C), ±2 °C over the full range | ● | |
| Battery life 8 years | ● | |
| Default alarm limits low −35 °C, high +85 °C | ● | |
| Default alert limits low −25 °C, high +65 °C | ● | |
| Modbus RTU over RS-485, communication distance up to 1200 m without repeater, baud rates 1200–9600 | ● | |
| Operating temperature −10 °C to +70 °C, up to 90% RH non-condensing | ● | |
| Panel-mounted FID, up to 27 wireless sensors | ● | |
| Temperature measurement range −25 °C to +100 °C | ● | |
| Temperature sampling about every 25 seconds | ● | |
| Flange / dimensions | — | strap length 385 mm |
● = listed in the manufacturer catalogue for that version; a blank cell means it is not listed there — ask us if you need to confirm a feature. Rating and IP differences are shown in each heading and in the table below.
| Part no. | Quote | ||
|---|---|---|---|
| TM 2700 wireless busbar temperature monitoring · IP20 1 | |||
| TM 2700 | ||

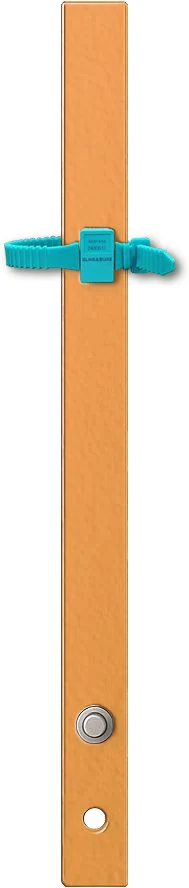

| Wireless busbar temperature sensor for TM series (strap-on 1 | |||
 | TM wireless sensor | ||
Not sure which part you need? Send us the equipment and rating on WhatsApp and we will recommend the exact part.
No part numbers match those filters.
Common questions
What does the IP20 rating mean?
IP20 is the enclosure protection class (IEC 60529): the first digit covers solid objects and dust, the second covers water.
How do I order Elmeasure busbar temperature monitoring?
Pick the part from the list, then request a quotation. There is no minimum order — single pieces and project quantities are quoted the same way, and we confirm availability and price within 24 hours.
Are these genuine Elmeasure products?
Yes. Yash Enterprise is an authorized Elmeasure distributor; every part is sourced through the principal brand, with the manufacturer's standard warranty passed through.
