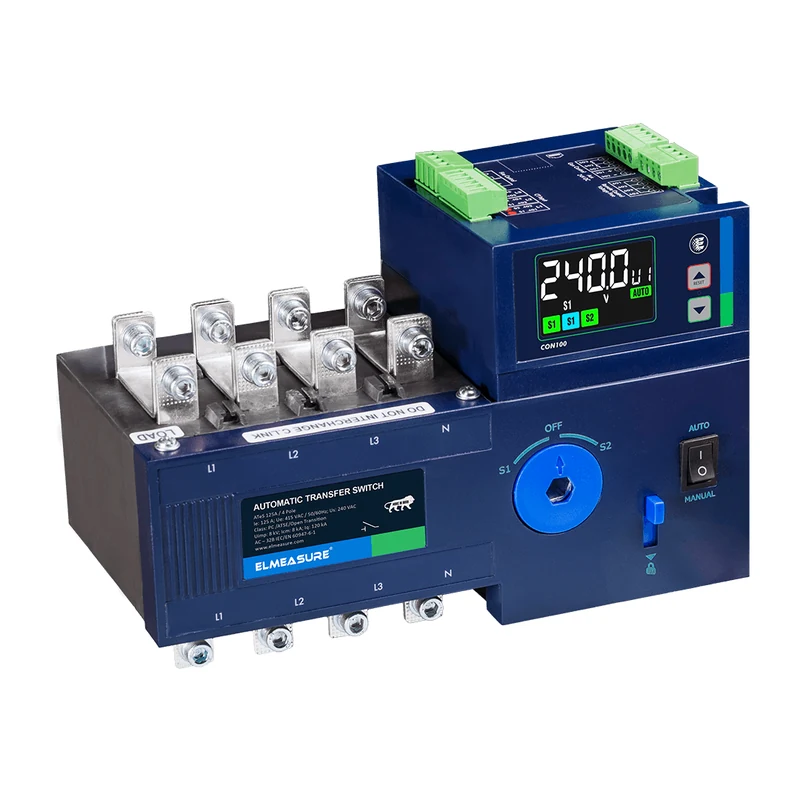

Elmeasure Automatic changeover switches — ATeS
Automatic changeover switches — ATeS from Elmeasure, rated 40–3200 A at 415 V, conforming to IEC 60947-6-1. 18 part numbers listed — supplied by Yash Enterprise, an authorized Elmeasure distributor in Mumbai.
Key features
- Microprocessor based ATS with in-built AMF controller
- Automatic DG start/stop on mains failure
- PC class ATS, utilisation category AC-32B
- Three operating positions: source 1, centre off, source 2
- Rated insulation voltage 690 V (power circuit), 500 V (control circuit), impulse withstand 12 kV
- Rated control supply 230 V / 50 Hz, motor operating voltage 220 V AC (160–300 V AC), auxiliary DC 12–24 V
- Monitors V, A, F, PF, kW, kWh, ON hours and load hours
- Auto / Manual / Remote mode, manual emergency operation on load
All part numbers (18)
Ampere, poles, voltage and position for every variant in this range. Parts are supplied on request. We confirm availability and price within 24 hours.
| Part no. | Ampere | Poles | Voltage | Quote | |
|---|---|---|---|---|---|
| ATeS 40A | 40 A | 4 | 415 V | |
| ATeS 63A | 63 A | 4 | 415 V | |
| ATeS 80A | 80 A | 4 | 415 V | |
| ATeS 100A | 100 A | 4 | 415 V | |
| ATeS 125A | 125 A | 4 | 415 V | |
| ATeS 160A | 160 A | 4 | 415 V | |
| ATeS 200A | 200 A | 4 | 415 V | |
| ATeS 250A | 250 A | 4 | 415 V | |
| ATeS 315A | 315 A | 4 | 415 V | |
| ATeS 400A | 400 A | 4 | 415 V | |
| ATeS 630A | 630 A | 4 | 415 V | |
| ATeS 800A | 800 A | 4 | 415 V | |
| ATeS 1000A | 1000 A | 4 | 415 V | |
| ATeS 1250A | 1250 A | 4 | 415 V | |
| ATeS 1600A | 1600 A | 4 | 415 V | |
| ATeS 2000A | 2000 A | 4 | 415 V | |
| ATeS 2500A | 2500 A | 4 | 415 V | |
| ATeS 3200A | 3200 A | 4 | 415 V |
Not sure which part you need? Send us the equipment and rating on WhatsApp and we will recommend the exact part.
No part numbers match those filters.
Common questions
How do I order Elmeasure automatic changeover switches?
Pick the part from the list, then request a quotation. There is no minimum order — single pieces and project quantities are quoted the same way, and we confirm availability and price within 24 hours.
Are these genuine Elmeasure products?
Yes. Yash Enterprise is an authorized Elmeasure distributor; every part is sourced through the principal brand, with the manufacturer's standard warranty passed through.
