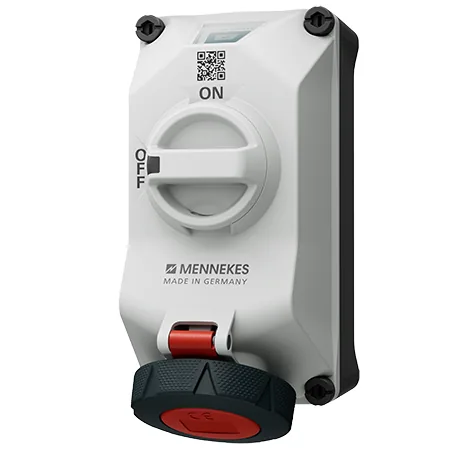

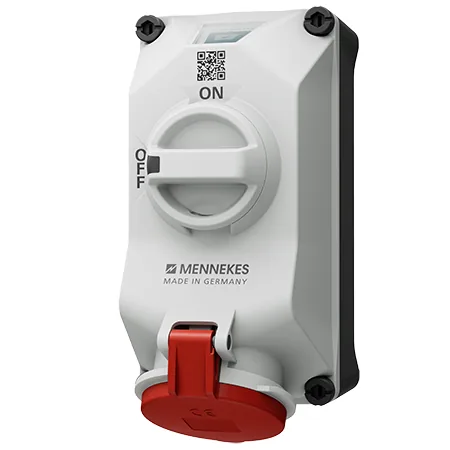

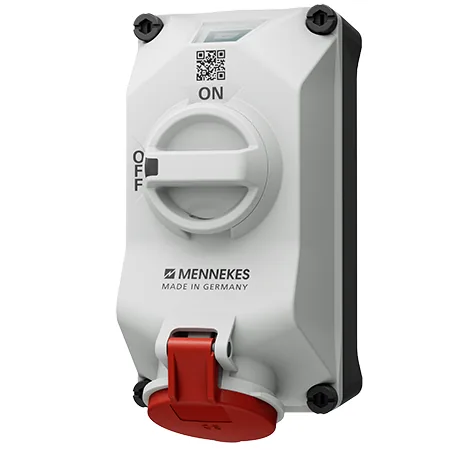

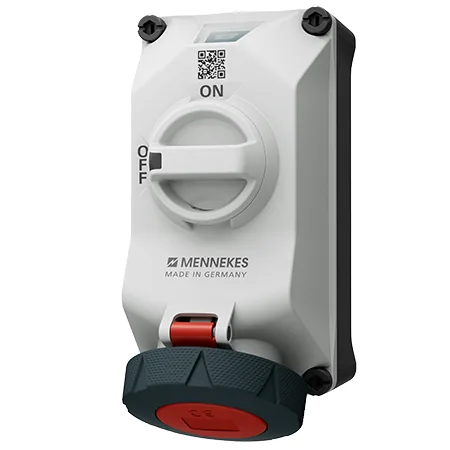

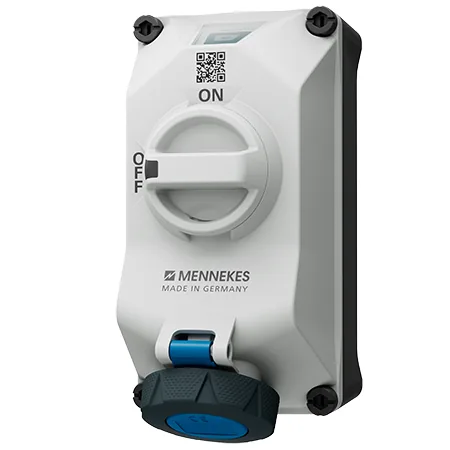

Mennekes Wall mounted receptacles — DUOi with LED voltage indicator (IP44 / IP67 / IP69)
Wall mounted receptacles — DUOi with LED voltage indicator from Mennekes, rated 16–32 A at 230 V, 400 V, protection IP44 / IP67 / IP69, conforming to IEC 60309-2. 25 part numbers listed — supplied by Yash Enterprise, an authorized Mennekes distributor in Mumbai.
Key features
- LED voltage indicator
- Pre-wired for installation
- X-CONTACT
- Mechanical DUO-interlock
- Switched
- 3 pole switch
- Receptacles can be padlocked
- Sealed against dust
All part numbers (25)
Ampere, poles, voltage and position for every variant in this range. Parts are supplied on request. We confirm availability and price within 24 hours.
How the versions in this range differ
| Listed in the catalogue | Wall mounted receptacle DUOi R · IP67 / IP696 parts | Wall mounted receptacle DUOi · IP449 parts | Wall mounted receptacle DUOi · IP67 / IP6910 parts |
|---|---|---|---|
| 3 pole switch | ● | ● | |
| Receptacles can be padlocked | ● | ● | |
| Sealed against dust | ● | ● | |
| Switched | ● | ● | |
| Temporary submersion and high-pressure cleaning | ● | ● | |
| Highly heat resistant contact carrier | ● | ||
| Highly resistant to chemicals | ● | ||
| Nickel plated contacts | ● |
● = listed in the manufacturer catalogue for that version; a blank cell means it is not listed there — ask us if you need to confirm a feature. Rating and IP differences are shown in each heading and in the table below.
| Part no. | Ampere | Poles | Voltage | Position | Quote | |
|---|---|---|---|---|---|---|
| Wall mounted receptacle DUOi R · IP67 / IP69 6 | ||||||
| 5812306T | 16 A | 3 | 230 V | 6h | ||
| 5812406T | 16 A | 4 | 400 V | 6h | ||
| 5812506T | 16 A | 5 | 400 V | 6h | ||
| 5814306T | 32 A | 3 | 230 V | 6h | ||
| 5814406T | 32 A | 4 | 400 V | 6h | ||
| 5814506T | 32 A | 5 | 400 V | 6h | ||
| Wall mounted receptacle DUOi · IP44 9 | ||||||
| 5611306G | 16 A | 3 | 230 V | 6h | |
 | 5611409G | 16 A | 4 | 230 V | 9h | |
 | 5611406G | 16 A | 4 | 400 V | 6h | |
 | 5611506G | 16 A | 5 | 400 V | 6h | |
 | 5613306G | 32 A | 3 | 230 V | 6h | |
 | 5613409G | 32 A | 4 | 230 V | 9h | |
 | 5613406G | 32 A | 4 | 400 V | 6h | |
| 5613509G | 32 A | 5 | 230 V | 9h | ||
 | 5613506G | 32 A | 5 | 400 V | 6h | |
| Wall mounted receptacle DUOi · IP67 / IP69 10 | ||||||
 | 5612306G | 16 A | 3 | 230 V | 6h | |
 | 5612409G | 16 A | 4 | 230 V | 9h | |
 | 5612406G | 16 A | 4 | 400 V | 6h | |
| 5612509G | 16 A | 5 | 230 V | 9h | ||
 | 5612506G | 16 A | 5 | 400 V | 6h | |
 | 5614306G | 32 A | 3 | 230 V | 6h | |
| 5614409G | 32 A | 4 | 230 V | 9h | ||
 | 5614406G | 32 A | 4 | 400 V | 6h | |
| 5614509G | 32 A | 5 | 230 V | 9h | ||
 | 5614506G | 32 A | 5 | 400 V | 6h | |
Not sure which part you need? Send us the equipment and rating on WhatsApp and we will recommend the exact part.
No part numbers match those filters.

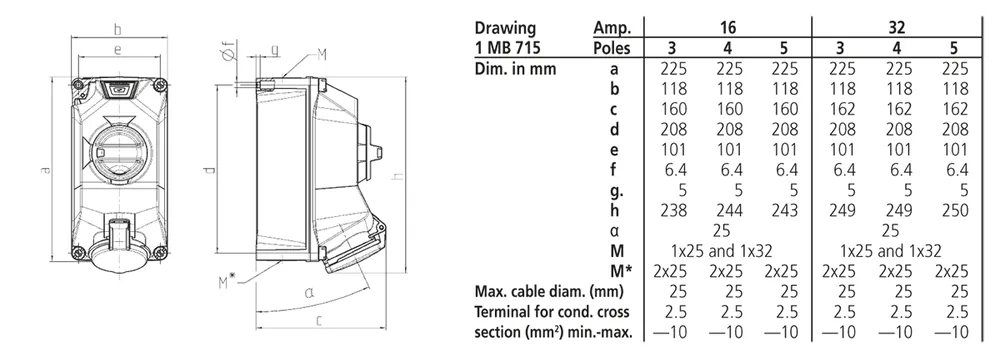

Dimensions
Common questions
What do the position and IP rating mean for Mennekes wall mounted receptacles — DUOi with LED voltage indicator?
Position (the 'h' value) is the clock position of the keyway and earthing contact — a plug and receptacle only mate when their positions match, so quote the position along with the part number. IP44 / IP67 / IP69 is the enclosure protection class (IEC 60529): the first digit covers solid objects and dust, the second covers water.
How do I order a Mennekes part from this range?
Pick the part number from the table (ampere, poles, voltage and position), then request a quotation. There is no minimum order — single pieces and project quantities are quoted the same way, and we confirm availability and price within 24 hours.
Are these genuine Mennekes products?
Yes. Yash Enterprise is an authorized Mennekes distributor; every part is sourced through the principal brand, with the manufacturer's standard warranty passed through.
