Mennekes Plugs — PowerTOP Xtra (IP54 / IP67 / IP69)
Plugs — PowerTOP Xtra from Mennekes, rated 16–125 A at 110 V, 230 V, 400 V, 500 V, >50–500 V, protection IP54 / IP67 / IP69, conforming to IEC 60309-2. 128 part numbers listed — supplied by Yash Enterprise, an authorized Mennekes distributor in Mumbai.
Key features
- Ergonomic enclosure design with nubbed grip zones
- Highly heat resistant contact carrier
- Nickel plated contacts
- Screw connection technology ErgoCONTACT
- Rubberised cable gland with sealing
- Strain relief and protection against kinking
- Rubberised bayonet ring
- Sealed against dust
All part numbers (128)
Ampere, poles, voltage and position for every variant in this range. Parts are supplied on request. We confirm availability and price within 24 hours.
How the versions in this range differ
| Listed in the catalogue | Plug PowerTOP Xtra R with ErgoCONTACT · IP5433 parts | Plug PowerTOP Xtra R with ErgoCONTACT · IP67 / IP6929 parts | Plug PowerTOP Xtra S with SafeCONTACT · IP543 parts | Plug PowerTOP Xtra with ErgoCONTACT · IP5420 parts | Plug PowerTOP Xtra with ErgoCONTACT · IP67 / IP6911 parts | Plug PowerTOP Xtra · IP547 parts | Plug PowerTOP Xtra · IP6725 parts |
|---|---|---|---|---|---|---|---|
| Ergonomic enclosure design with nubbed grip zones | ● | ● | ● | ● | ● | ||
| Highly heat resistant contact carrier | ● | ● | ● | ● | |||
| Nickel plated contacts | ● | ● | ● | ● | |||
| Screw connection technology ErgoCONTACT | ● | ● | ● | ● | |||
| Strain relief and protection against kinking | ● | ● | ● | ● | |||
| Rubberised cable gland with sealing | ● | ● | ● | ||||
| Cable gland and sealing | ● | ● | |||||
| Frame terminals | ● | ● | |||||
| Rubberised bayonet ring | ● | ● | |||||
| Rubberised grip area | ● | ● |
● = listed in the manufacturer catalogue for that version; a blank cell means it is not listed there — ask us if you need to confirm a feature. Rating and IP differences are shown in each heading and in the table below.
| Part no. | Ampere | Poles | Voltage | Position | Quote | |
|---|---|---|---|---|---|---|
| Plug PowerTOP Xtra R with ErgoCONTACT · IP54 33 | ||||||
| 13550available from 01.06.2024 | 16 A | 3 | 110 V | 4h | ||
| 13551available from 01.06.2024 | 16 A | 3 | 230 V | 6h | ||
| 13552available from 01.06.2024 | 16 A | 3 | 400 V | 9h | ||
| 13553available from 01.06.2024 | 16 A | 3 | 500 V | 7h | ||
| 13554available from 01.06.2024 | 16 A | 3 | >50–500 V · 100-300 Hz | 10h | ||
| 13555available from 01.06.2024 | 16 A | 3 | >50–500 V · 300-500 Hz | 2h | ||
| 13556available from 01.06.2024 | 16 A | 4 | 110 V | 4h | ||
| 13557available from 01.06.2024 | 16 A | 4 | 230 V | 9h | ||
| 13558available from 01.06.2024 | 16 A | 4 | 400 V | 6h | ||
| 13559available from 01.06.2024 | 16 A | 4 | 500 V | 7h | ||
| 13560available from 01.06.2024 | 16 A | 4 | >50–500 V · 300-500 Hz | 2h | ||
| 13561 | 16 A | 5 | 110 V | 4h | ||
| 13562 | 16 A | 5 | 230 V | 9h | ||
 | 13563 | 16 A | 5 | 400 V | 6h | |
| 13564 | 16 A | 5 | 500 V | 7h | ||
| 13565 | 16 A | 5 | >50–500 V · 100-300 Hz | 10h | ||
| 13567 | 16 A | 5 | >50–500 V · 300-500 Hz | 2h | ||
| 13572available from 01.06.2024 | 32 A | 3 | 110 V | 4h | ||
| 13573available from 01.06.2024 | 32 A | 3 | 230 V | 6h | ||
| 13574available from 01.06.2024 | 32 A | 3 | 400 V | 9h | ||
| 13575available from 01.06.2024 | 32 A | 3 | >50–500 V · 100-300 Hz | 10h | ||
| 13576available from 01.06.2024 | 32 A | 3 | >50–500 V · 300-500 Hz | 2h | ||
| 13577available from 01.06.2024 | 32 A | 4 | 110 V | 4h | ||
| 13578available from 01.06.2024 | 32 A | 4 | 230 V | 9h | ||
| 13579available from 01.06.2024 | 32 A | 4 | 400 V | 6h | ||
| 13580available from 01.06.2024 | 32 A | 4 | 500 V | 7h | ||
| 13581available from 01.06.2024 | 32 A | 4 | >50–500 V · 300-500 Hz | 2h | ||
| 13582 | 32 A | 5 | 110 V | 4h | ||
| 13583 | 32 A | 5 | 230 V | 9h | ||

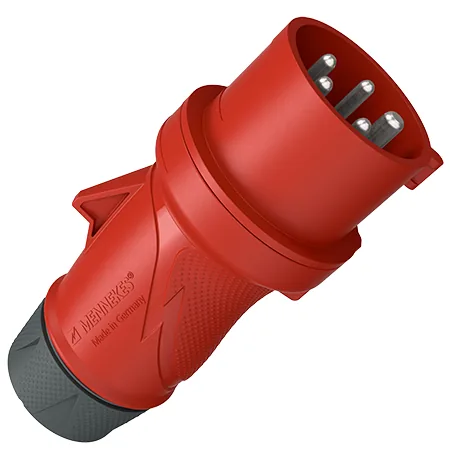

 | 13584 | 32 A | 5 | 400 V | 6h | |
| 13585 | 32 A | 5 | 500 V | 7h | ||
| 13586 | 32 A | 5 | >50–500 V · 100-300 Hz | 10h | ||
| 13587 | 32 A | 5 | >50–500 V · 300-500 Hz | 2h | ||
| Plug PowerTOP Xtra R with ErgoCONTACT · IP67 / IP69 29 | ||||||
 | 13630available from 01.08.2024 | 16 A | 3 | 110 V | 4h | |
 | 13631available from 01.08.2024 | 16 A | 3 | 230 V | 6h | |

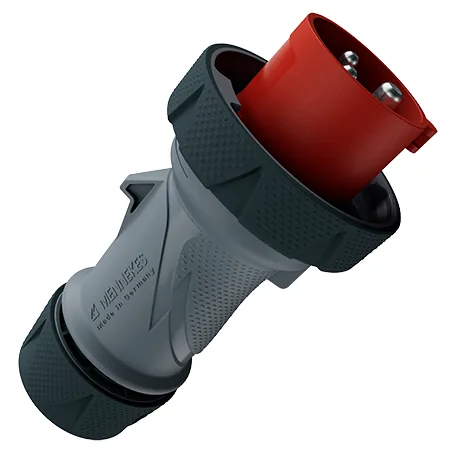

 | 13632available from 01.08.2024 | 16 A | 3 | 400 V | 9h | |
| 13633available from 01.08.2024 | 16 A | 3 | 500 V | 7h | ||
| 13634available from 01.08.2024 | 16 A | 3 | >50–500 V · 100-300 Hz | 10h | ||

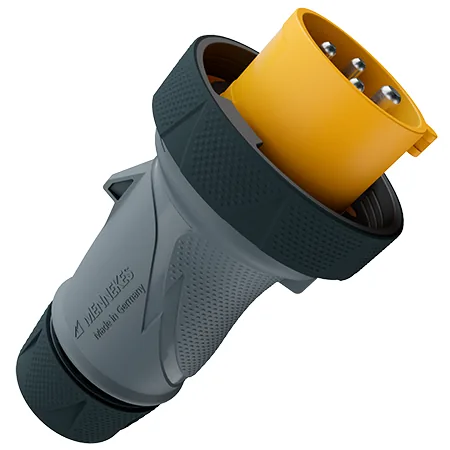

 | 13635available from 01.11.2024 | 16 A | 4 | 110 V | 4h | |
 | 13636available from 01.11.2024 | 16 A | 4 | 230 V | 9h | |

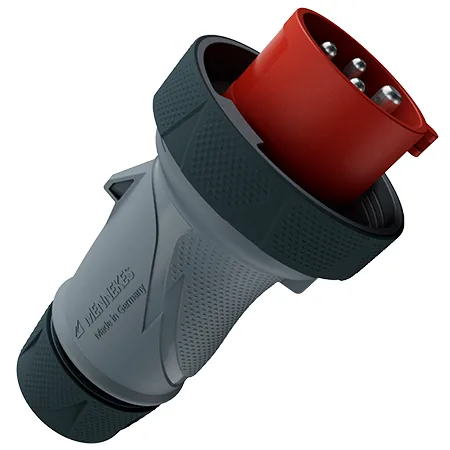

 | 13637available from 01.11.2024 | 16 A | 4 | 400 V | 6h | |
 | 13638available from 01.11.2024 | 16 A | 4 | 500 V | 7h | |
 | 13639available from 01.11.2024 | 16 A | 4 | >50–500 V · 100-300 Hz | 10h | |

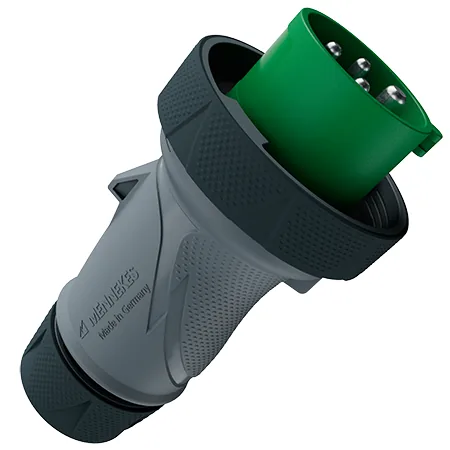

 | 13640available from 01.11.2024 | 16 A | 4 | >50–500 V · 300-500 Hz | 2h | |

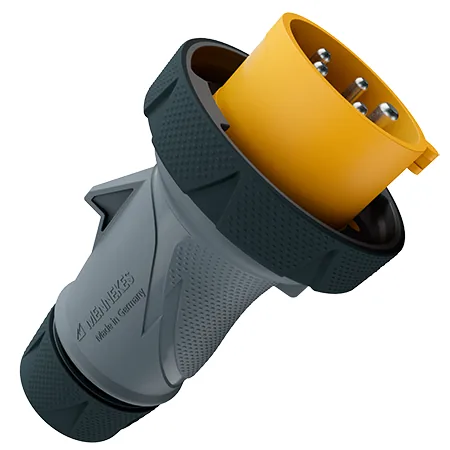

 | 13641available from 01.08.2024 | 16 A | 5 | 110 V | 4h | |
 | 13642available from 01.08.2024 | 16 A | 5 | 230 V | 9h | |

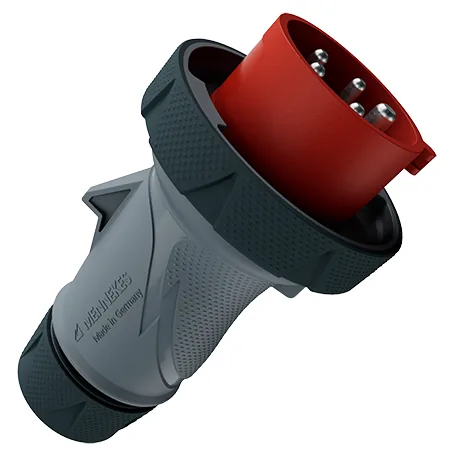

 | 13643available from 01.08.2024 | 16 A | 5 | 400 V | 6h | |
 | 13644available from 01.08.2024 | 16 A | 5 | 500 V | 7h | |
| 13645available from 01.08.2024 | 16 A | 5 | >50–500 V · 100-300 Hz | 10h | ||

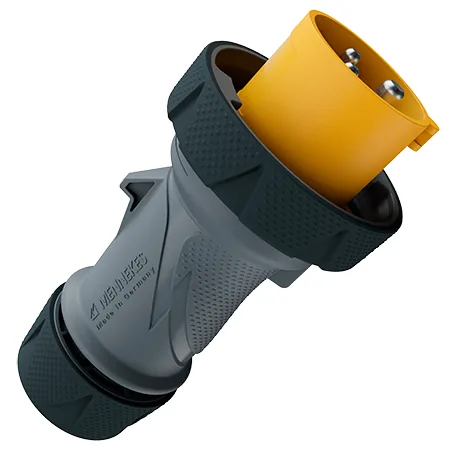

 | 13649available from 01.11.2024 | 32 A | 3 | 110 V | 4h | |
 | 13650available from 01.11.2024 | 32 A | 3 | 230 V | 6h | |
 | 13651available from 01.11.2024 | 32 A | 3 | 400 V | 9h | |
 | 13652available from 01.11.2024 | 32 A | 4 | 110 V | 4h | |
 | 13653available from 01.11.2024 | 32 A | 4 | 230 V | 9h | |
 | 13654available from 01.11.2024 | 32 A | 4 | 400 V | 6h | |

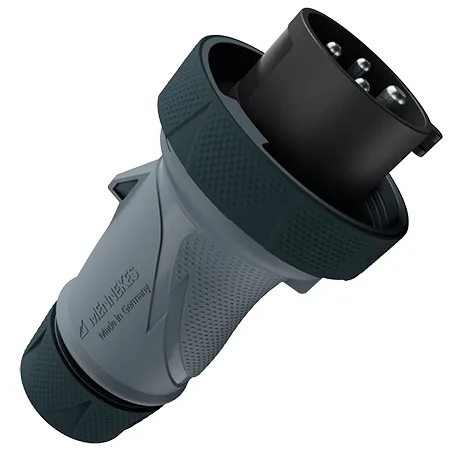

 | 13655available from 01.11.2024 | 32 A | 4 | 500 V | 7h | |
 | 13656available from 01.11.2024 | 32 A | 4 | >50–500 V · 100-300 Hz | 10h | |
 | 13657available from 01.11.2024 | 32 A | 4 | >50–500 V · 300-500 Hz | 2h | |
 | 13658available from 01.08.2024 | 32 A | 5 | 110 V | 4h | |
 | 13659available from 01.08.2024 | 32 A | 5 | 230 V | 9h | |
 | 13660available from 01.08.2024 | 32 A | 5 | 400 V | 6h | |

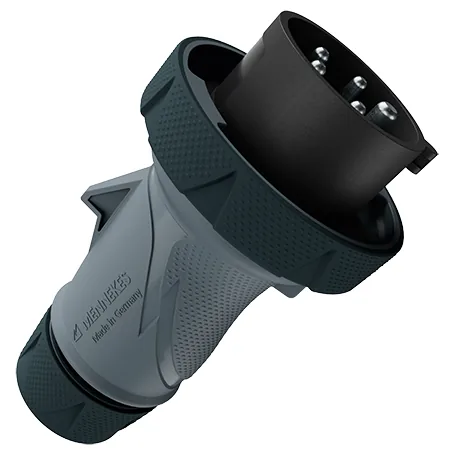

 | 13661available from 01.08.2024 | 32 A | 5 | 500 V | 7h | |
| Plug PowerTOP Xtra S with SafeCONTACT · IP54 3 | ||||||
| 13521 | 16 A | 3 | 230 V | 6h | ||
| 13522 | 16 A | 5 | 400 V | 6h | ||
| 13523 | 32 A | 5 | 400 V | 6h | ||
| Plug PowerTOP Xtra with ErgoCONTACT · IP54 20 | ||||||
| 13501available from 01.06.2024 | 16 A | 3 | 110 V | 4h | |

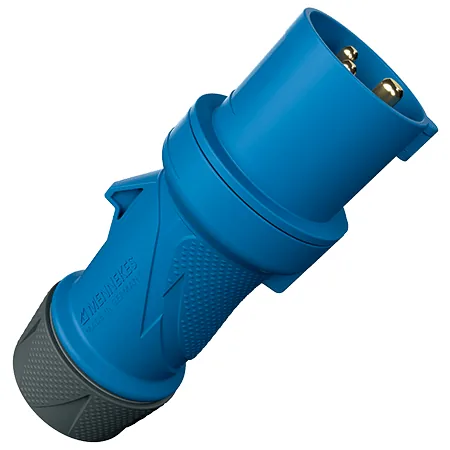

 | 13502 | 16 A | 3 | 230 V | 6h | |
| 13503available from 01.06.2024 | 16 A | 3 | 400 V | 9h | ||
| 13504available from 01.06.2024 | 16 A | 4 | 110 V | 4h | ||
| 13505available from 01.06.2024 | 16 A | 4 | 230 V | 9h | ||

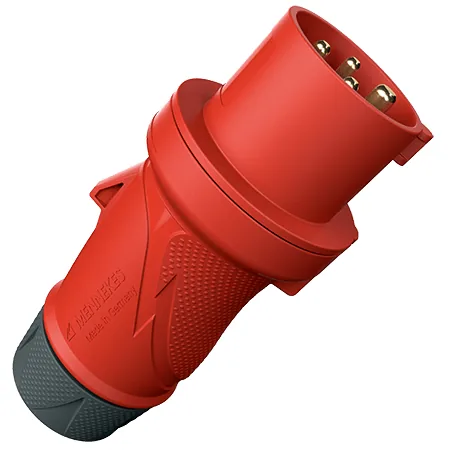

 | 13506 | 16 A | 4 | 400 V | 6h | |
| 13507available from 01.06.2024 | 16 A | 4 | 500 V | 7h | ||
| 13508available from 01.06.2024 | 16 A | 4 | >50–500 V · 100-300 Hz | 10h | ||
| 13509 | 16 A | 5 | 230 V | 9h | ||

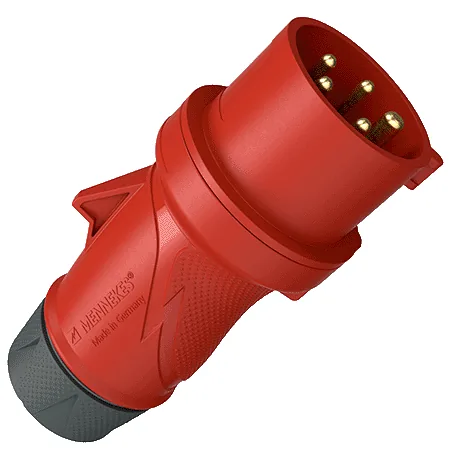

 | 13510 | 16 A | 5 | 400 V | 6h | |
| 13511 | 16 A | 5 | 500 V | 7h | ||

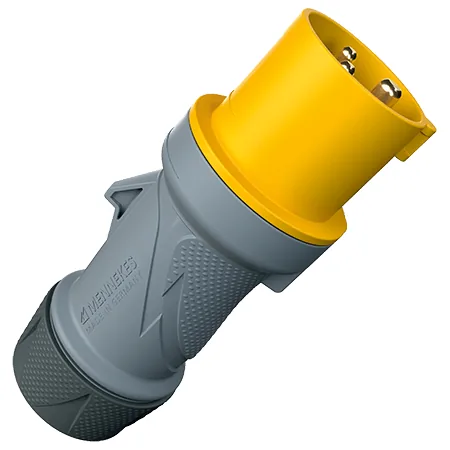

 | 13512available from 01.06.2024 | 32 A | 3 | 110 V | 4h | |
 | 13513 | 32 A | 3 | 230 V | 6h | |
| 13514available from 01.06.2024 | 32 A | 3 | 400 V | 9h | ||
| 13515available from 01.06.2024 | 32 A | 4 | 230 V | 9h | ||
 | 13516 | 32 A | 4 | 400 V | 6h | |
| 13517available from 01.06.2024 | 32 A | 4 | 500 V | 7h | ||
| 13518available from 01.06.2024 | 32 A | 4 | >50–500 V · 100-300 Hz | 10h | ||
| 13519 | 32 A | 5 | 230 V | 9h | ||
 | 13520 | 32 A | 5 | 400 V | 6h | |
| Plug PowerTOP Xtra with ErgoCONTACT · IP67 / IP69 11 | ||||||

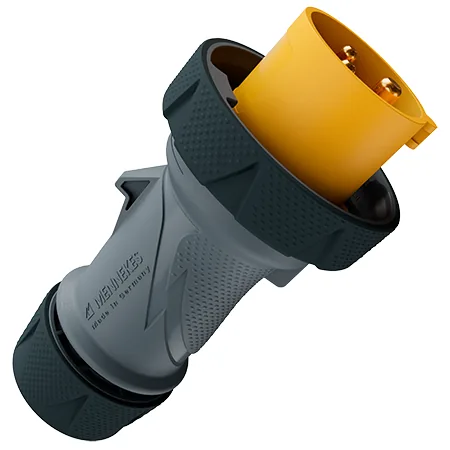

 | 13619available from 01.08.2024 | 16 A | 3 | 110 V | 4h | |

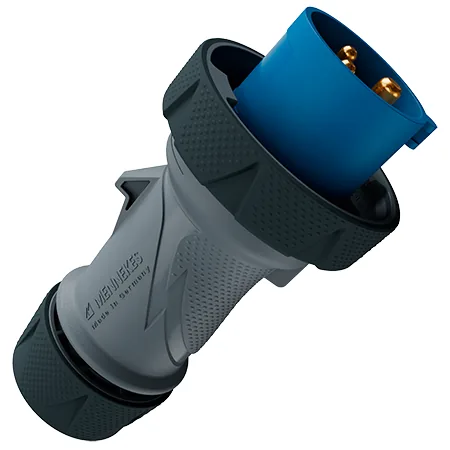

 | 13620available from 01.08.2024 | 16 A | 3 | 230 V | 6h | |
 | 13621available from 01.11.2024 | 16 A | 4 | 230 V | 9h | |
 | 13622available from 01.11.2024 | 16 A | 4 | 400 V | 6h | |
 | 13623available from 01.11.2024 | 16 A | 4 | 500 V | 7h | |

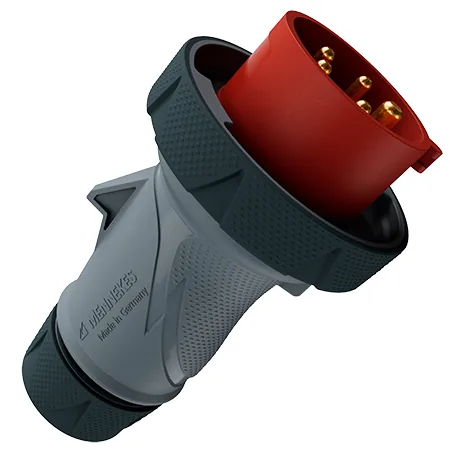

 | 13624available from 01.08.2024 | 16 A | 5 | 400 V | 6h | |

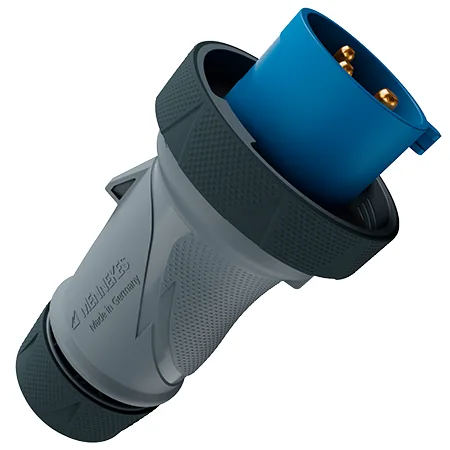

 | 13625available from 01.11.2024 | 32 A | 3 | 230 V | 6h | |
 | 13626available from 01.11.2024 | 32 A | 4 | 230 V | 9h | |

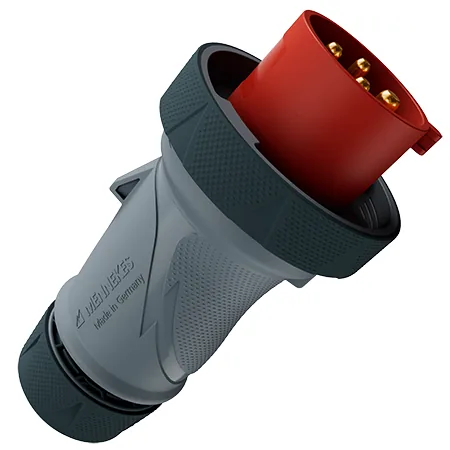

 | 13627available from 01.11.2024 | 32 A | 4 | 400 V | 6h | |
 | 13628available from 01.11.2024 | 32 A | 4 | 500 V | 7h | |

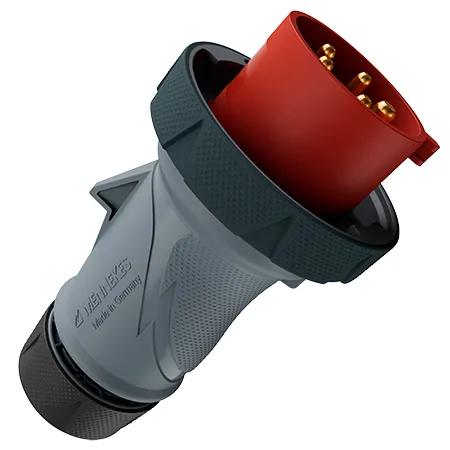

 | 13629available from 01.08.2024 | 32 A | 5 | 400 V | 6h | |
| Plug PowerTOP Xtra · IP54 7 | ||||||

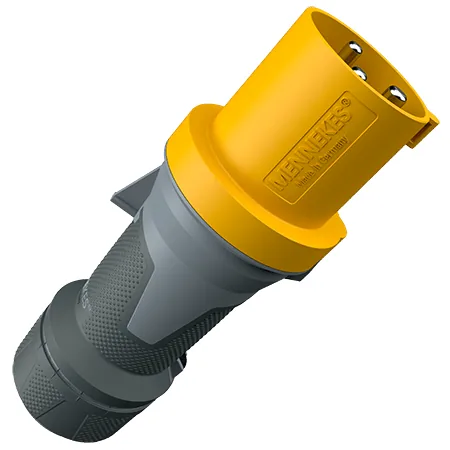

 | 13101 | 63 A | 3 | 110 V | 4h | |

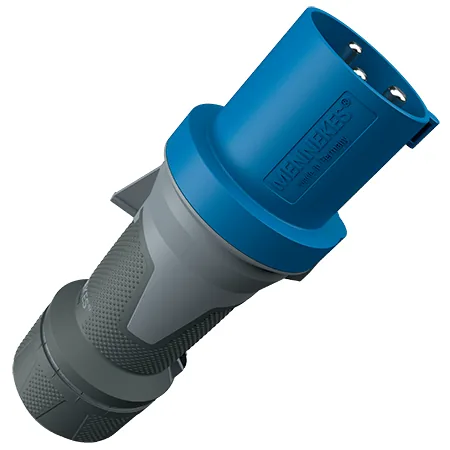

 | 13102 | 63 A | 3 | 230 V | 6h | |
 | 13105 | 63 A | 4 | 230 V | 9h | |

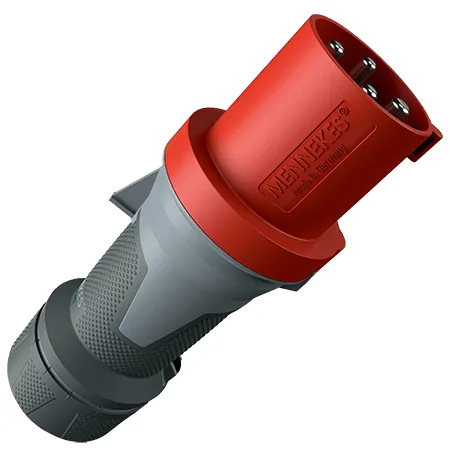

 | 13106 | 63 A | 4 | 400 V | 6h | |

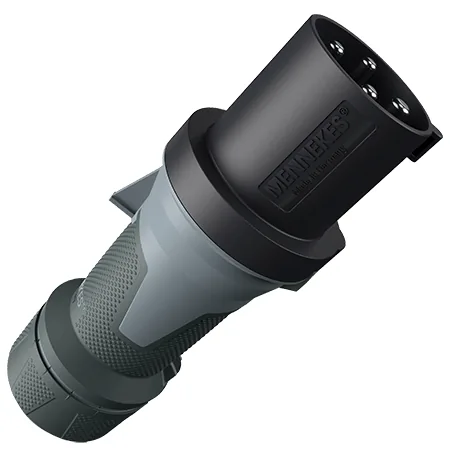

 | 13107 | 63 A | 4 | 500 V | 7h | |
 | 13111 | 63 A | 5 | 230 V | 9h | |

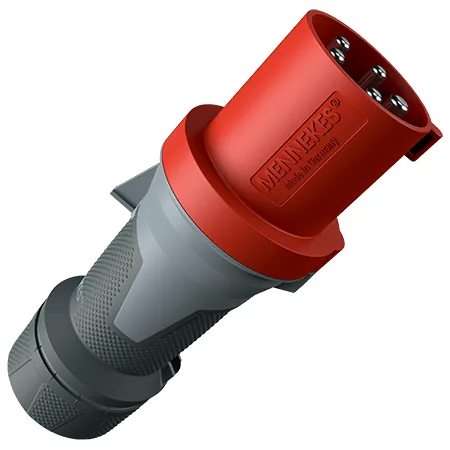

 | 13112 | 63 A | 5 | 400 V | 6h | |
| Plug PowerTOP Xtra · IP67 25 | ||||||
 | 13201 | 63 A | 3 | 110 V | 4h | |
 | 13202 | 63 A | 3 | 230 V | 6h | |
 | 13203 | 63 A | 3 | 400 V | 9h | |

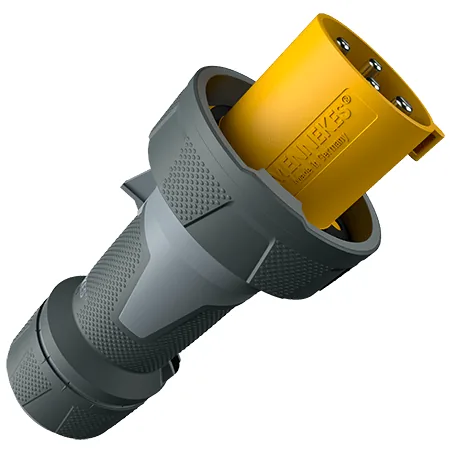

 | 13204 | 63 A | 4 | 110 V | 4h | |
 | 13205 | 63 A | 4 | 230 V | 9h | |

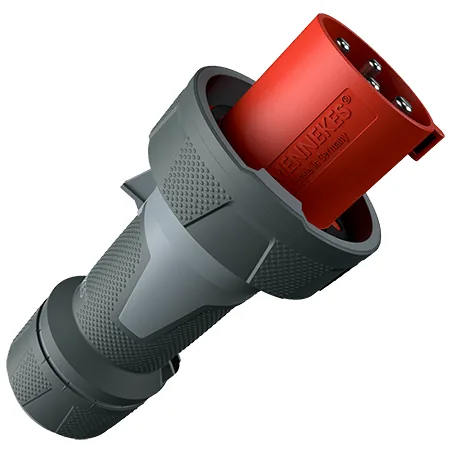

 | 13206 | 63 A | 4 | 400 V | 6h | |
 | 13207 | 63 A | 4 | 500 V | 7h | |
 | 13208 | 63 A | 4 | >50–500 V · 100-300 Hz | 10h | |

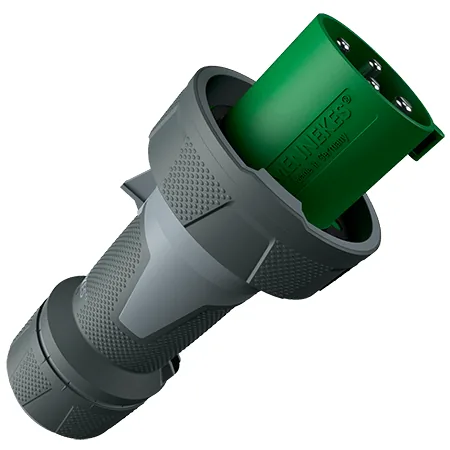

 | 13209 | 63 A | 4 | >50–500 V · 300-500 Hz | 2h | |
 | 13210 | 63 A | 5 | 110 V | 4h | |

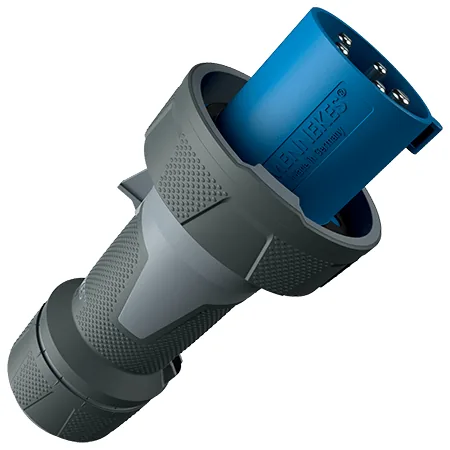

 | 13211 | 63 A | 5 | 230 V | 9h | |

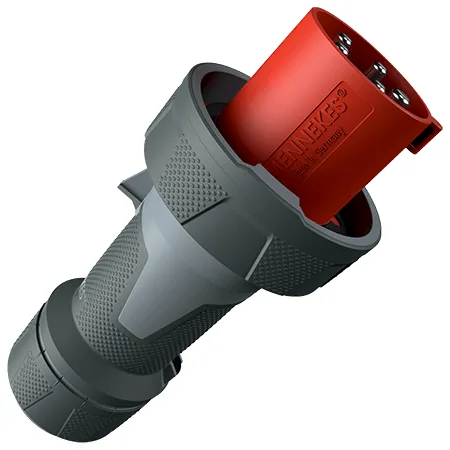

 | 13212 | 63 A | 5 | 400 V | 6h | |
 | 13213 | 63 A | 5 | 500 V | 7h | |
 | 13214 | 63 A | 5 | >50–500 V · 300-500 Hz | 2h | |
 | 13215 | 125 A | 3 | 110 V | 4h | |
 | 13216 | 125 A | 3 | 230 V | 6h | |
 | 13217 | 125 A | 4 | 110 V | 4h | |
 | 13218 | 125 A | 4 | 230 V | 9h | |
 | 13219 | 125 A | 4 | 400 V | 6h | |

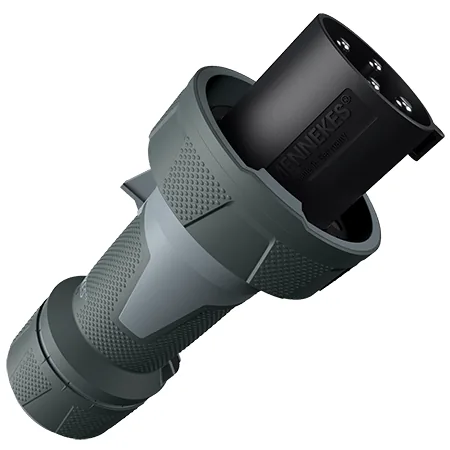

 | 13220 | 125 A | 4 | 500 V | 7h | |
 | 13223 | 125 A | 5 | 110 V | 4h | |
 | 13224 | 125 A | 5 | 230 V | 9h | |
 | 13225 | 125 A | 5 | 400 V | 6h | |
 | 13226 | 125 A | 5 | 500 V | 7h | |
 | 13227 | 125 A | 5 | >50–500 V · 300-500 Hz | 2h | |
Not sure which part you need? Send us the equipment and rating on WhatsApp and we will recommend the exact part.
No part numbers match those filters.

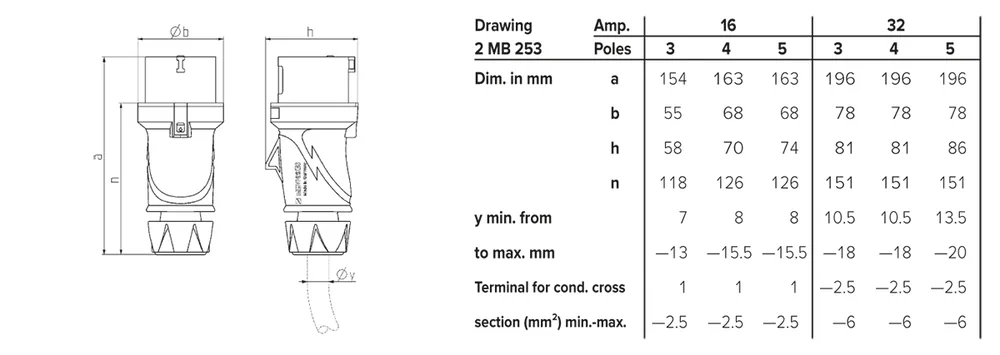

Dimensions
Common questions
What do the position and IP rating mean for Mennekes plugs — PowerTOP Xtra?
Position (the 'h' value) is the clock position of the keyway and earthing contact — a plug and receptacle only mate when their positions match, so quote the position along with the part number. IP54 / IP67 / IP69 is the enclosure protection class (IEC 60529): the first digit covers solid objects and dust, the second covers water.
How do I order a Mennekes part from this range?
Pick the part number from the table (ampere, poles, voltage and position), then request a quotation. There is no minimum order — single pieces and project quantities are quoted the same way, and we confirm availability and price within 24 hours.
Are these genuine Mennekes products?
Yes. Yash Enterprise is an authorized Mennekes distributor; every part is sourced through the principal brand, with the manufacturer's standard warranty passed through.
