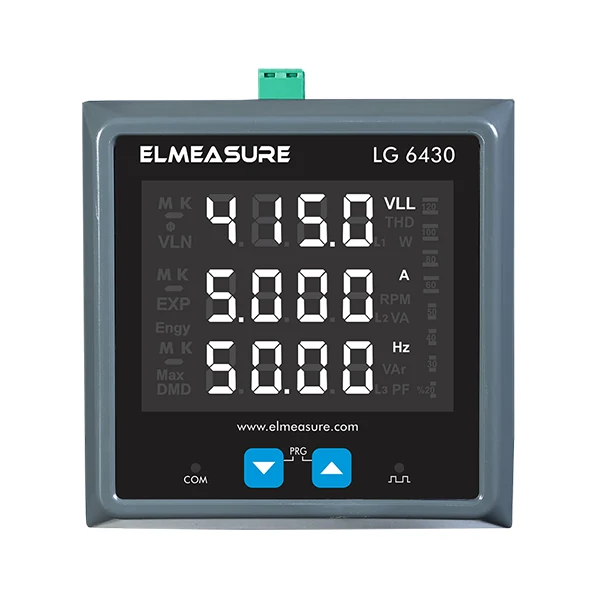

Elmeasure Multifunction meters — LG 6400 series (IP51)
Multifunction meters — LG 6400 series from Elmeasure, protection IP51. 8 part numbers listed — supplied by Yash Enterprise, an authorized Elmeasure distributor in Mumbai.
Key features
- 3-row LED display, 8 integrated digits, 4 instantaneous digits
- True RMS, 128 samples per cycle, 4-quadrant power and energy
- Rated voltage 50–600 V LL, rated current 20 mA – 6 A, frequency 45–65 Hz
- 1P+N, 3P and 3P+N systems
- Auxiliary supply 80–300 V AC/DC
- Modbus RTU over RS-485, optically isolated
- IP51 (IP54 front optional)
- Operating temperature −10 °C to +55 °C
All part numbers (8)
Ampere, poles, voltage and position for every variant in this range. Parts are supplied on request. We confirm availability and price within 24 hours.
How the versions in this range differ
| Listed in the catalogue | LG 6400 MFM · IP513 parts | LG 6430 MFM · IP511 parts | LG 6435 MFM · IP514 parts |
|---|---|---|---|
| 100 A hanging CT (direct measurement) | ● | ● | |
| Accuracy class 0.5S | ● | ● | |
| RS-485 communication (Modbus RTU) | ● | ● | |
| 2 digital output(s) | ● | ||
| Any three of the seven parameter groups can be configured (note on the data sheet) | ● | ||
| Optional demand W/VA/VAR and maximum demand, class 0.5S and class 0.2 | ● |
● = listed in the manufacturer catalogue for that version; a blank cell means it is not listed there — ask us if you need to confirm a feature. Rating and IP differences are shown in each heading and in the table below.
| Part no. | Quote | ||
|---|---|---|---|
| LG 6400 MFM · IP51 3 | |||
| LG6400P11000 | ||
| LG6400P11A10 | ||
| LG6400P31000 | ||
| LG 6430 MFM · IP51 1 | |||
 | LG6430P10000 | ||
| LG 6435 MFM · IP51 4 | |||
| LG6435P11000 | ||
| LG6435P11002 | ||
 | LG6435P11A10 | ||
| LG6435P31000 | ||
Not sure which part you need? Send us the equipment and rating on WhatsApp and we will recommend the exact part.
No part numbers match those filters.
Common questions
What does the IP51 rating mean?
IP51 is the enclosure protection class (IEC 60529): the first digit covers solid objects and dust, the second covers water.
How do I order Elmeasure multifunction meters?
Pick the part from the list, then request a quotation. There is no minimum order — single pieces and project quantities are quoted the same way, and we confirm availability and price within 24 hours.
Are these genuine Elmeasure products?
Yes. Yash Enterprise is an authorized Elmeasure distributor; every part is sourced through the principal brand, with the manufacturer's standard warranty passed through.
