Elmeasure MCCBs — EWave microprocessor LSIG
MCCBs — EWave microprocessor LSIG from Elmeasure, rated 160–1250 A at 690 V, conforming to IS/IEC 60947-2. 12 part numbers listed — supplied by Yash Enterprise, an authorized Elmeasure distributor in Mumbai.
Key features
- Ics = 100% of Icu
- Adjustable overload setting 0.4 to 1.0 × In
- Adjustable short-circuit setting 1.5 to 8 × In
- In-built ground fault protection from 20% to 50% of In
- In-built instantaneous protection against short circuits
- Adjustable neutral overload protection from 50–150% of Ir
- Variable trip class (LSIG)
- Rated operational voltage up to 690 V AC
All part numbers (12)
Ampere, poles, voltage and position for every variant in this range. Parts are supplied on request. We confirm availability and price within 24 hours.
How the versions in this range differ
| Listed in the catalogue | MCCB EWave E3Z 160DM1 parts | MCCB EWave E4Z 160DM1 parts | MCCB EWave E3N 250DM1 parts | MCCB EWave E4N 250DM1 parts | MCCB EWave E3N 400DM1 parts | MCCB EWave E4N 400DM1 parts | MCCB EWave E3N 630DM1 parts | MCCB EWave E4N 630DM1 parts | MCCB EWave E3N 1250NM2 parts | MCCB EWave E4N 1250NM2 parts |
|---|---|---|---|---|---|---|---|---|---|---|
| Breaking capacity 36 kA (up to 100 kA on request) | ● | ● | ● | ● | ● | ● | ● | ● | ||
| Rated operational voltage up to 690 V AC | ● | ● | ● | ● | ● | ● | ● | ● | ||
| Breaking capacity 50 kA (up to 100 kA on request) | ● | ● | ||||||||
| Microprocessor based MCCB with LSIG protection (setting 100–250 A) | ● | ● | ||||||||
| Microprocessor based MCCB with LSIG protection (setting 160–400 A) | ● | ● | ||||||||
| Microprocessor based MCCB with LSIG protection (setting 250–630 A) | ● | ● | ||||||||
| Microprocessor based MCCB with LSIG protection (setting 400–1000 A) | ● | ● | ||||||||
| Microprocessor based MCCB with LSIG protection (setting 40–160 A) | ● | ● | ||||||||
| Microprocessor based MCCB with LSIG protection (setting 500–1250 A) | ● | ● |
● = listed in the manufacturer catalogue for that version; a blank cell means it is not listed there — ask us if you need to confirm a feature. Rating and IP differences are shown in each heading and in the table below.
| Part no. | Ampere | Poles | Voltage | Quote | |
|---|---|---|---|---|---|
| MCCB EWave E3Z 160DM 1 | |||||
| E3Z160DM0160 | 160 A | 3 | ||
| MCCB EWave E4Z 160DM 1 | |||||
| E4Z160DM0160 | 160 A | 4 | ||
| MCCB EWave E3N 250DM 1 | |||||
 | E3N250DM0250 | 250 A | 3 | 690 V | |

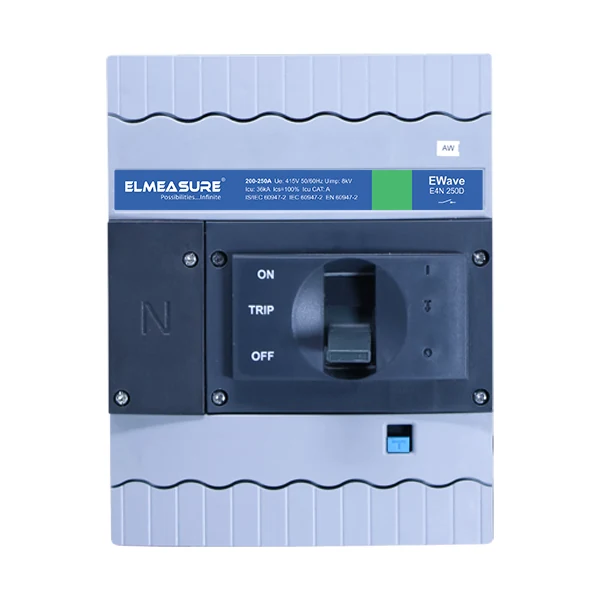

| MCCB EWave E4N 250DM 1 | |||||
 | E4N250DM0250 | 250 A | 4 | 690 V | |
| MCCB EWave E3N 400DM 1 | |||||
| E3N400DM0400 | 400 A | 3 | 690 V | |
| MCCB EWave E4N 400DM 1 | |||||
| E4N400DM0400 | 400 A | 4 | 690 V | |

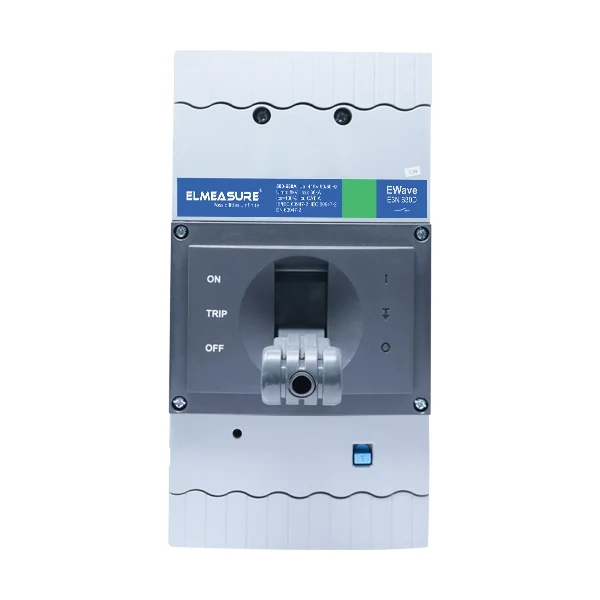

| MCCB EWave E3N 630DM 1 | |||||
 | E3N630DM0630 | 630 A | 3 | 690 V | |

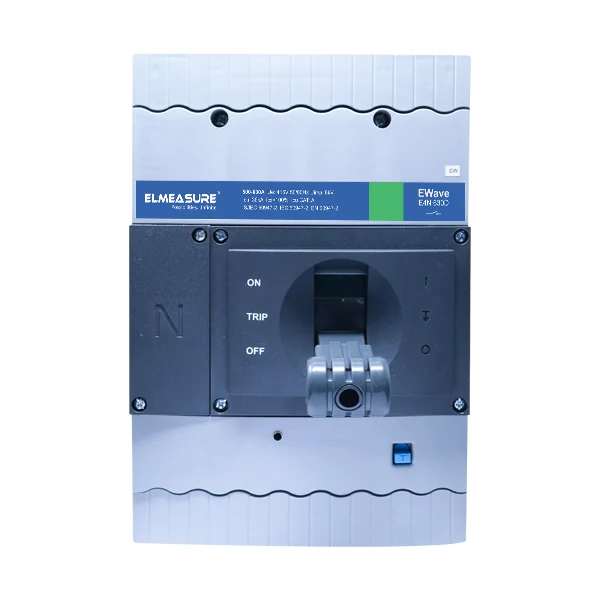

| MCCB EWave E4N 630DM 1 | |||||
 | E4N630DM0630 | 630 A | 4 | 690 V | |

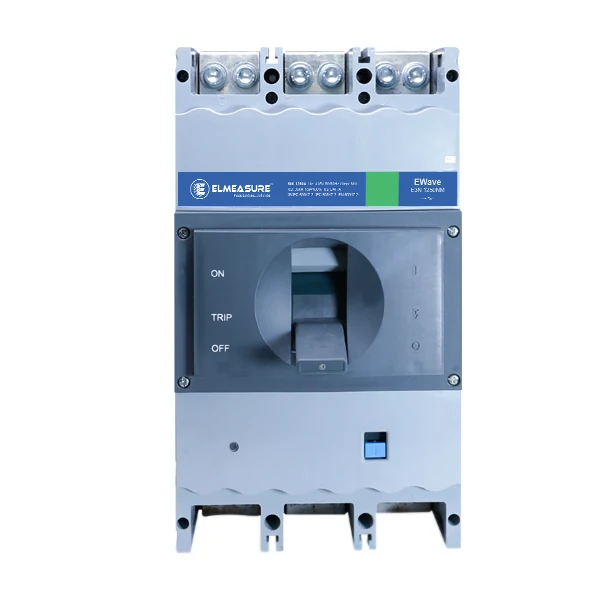

| MCCB EWave E3N 1250NM 2 | |||||
 | E3N1250NM1000 | 1000 A | 3 | 690 V | |
| E3N1250NM1250 | 1250 A | 3 | 690 V | |

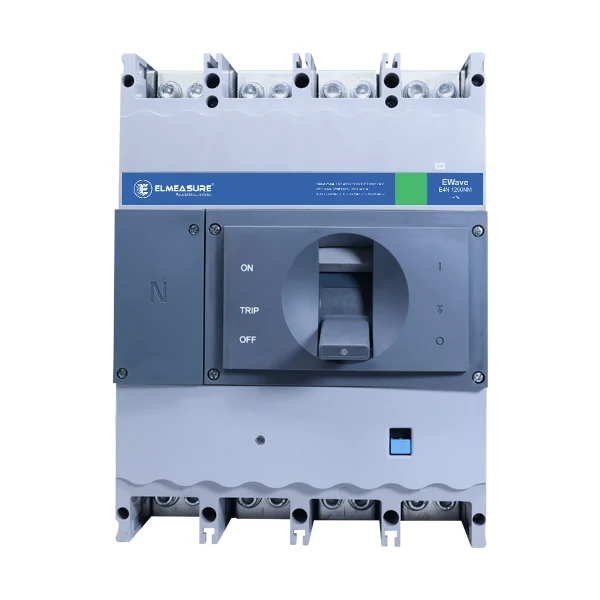

| MCCB EWave E4N 1250NM 2 | |||||
 | E4N1250NM1000 | 1000 A | 4 | 690 V | |
| E4N1250NM1250 | 1250 A | 4 | 690 V | |
Not sure which part you need? Send us the equipment and rating on WhatsApp and we will recommend the exact part.
No part numbers match those filters.
Common questions
How do I order Elmeasure MCCBs?
Pick the part from the list, then request a quotation. There is no minimum order — single pieces and project quantities are quoted the same way, and we confirm availability and price within 24 hours.
Are these genuine Elmeasure products?
Yes. Yash Enterprise is an authorized Elmeasure distributor; every part is sourced through the principal brand, with the manufacturer's standard warranty passed through.
