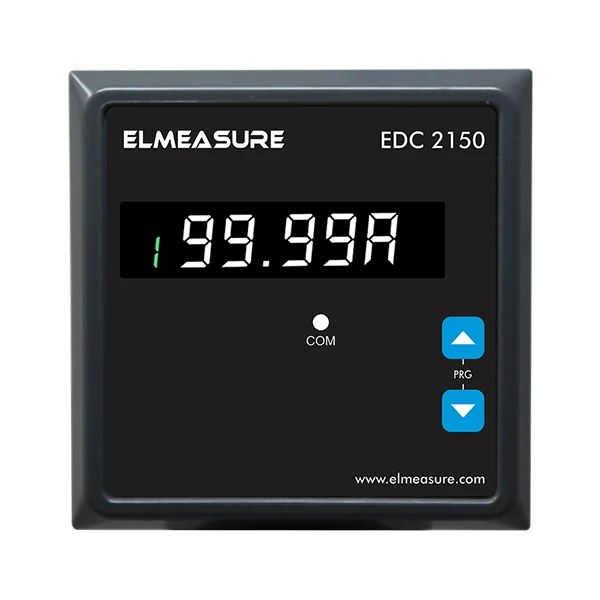

Elmeasure DC energy meters — EDC 2150 single channel (IP51)
DC energy meters — EDC 2150 single channel from Elmeasure, protection IP51. 3 part numbers listed — supplied by Yash Enterprise, an authorized Elmeasure distributor in Mumbai.
Key features
- Measures volts, amps, watts, load hours and energy
- Voltage input 10 V to 1000 V DC (48 V default
- 100, 300, 800 or 1000 V factory set)
- 1 voltage channel and 1 current channel
- Bi-directional current measurement
- Optional RS-485 Modbus RTU
- Auxiliary supply 15 to 60 V DC
- Class 1.0 FS (0.5 FS optional)
All part numbers (3)
Ampere, poles, voltage and position for every variant in this range. Parts are supplied on request. We confirm availability and price within 24 hours.
| Part no. | Description | Quote | |
|---|---|---|---|
| EDC 2150 Single Channel DC Energy Meter · IP51 1 | |||
 | ED2150P11760 | EDC 2150 Single Channel DC Energy Meter, Class 1.0, RS485, 75mV Shunt operated | |
| EDC 2150D Single Channel DC Energy Meter · IP51 2 | |||
| ED2150D11760 | EDC 2150D Single Channel DC Energy Meter, Class 1.0, RS485, 75mV Shunt operated | |
| ED2150D1176C | EDC 2150D Single Channel DC Energy Meter, Cl 1.0, RS485, 75mV Shunt operated, custom V DC input | |
Not sure which part you need? Send us the equipment and rating on WhatsApp and we will recommend the exact part.
No part numbers match those filters.
Common questions
What does the IP51 rating mean?
IP51 is the enclosure protection class (IEC 60529): the first digit covers solid objects and dust, the second covers water.
How do I order Elmeasure DC energy meters?
Pick the part from the list, then request a quotation. There is no minimum order — single pieces and project quantities are quoted the same way, and we confirm availability and price within 24 hours.
Are these genuine Elmeasure products?
Yes. Yash Enterprise is an authorized Elmeasure distributor; every part is sourced through the principal brand, with the manufacturer's standard warranty passed through.
