Elmeasure Basic meters — SL VAF meters (IP51)
Basic meters — SL VAF meters from Elmeasure, protection IP51. 9 part numbers listed — supplied by Yash Enterprise, an authorized Elmeasure distributor in Mumbai.
Key features
- True RMS
- Simultaneous sampling of volts and amps
- Alerts for 120% over voltage, 80% under voltage and 100% over current in 3-row models
- RPM measurement for generators (SL 1300)
- Modbus RTU RS-485 (SL 1300 only)
- Accuracy class 1.0
- 5 A CT secondary input (inbuilt)
All part numbers (9)
Ampere, poles, voltage and position for every variant in this range. Parts are supplied on request. We confirm availability and price within 24 hours.
How the versions in this range differ
| Listed in the catalogue | SL 1300 VAF Meter +PF · IP515 parts | SL 1330 Three Phase Ammeter · IP511 parts | SL 1340 Three Phase Voltmeter · IP511 parts | SL 4300 VAF Meter + W · IP512 parts |
|---|---|---|---|---|
| 5 A CT secondary input (inbuilt) | ● | ● | ● | |
| RS-485 communication (Modbus RTU) | ● | ● | ||
| 100 A hanging CT (direct measurement) | ● | |||
| 60 A hanging CT (direct measurement) | ● | |||
| Accuracy class 0.5 | ● |
● = listed in the manufacturer catalogue for that version; a blank cell means it is not listed there — ask us if you need to confirm a feature. Rating and IP differences are shown in each heading and in the table below.
| Part no. | Description | Quote | |
|---|---|---|---|

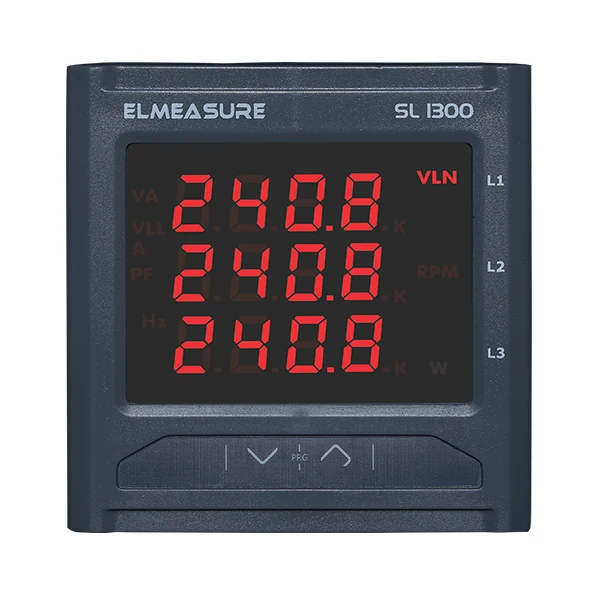

| SL 1300 VAF Meter +PF · IP51 5 | |||
| SL1300S10000 | SL 1300 VAF Meter +PF, Class 1.0, 5A Inbuilt | |
 | SL1300S10610 | SL 1300 VAF Meter +PF, Class 1.0, 60A Hanging CT | |
| SL1300S10A10 | SL 1300 VAF Meter +PF, Class 1.0, 100A Hanging CT | |
| SL1300S11000 | SL 1300 VAF Meter +PF, Class 1.0, 5A Inbuilt, RS485 | |
| SL1300S20000 | SL 1300 VAF Meter +PF, Class 0.5, 5A Inbuilt | |
| SL 1330 Three Phase Ammeter · IP51 1 | |||
| SL1330S10000 | SL 1330 Three Phase Ammeter,3 Row, Class 1.0, 5A Inbuilt | |

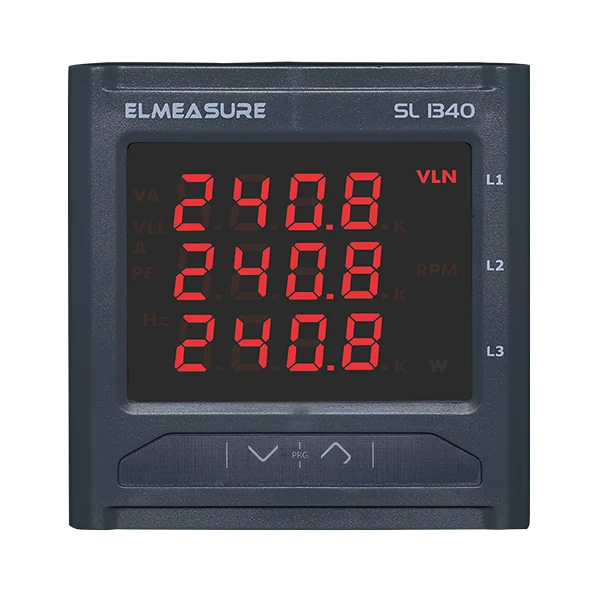

| SL 1340 Three Phase Voltmeter · IP51 1 | |||
 | SL1340S10000 | SL 1340 Three Phase Voltmeter,3 Row, Class 1.0 | |

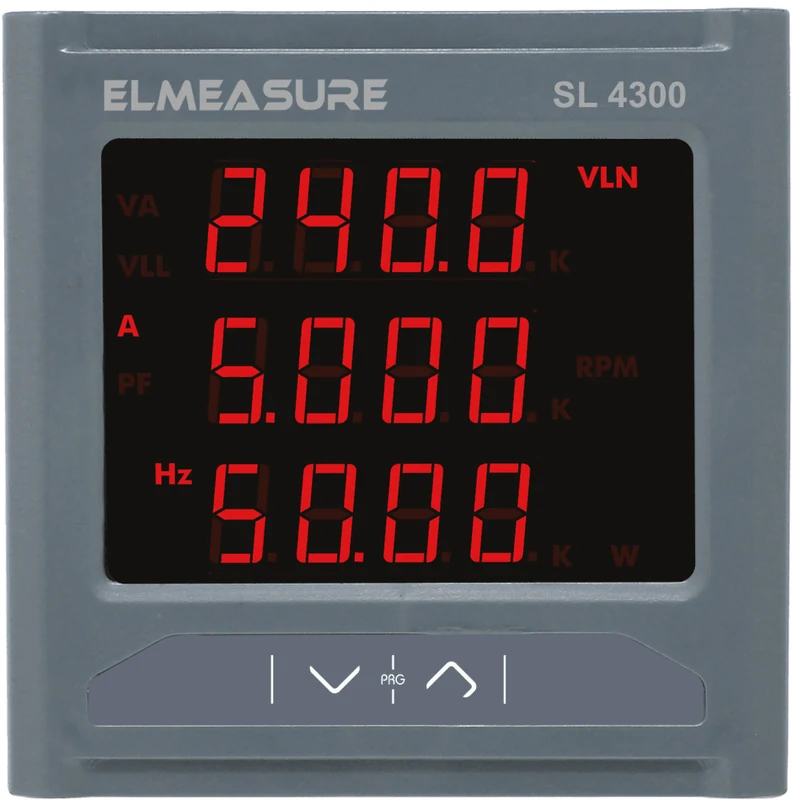

| SL 4300 VAF Meter + W · IP51 2 | |||
 | SL4300S10000 | SL 4300 VAF Meter + W, VA, PF & VAR, Class 1.0, 5A Inbuilt | |
| SL4300S11000 | SL 4300 VAF Meter + W, VA, PF & VAR, Class 1.0, RS485, 5A Inbuilt | |
Not sure which part you need? Send us the equipment and rating on WhatsApp and we will recommend the exact part.
No part numbers match those filters.
Common questions
What does the IP51 rating mean?
IP51 is the enclosure protection class (IEC 60529): the first digit covers solid objects and dust, the second covers water.
How do I order Elmeasure basic meters?
Pick the part from the list, then request a quotation. There is no minimum order — single pieces and project quantities are quoted the same way, and we confirm availability and price within 24 hours.
Are these genuine Elmeasure products?
Yes. Yash Enterprise is an authorized Elmeasure distributor; every part is sourced through the principal brand, with the manufacturer's standard warranty passed through.
