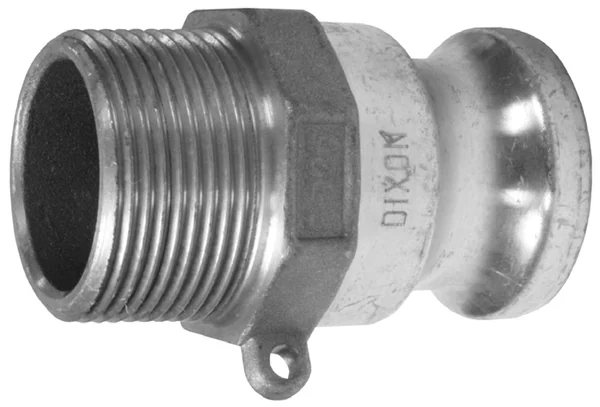

Dixon Camlock Type F — male adaptor × male thread

Key features

Max WP psi: 250

All part numbers (76)

Size, material and part number for every item in this range. Parts are supplied on request. We confirm availability and price within 24 hours.

	Part no.	Size	Material
Aluminium Die Cast 8
	ALDC075F	20 mm	Aluminium Die Cast
	ALDC100F	25 mm	Aluminium Die Cast
	ALDC125F	32 mm	Aluminium Die Cast
	ALDC150F	40 mm	Aluminium Die Cast
	ALDC200F	50 mm	Aluminium Die Cast
	ALDC250F	65 mm	Aluminium Die Cast
	ALDC300F	75 mm	Aluminium Die Cast
	ALDC400F	100 mm	Aluminium Die Cast
Aluminium Sand Cast 11
	AL050F	15 mm	Aluminium Sand Cast
	AL075F	20 mm	Aluminium Sand Cast
	AL100F	25 mm	Aluminium Sand Cast
	AL125F	32 mm	Aluminium Sand Cast
	AL150F	40 mm	Aluminium Sand Cast
	AL200F	50 mm	Aluminium Sand Cast
	AL250F	65 mm	Aluminium Sand Cast
	AL300F	75 mm	Aluminium Sand Cast
	AL400F	100 mm	Aluminium Sand Cast
	AL500F	125 mm	Aluminium Sand Cast
	AL600F	150 mm	Aluminium Sand Cast
Brass 8
	BRSS075F	20 mm	Brass
	BRSS100F	25 mm	Brass
	BRSS125F	32 mm	Brass
	BRSS150F	40 mm	Brass
	BRSS200F	50 mm	Brass
	BRSS250F	65 mm	Brass
	BRSS300F	75 mm	Brass
	BRSS400F	100 mm	Brass
Bronze Sand Cast 11
	BR050F	15 mm	Bronze Sand Cast
	BR075F	20 mm	Bronze Sand Cast
	BR100F	25 mm	Bronze Sand Cast
	BR125F	32 mm	Bronze Sand Cast
	BR150F	40 mm	Bronze Sand Cast
	BR200F	50 mm	Bronze Sand Cast
	BR250F	65 mm	Bronze Sand Cast
	BR300F	75 mm	Bronze Sand Cast
	BR400F	100 mm	Bronze Sand Cast
	BR500F	125 mm	Bronze Sand Cast
	BR600F	150 mm	Bronze Sand Cast
NPT thread · Aluminium 7
	1520-F-AL	1½ x 2 inch	Aluminium
	2015-F-AL	2 x 1½ inch	Aluminium
	2030-F-AL	2 x 3 inch	Aluminium
	3015-F-AL	3 x 1½ inch	Aluminium
	3020-F-AL	3 x 2 inch	Aluminium
	3040-F-AL	3 x 4 inch	Aluminium
	4030-F-AL	4 x 3 inch	Aluminium
NPT thread · Stainless Steel 4
	2015-F-SS	2 x 1½ inch	Stainless Steel
	3015-F-SS	3 x 1½ inch	Stainless Steel
	3020-F-SS	3 x 2 inch	Stainless Steel
	4030-F-SS	4 x 3 inch	Stainless Steel

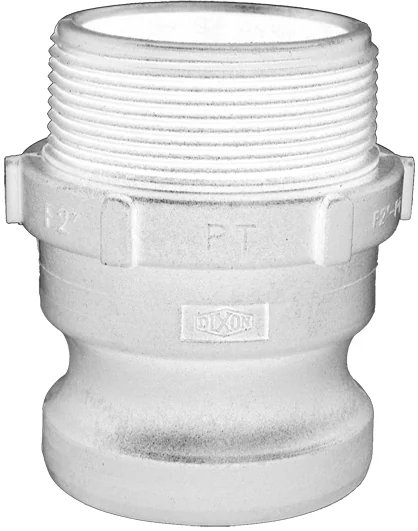

Polypropylene BSP 9
	PPF050	15 mm	Polypropylene BSP
	PPF075	20 mm	Polypropylene BSP
	PPF100	25 mm	Polypropylene BSP
	PPF125	32 mm	Polypropylene BSP
	PPF150	40 mm	Polypropylene BSP
	PPF150125	40X32 mm	Polypropylene BSP
	PPF200	50 mm	Polypropylene BSP
	PPF300	75 mm	Polypropylene BSP
	PPF400	100 mm	Polypropylene BSP
Polypropylene NPT 7
	PPF050-NPT	15 mm	Polypropylene NPT
	PPF075-NPT	20 mm	Polypropylene NPT
	PPF100-NPT	25 mm	Polypropylene NPT
	PPF125-NPT	32 mm	Polypropylene NPT
	PPF200-NPT	50 mm	Polypropylene NPT
	PPF300-NPT	75 mm	Polypropylene NPT
	PPF400-NPT	100 mm	Polypropylene NPT
Stainless Steel 11
	SS050F	15 mm	Stainless Steel
	SS075F	20 mm	Stainless Steel
	SS100F	25 mm	Stainless Steel
	SS125F	32 mm	Stainless Steel
	SS150F	40 mm	Stainless Steel
	SS200F	50 mm	Stainless Steel
	SS250F	65 mm	Stainless Steel
	SS300F	75 mm	Stainless Steel
	SS400F	100 mm	Stainless Steel
	SS500F	125 mm	Stainless Steel
	SS600F	150 mm	Stainless Steel

Not sure which part you need? Send us the equipment and rating on WhatsApp and we will recommend the exact part.

Common questions

Which sizes and materials does the Dixon camlock Type F — male adaptor × male thread range come in?

This range has 76 part numbers in 19 sizes, in Aluminium, Stainless Steel, Aluminium Sand Cast, Aluminium Die Cast, Bronze Sand Cast, Brass, Polypropylene BSP and Polypropylene NPT. Every part number is listed in the table above — filter by size or material, or search by part number.

How do I order Dixon camlock Type F — male adaptor × male thread?

Pick the part from the list, then request a quotation. There is no minimum order — single pieces and project quantities are quoted the same way, and we confirm availability and price within 24 hours.

Are these genuine Dixon products?

Yes. Yash Enterprise is an authorized Dixon distributor; every part is sourced through the principal brand, with the manufacturer's standard warranty passed through.
